Map34 DS-0 Software Mapping Tool for Loop AM3440

Interactive Graphical Mapping Software for the AM3440 Saves hours of time Visual GUI mapping Export/import map to and from spreadsheets Change from CAS OFF to CAS ON, "on-the-fly" Uses SNMP v1 or SNMP v3 Operates with current versions of Windows and back to XP Unlimited number of users per AM3440 PCs can have multiple instances of the Map34 mapping software running simultaneously Maps all 4 AM3440 maps Great productivity companion to the AM3440 serial/telnet console interface

Features Description Specifications How To Order Installation How it Works... Videos, Slide Shows, Description Download Link for Map-34 Software Download the Software License Information Document. Download the Manual

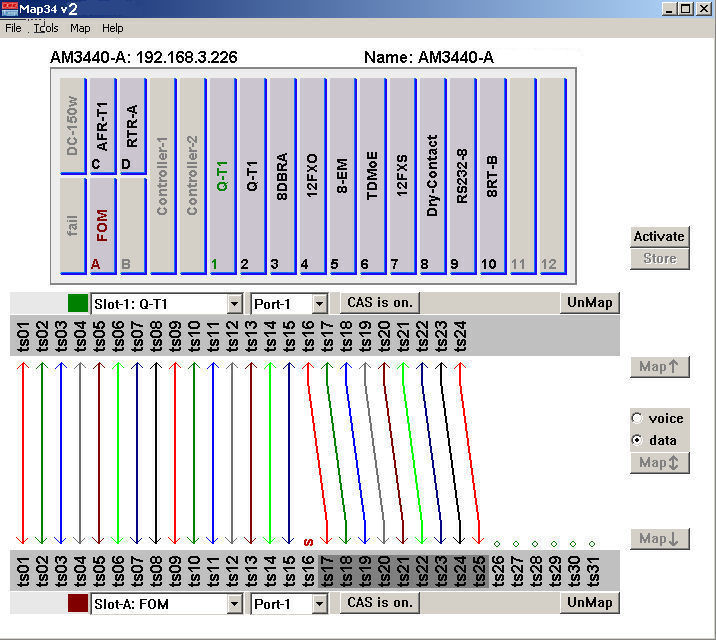

Graphical Interface Screen

DESCRIPTION

MAP34 software saves hours of time and reduces AM3440 mapping errors by presenting the mapping in visual terms.

The AM3440 uses a serial/Telnet terminal console to configure the system, feature cards and Time Slot Interchange (TSI) mapping. Map34 software is an intuitive and easy to learn productivity tool that is a “must have” companion for anyone mapping the AM3440.

Map34 uses a simple highlight and click approach to replace dozens of key strokes required to map a DS-0. One or more DS-0s are mapped with a single click on the “Map” button. When the map is created, the links between the DS-0s are displayed on the screen. Map34 increases the speed and accuracy of AM3440 mapping.

Map34 allows the user to map any or all of the 4 - AM3440 maps. The AM3440 Ethernet interface allows mapping local or remote AM3440s. For secure operation, the AM3440 supports inband mapping over the TDM backbone plus SSH Telnet and SNMP v3.

Map34 provides efficient visual mapping for the AM3440. It also includes documentation capability using comma delimited (csv) or text (txt) export to spreadsheets and word processing documents as well as the ability to push map configurations from a spreadsheet into the AM3440.

Map34 is licensed per AM3440 and its primary (and if present, redundant) controller. Map34 and the license files for AM3440s can be distributed to an unlimited number of Windows workstation PCs.

Multiple copies of Map34 can run simultaneously. This allows a single work station to work with the maps of multiple AM3440s at one time.

SPECIFICATIONS

• Licensed per AM3440 chassis and controller, by serial number. A license key is provided per each AM3440 controller serial number.
• Runs on MS Windows from the latest version back to XP
• The Map34 software and key file(s) may be distributed to an unlimited number of PCs
• Software is distributed on a CD ROM
• PCs can run multiple instances of the Map34 software to connect to different AM3440s simultaneously
• Map34 uses SNMP v1 or SNMP v3
• Maps any of the 4 possible AM3440 maps
• Provides DS-0 mapping documentation, export in comma delimited (csv) format (for spreadsheet use) or text (txt) format
• Import a cross connect map into an AM3440 from csv spreadsheet files

Installation

The MAP34 software is suppliled on a CDROM. Each AM3440 card license is authorized using a unique software key supplied by DCB. The software is installed on a PC using a Windows installer program. PCs may run multiple instances of the Map34 mapping software simultaneously

Download the License Information Document.

How It Works

Using drag and drop along with click buttons, DS0 mapping is quickly added, modified, or deleted from the Am3440.

Select the two inteface slots from drop-down selection boxes.

Click buttons allow for Activate, Store, Clear, Voice/Data, Map, and Unmap.

Drag over time slots on one interface slot to map them to the other interface. Highlighted time-slots may be unmaped.

Watch Map34 in use in one of these introductory or training videos. These are available both on Youtube and as a direct download from here.

Youtube Links:

Map34 -Turn CAS Off to On Automatically withouta total reconfiguration.

Clear some or all tsi map.

Entering License keys.

Map34 map export import

Map34 main screen features reviewed.

Map a T1 to a FOM card.

ULSR mapping

1 to N Multicast AM3440 mapping using Map34.

Using two or more Map34 windows simultaneous to convigure multiple AM3440s.

Using the serial/telnet console with an AM3440, an introduction.

How to create a license file (.lcf) when the AM3440 is not connected.

Manipulating a license file (.lcf) outside of the Map34 program.

Direct Download Links:

Map34 in operation mapping an AM3440. This is a great overview video.

Map34 compared to serial_telnet mapping. See how much time you'll save.

Map34 -Turn CAS Off to On Automatically withouta total reconfiguration.

Clear some or all tsi map.

Entering License keys.

Map34 map export import

Map34 main screen features reviewed.

Map a T1 to a FOM card.

ULSR mapping.

1 to N Multicast AM3440 mapping using Map34.

Using two or more Map34 windows simultaneous to convigure multiple AM3440s.

Using the serial/telnet console with an AM3440, an introduction.

How to create a license file (.lcf) when the AM3440 is not connected.

Since Map34 was originally developed to assist DCB's AM3440 customers, the price is lowest for AM3440 units purchased from DCB.

Questions? Phone us toll free at 800-432-2638 Due to the nature of this product, We prefer that you phone us and discuss your application prior to ordering. Please contact DCB for discounts on 50 or more copies of Map34. Please include the serial number(s) of your controller cards in the comments section during the checkout process
Item Number	Description	Price Each	Buy Now!
MAP34	Map34 Software bundled with AM3440 purchased from DCB - 1 to 5 units.	$ 250	Qty: 0 1 2 3 4 5
Map34-qty	Map34 Software bundled with AM3440 purchased from DCB - 6 or more units	$ 200	Qty: 0 6 7 8 9
Map34-2	Map34 License key for redundant controller in a Licensed AM3440 (from any source, no quantity discounts)	$ 10	Qty: 0 1 2 3 4 5
MAP34-NonDCB	Map34 Software for one AM3440 that was not purchased from DCB - 1 to 5 units. Requires a DCB support contract for Map34 and the AM3440 unit support. DCB, per agreement with Loop Telecom, is the North American TAC (Technical Assistance Cener) for AM3440 products.	$ 455	Qty: 0 1 2 3 4 5
Map34-qty-NonDCB	Map34 Software for one AM3440 that was not purchased from DCB - 6 or more units. Requires a DCB support contract for Map34 and the AM3440 unit support. DCB, per agreement with Loop Telecom, is the North American TAC (Technical Assistance Cener) for AM3440 products.	$ 405	Qty: 0 6 7 8 9
