Point-to-point V.29 Modem Model- LL-9.6

9600 bps V.29 Synchronous and Asynchronous Modem

9600 bps, also operates at 4800 and 7200 bps, V.29 RS-232 interface Synchronous or asynchronous Point-to-Point, 4-wire unconditioned leased line operation LCD display Network management port Optional 12/24/-48VDC or 120/240 VAC power supplies

FEATURES
DESCRIPTION
SPECIFICATIONS

General
Indicators (front panel)
Controls
Telco
Data Port
Network Management
Front Panel and Network Management Port Commands
Additional Commands in Network Management Port
Physical/Electrical

APPLICATION

HOW TO ORDER

FEATURES

• 9600 bps, also operates at 4800 and 7200 bps, V.29
• RS-232 interface
• Synchronous or asynchronous
• Point-to-Point, 4-wire unconditioned leased line operation
• LCD display
• Network management port
• Optional 12/24/-48VDC or 120/240 VAC power supplies

DESCRIPTION

The LCD front panel is used to set up the following parameters for the local modem: Modem rate, modem address, RTS/CTS delay, RTS Holdover, RTS Stream, RTS Control, Transmit Carrier, Transmit Clock Source, Synchronous or Asynchronous, Receive Level, Transmit Level, Transmit Data Clamp.

The modem can send remote commands for loopbacks, test tones and to measure remote receive levels. In addition, the LCD front panel can initiate the following diagnostic tests: Line test, Digital Loopback, Analog Loopback, Remote Digital Loopback, Send 1004 Hz test tone, Remote send 1004 Hz test tone.

The LCD front panel is continuously updated to display the receive level in dBm. This is most useful when diagnosing line troubles with the telephone company.

The Network Management port is accessed through a 9-pin RS-232D asynchronous port on the rear of rear panel of the modem. Through this port it is possible to configure the modem and perform all the test diagnostics available through the LCD front panel. The Network Management port can also be used to configure the remote modem and measure the remote receive level.

SPECIFICATIONS

General

• Rates: 9600 bps synchronous or asynchronous, 4.8, 7.2Kbps manual bps fallback
• Application: Point-to-point
• Facility: 4-wire unconditioned leased lines
• Signaling: CCITT V.29, Automatic Adaptive
• Equalization, 2400 Baud
• QAM modulation, 1700 Hz carrier frequency

Indicators (front panel)

Power, Transmit Data, Receive Data, Request to Send, Clear to Send, Data Carrier Detect, LCD front panel display

Controls

Front panel push buttons for Next,->, INCR, OK, RESET

Telco

Interface: Four wire lease line
Connector: RJ11-C

Data Port

Interface: RS-232-D, V.24
Connector: DB25 female
Timing: Synchronous or Asynchronous

Network Management

Interface: RS-232-D, V.24
Connector: DE-9 female
Timing: Asynchronous

Front Panel and Network Management Port Commands

Rate, Sync/async, receive and transmit levels, RTS control, Tx Data clamp, Test Line, loopbacks, send 1004Hz test tone, remote send 1004 Hz test tone

Additional Commands in Network Management Port

Local and remote Show Config
Remote modem Type
Local and remote Set ID
Remote Measure Level

Physical/Electrical

Power requirements: Standard Power Supply:120 VAC, 43 Watts, .36 Amps
Optional Power Supplies available for 12/24/-48 VDC and 120/240 VAC
10 1/4" x 9 3/4" x 2 1/4"
Temperature: -40 to +75 C, Less than 95% non-condensing humidity

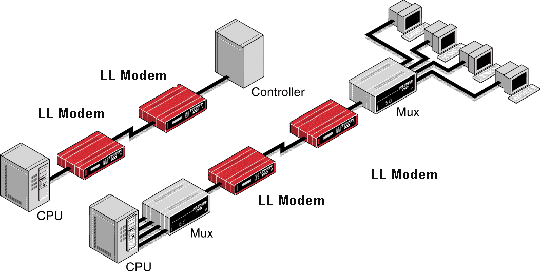

APPLICATION

How to Order

PRICING:
