Optional and Replacement Power Supplies

Models to convert various DC or AC input voltages to that required by DCB equipment
Available for all DCB products
Compact size
Sealed housing, no fan

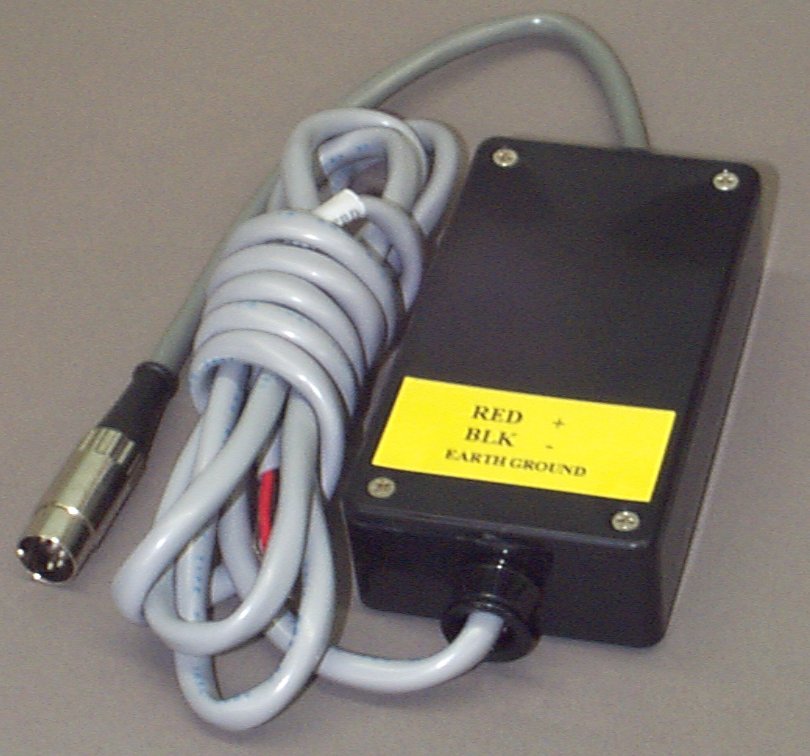

Picture of typical 125 VDC model

FEATURES
DESCRIPTION
SPECIFICATIONS

General
Connections
Electrical
Physical/

HOW TO ORDER

FEATURES

Models to convert various DC or AC input voltages to that required by DCB equipment
Available for most DCB products
Compact size
Sealed housing, no fan

These optional DC input supplies are used for products that are located in environments such as central offices and field locations having a DC power source or applications requiring battery power. Many models are available having nominal input voltages of 12, 24, -48 or 125 Vdc. and allow a wide variation in input voltage. Input voltage may be either polarity with respect to ground. All power supplies are ground isolated.

Optional and replacement AC input power supplies are available for either 120 VAC, 240 VAC, or in some products, combination 120/240 VAC.

SPECIFICATIONS

General

Models to convert 12, 24, 48, or 125 volts DC nominal to voltages required by DCB equipment
Temp range -40 to +70 C on DC supplies
Sealed box, no fan on DC supplies
Please call for non USA power supply versions. Although not listed here, we have versions for EURO, UK, Australia, Israel, Italy, Argentina, S. Africa, and other countries.

Electrical

See Order table for input voltage range Connections

Screw terminal or Bare wire for terminating to DC source (Red = +V, Black = -V, and White= earth ground)
-48 volt supply has Red = -48V, Black = +V, White = Earth
5 pin DIN for +5, +12 and -12 volts to DCB products requiring multiple voltages, Coaxial connector for single voltage supplies.

Physical

Size: 1.25" X 5.25" X 2.5" for DC input supplies

APPLICATION

These power supplies are used to power DCB products from customer supplied single voltage DC supplies.

How to Order

We also provide many more power supplies that are not listed here. PLease call for other models.
Please call for non USA power supply versions. We have versions with connectors for EURO, UK, Australia, Israel, Italy, Argentina, S. Africa, and other countries.

Optional Power Supplies For: SR-8 through SR-32, AS-8 through AS-32, SRX-8 through SRX-32, BPF-8 to BPF-24 SPL-2 through SPL-14, SPLH-2 through SPLH-8, DV-1D, SR-VM (all models), LL 9.6 FP Modem
When ordered with DCB equipment in this section, the unit replaces the standard 120VAC power supply and the unit price is $75 instead of $125.

Part No. Description Price

9501034 9-18 VDC Input Power Supply $ 125
9501025 18-36 VDC Input Power Supply $ 125

9501024 36-75 VDC Input Power Supply $ 125

9501029 125 VDC Input Power Supply $ 125

9501027 110 VAC (standard) Input Power Supply (Replacement) $ 150

Optional Power Supplies For: SR-8 through SR-32, AS-8 through AS-32, SRX-8 through SRX-32, BPF-8 to BPF-24 SPL-2 through SPL-14, SPLH-2 through SPLH-8, DV-1D, SR-VM (all models), LL 9.6 FP Modem When ordered with DCB equipment in this section, the unit replaces the standard 120VAC power supply and the unit price is $75 instead of $125.
Part No.	Description	Price
9501034	9-18 VDC Input Power Supply	$ 125
9501025	18-36 VDC Input Power Supply	$ 125
9501024	36-75 VDC Input Power Supply	$ 125
9501029	125 VDC Input Power Supply	$ 125
9501027	110 VAC (standard) Input Power Supply (Replacement)	$ 150

Optional Power Supplies For: SR-4, BPF-1, BPF-4, HSAA, PPP, AS-4, DL-56, DL-64, IP-5200

Part No. Description Price

9501026 9-18 VDC Input Power Supply $ 75
9501031 18-36 VDC Input Power Supply $ 75

9501074 36-75 VDC Input Power Supply $ 75

9501030 125 VDC Input Power Supply $ 125

Optional Power Supplies For: SR-4, BPF-1, BPF-4, HSAA, PPP, AS-4, DL-56, DL-64, IP-5200
Part No.	Description	Price
9501026	9-18 VDC Input Power Supply	$ 75
9501031	18-36 VDC Input Power Supply	$ 75
9501074	36-75 VDC Input Power Supply	$ 75
9501030	125 VDC Input Power Supply	$ 125

Optional Power Supplies For: T-Extender

Part No. Description Price

9501075 9-18 VDC Input Power Supply $ 75
9501076 18-36 VDC Input Power Supply $ 75

9501028 36-75 VDC Input Power Supply $ 75

Optional Power Supplies For: IP-6600, ET-6600, ET-3300, EEP-2

Part No. Description Price

9001099 120 VAC Input Power Supply $ call
9501083 125 VDC Input Power Supply $ 125

Optional Power Supplies For: T-Extender
Part No.	Description	Price
9501075	9-18 VDC Input Power Supply	$ 75
9501076	18-36 VDC Input Power Supply	$ 75
9501028	36-75 VDC Input Power Supply	$ 75

Optional Power Supplies For: IP-6600, ET-6600, ET-3300, EEP-2
Part No.	Description	Price
9001099	120 VAC Input Power Supply	$ call
9501083	125 VDC Input Power Supply	$ 125

Optional Power Supplies For: EtherPath, SE-6600, and EtherPoll

Part No. Description Price

9001037 120 VAC Input Power Supply $ call
9501037 9-18 VDC Input Power Supply $ 75
9501038 18-36 VDC Input Power Supply $ 75

9501033 36-75 VDC Input Power Supply $ 75

9501035 120 VAC Common Power Supply for 8 units $ 200

Optional Power Supplies For: EtherPath-R, EtherPoll-R, and EtherBridge-R

Part No. Description Price

9001037 120 VAC Input Power Supply $ call
9501033 36-75 VDC Input Power Supply $ 75

9501081 125 VDC Input Power Supply $ 125

Optional Power Supplies For: FOS-4SM, FOS-4MM

Part No. Description Price

9001020 120 VAC Input Power Supply $ call
9501033 36-75 VDC Input Power Supply $ 75

9501030 125 VDC Input Power Supply $ call
