T1 DSU

LOOP-T 2500
Single and Dual Port CSU/DSU

FEATURES

  • DSU functionality integrated with an intelligent CSU in a compact package
  • Single or Dual DTE port models
  • T-1, Router, V.35, EIA-530 RS-449 Interfaces
  • SNMP Management or terminal console port
  • GUI Windows based management system available
  • Connection to LAN/WAN, CAD/CAM, or Hosts to T1 Network Services
  • 2-line by 16-character LCD
  • Compliance with ANSI T1.403-1989, AT&T TR 54016, 54019, 45019A and 62411, FCC Part 15 Class A, FCC Part 68, DOC-CS-03, CSA 22.2 No. 225, UL 1459

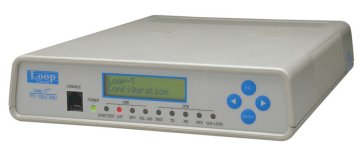

LT500SA picture


ISO9001 banner

This product is discontinued in March 2024. The IP6704A is a current production alternative. The IP6704A DACS version can operate T1 with a variety of DS0 interfaces, similar to the T2500.

DESCRIPTION

Loop Telecom's Loop-T2500 FT1 CSU/DSU series provides an economic solution to T1 network access cost, when a full T1 or fractional T1 of some DS0 channels is needed. This product series support Extended Superframe Format (ESF) which makes possible continuous error checking, performance polling, and in-service diagnostics. Customer equipment interfaces include T1, series DTE, and Router. With DTE port operating from 56 to 1536 Kbps, Loop-T2500 FT1 CSU/DSU allows users to interconnect LANs and WANs, CAD and CAM, video conference, mainframe hosts, and others.

Loop-T2500 FT1 CSU/DSU series support local control and diagnostics using 2-line by 16-character LCD display and keypads or RS232 console port. This allows users to execute in-service diagnostics and fault isolation. The multi-colored LEDs on the front panel provide both line side and DTE side status indicators. An in-band management channel with GUI are available. Using SNMP Network Management Systems or Telnet connection, users can remotely control and diagnose Loop-T products from anywhere. A GUI Windows based SNMP manager, LoopView, is available.

DCB is the North American Warranty Repair Station for all Loop products!

LOOP-T 2500 FT1 CSU/DSU SERIES PRODUCT SPECIFICATION (Stand Alone)

 Network Line Interface (DS-1 Interface)
Line Rate

1.544 Mbps ± 50 bps

Framing

D4 / ESF (selectable)

Line Code

AMI / B8ZS (selectable)

Connector

RJ48C

Input Signal

DS-1 form 0 dB to -26 dB w/ALBO

Output Signal

DS-1 w/ 0, -7.5, -15 dB LBO

Surge Protection

FCC Part 68 SubPart D

Pulse Template

Per AT&T TR 62411

Customer Equipment Interface

A. Single or Dual DTE Data Ports

B. DS0 Mapping

Data Rate

N * (56 or 64) Kbps (n = 1- 24)

Maps

2 sets of DS0 map with provision for

Connector

V.35: M34,DB-25
EIA-530: DB-25
LAN: 100BaseT

automatic switching between the 2 maps

Remote Send

Send active DS0 maps to remote site (in ESF mode only)

Performance Monitor

Performance Memory

The last 24 hours performance in 15-minute intervals line, user, and remote site (in ESF mode only)

Performance Reports

Report includes Date & Time, Errored Second, Unavailable Second, Bursty Errored Second, Severe Errored Second, Controlled Slip Second, and Loss of Frame Count.

Alarm History

Report includes Date & Time, Alarm Type (i.e. Master Clock Loss, Yellow Alarm, AIS, LOF, BPV, ES, CS), and Location (i.e. line, DTE).

Alarm Queue

Contains 40 alarm records which record the latest alarm type, and date & time

PRM

ANSI T1.403 PRM (Performance Report Messages) (selectable)

System Configuration Parameters (All in non-volatile memory)

Active Configuration

Current working configuration

Stored Configuration

User stored configuration

Default Configuration

Manufacture default configuration (permanent)

Console Port

Connector

RJ-11 at Front Panel

Electrical

RS232 interface

Protocol

Menu driven VT-100 terminal, SLIP, or Embedded SNMP (optional)

Diagnostics Test

Loopbacks

Line Loopback, Payload Loopback, Local Loopback, and DTE Loopback

Test Pattern

20 bits QRSS, 3-in-24, 1-in-8, 2-in-8, 1:1 patterns

Idle Channel

Use of idle channel to perform QRSS diagnostic test

Remote Loopback

AT&T inband Loopback & Payload Loopback, ANSI Line Loopback, Payload Loopback

DTE Channel Loopback (ANSI T1.403 Annex B or Loop proprietary)

Front Panel

Keypad

4 keys: left arrow, right arrow, ESC, and ENTER >

LCD

2-line by 16-character LCD

LED

10: Power, Line [SYNC/TEST, LOF, BPV, YEL/AIS], DTE [TEST, TD, RD, RTS, CLK-LOSS]

Physical/Electrical

Dimensions

8 ½ " x 2 ¼ " x 11 ¼ " (WxHxD)

Power

20-60 Vdc, 90-250Vac, 5 Watts

Temperature range

32-120°F

Humidity

0 - 95%RH (non-condensing)

Mounting

Desk-top stackable, 19/23 inch rack mountable

Compliance

AT&T TR 54016, AT&T TR 54019, AT&T TR 54019A, AT&T TR 62411, ANSI T1.403-1989, FCC Part 15 Class A, UL1459, CSA 22.2 No. 225, FCC Part 68, UL 1459, DOC-CS-03

Need it fast?  Buy on-line or call toll free 800-432-2638!
Item Number Description Price Buy Now!
TA-2500-2S-DTE-SNMP-pp Single Port DTE Interface T-1 DSU, SNMP $ 498 Qty:
TA-2500-2S-DTE-DTE-SNMP-pp Two Port (DTE + DTE) Interface T-1 DSU, SNMP $ 582 Qty:
TA-2500-11 DTE Interface option - V.35 interface w/ M34 connector $ 0.0 Qty:
TA-2500-22 DTE Interface option - V.35 interface w/DB-25 connector $ 0.0 Qty:
TA-2500-33 DTE Interface option - EIA-530 interface w/ DB-25connector $ 0.0 Qty:
TA-2500-DC -48 Volt DC Power Supply option $ 0.0 Qty:
TA-2500-AC 90-250 50/60 Hz Volt AC Power Supply option $ 0.0 Qty:
