SW-8G 8-port 10/100/1000Base-T Ethernet switch card for Loop AM3440 and O9500

Features Designed for Loop Telecom AM3440, O9500 chassis Uses only one slot 8-ports 10/100/1000Base-T Ethernet switch card Auto speed sensing, auto full/half duplex sensing Auto MDI/MDI-X cable crossover sensing Non blocking full duplex wire speed switching engine Uses 4096 entry forwarding table and 256K byte frame buffer Managed via USB-C port or web browser Supports 802.1Q VLAN Includes on-board diagnostic tools Eliminates separate Ethernet switch chassis Description Specifications How To Order General Indicators Software Requirements Physical / Electrical Application Notes and Manual Download

8-port 10/100/1000Base-T Ethernet switch card

DESCRIPTION

The SW8G is an easily configured 8-port 10/100/1000Base-T Ethernet switch card designed for use in Loop Telecom AM3440 and O9500 chassis.

The SW8G switch features include auto MDI/MDI-X, auto speed sense, support for 802.1Q VLAN, SNMP V2c and V3, port mirroring, port activity counters and optional user access controls. In addition, switch firmware can be updated via web browser or serial port.

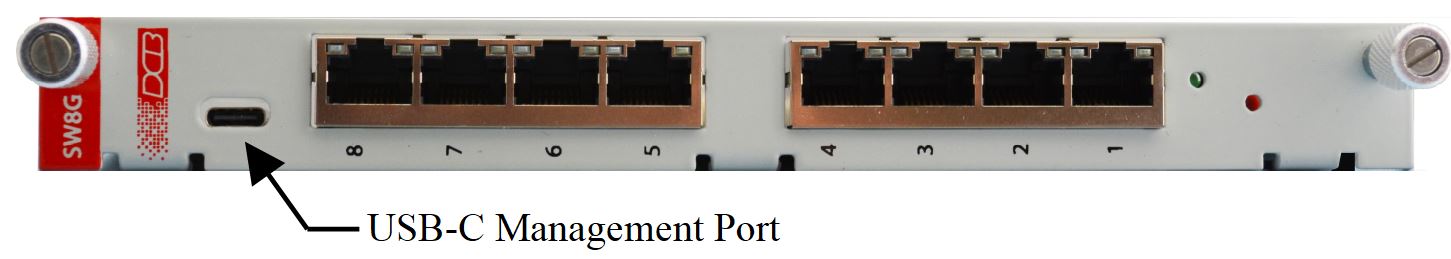

When used in its simplest mode, there is minimal configuration required. The switch is easily configured using any web browser connection via an Ethernet port or front panel USB-C dedicated management port.

The SW8G can be used to expand access to an existing local LAN or in an 8-port stand alone network. VLAN port IDs and VLAN port groups can be used to optionally route LAN traffic.

Firmware upgrades may be installed using any web browser through an Ethernet port or using the USB-C serial management port.

The switch includes diagnostic tools such as port status, including up/down and speed, port activity counters and port mirroring. A ping tool is available on the serial management port. The SW8G has a front panel green status LED and reset push-button switch.

SPECIFICATIONS

General

• Designed for Loop Telecom AM3440, O9500 chassis
• Uses only one slot
• 8-ports 10/100/1000Base-T Ethernet switch card
• Auto speed sensing, auto full/half duplex sensing
• Auto MDI/MDI-X cable crossover sensing
• Non blocking wire speed switching engine
• Uses 4096 entry forwarding table and 256K byte frame buffer
• Managed via USB-C port or web browser
• Supports 802.1Q VLAN
• Includes on-board diagnostic tools (ping, up/down, speed, port activity, counters, port mirroring)
• Eliminates separate Ethernet switch chassis

Indicators

Software Requirements

The switch supports IP and associated protocols such as UDP, ICMP, DHCP, multi-cast, and any protocol built upon IP or TCP/IP. The initial IP address may be entered using any terminal or terminal emulation software on a PC.

Any standard web browser may be used for configuration once the switch is configured with a valid IP address appropriate for your network. The default IP address for the SW8G management port is 192.168.0.1 using https.

Physical/Electrical

• Power requirements: Power supplied by the Loop O9500 and AM3440A, B or C chassis
• Less than 8 watts
• One pound

APPLICATIONS

How it works

Simply plug it into your Loop chassis for an 8 port switch. More advanced uses requre configuration using a web browser. Saves rack space, power wiring, and simplifies installations. This switch also takes advantage of the Loop Chassis redundant power supplies for additional reliability.

Download the manual here .

Download the quik start guide here .
