8 port Ethernet Switch Card for Loop AM3440 and O9500

SW-8 8 port Ethernet Switch for Loop AM3440 and O9500

If you need 10/100/1000BaseT, we also manufacture a gigabit switch card for the AM-3440 and O-9500.
The data sheet is here.

Features

Fits Loop Telecom AM3440, O9500 chassis
Uses only one slot
8 – Ports, 10/100BaseT Ethernet
Auto speed sensing
Auto MDI/MDI-X cable crossover sensing
Supports 1536 byte VLAN packets
Supports full and half duplex Ethernet
Un-managed, uses chassis for power only
Eliminates separate Ethernet switch chassis

Description
Specifications
How To Order
General
Indicators
Physical / Electrical
Application Notes and Manual Download

SW-8 8-Port Switch

DESCRIPTION

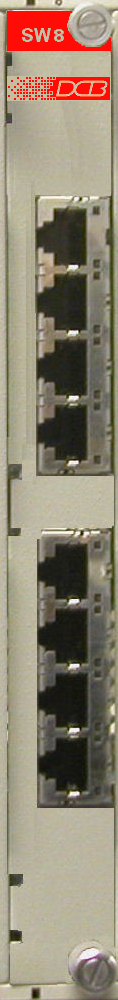

The SW8 is an 8-port Ethernet switch card for the Loop Telecom AM3440 A, B and C chassis and O9500 single slots. The SW8 is an ideal Ethernet switch for industrial applications. The switch uses the chassis only for housing and power. Many of the AM3440 chassis have empty slots, and there is often a need for an Ethernet switch at the site. The SW8 is the ideal product for this application. An extra switch box and power supply is eliminated, and the SW8 takes advantage of the AM3440 and O9500 dual redundant power supplies.

The SW8 features 8 10/100BaseT Ethernet ports with an integrated layer 2 switch. The SW8 is capable of wire speed transmission. It supports 1,000 MAC addresses, address learning, address aging and address migration. While not a VLAN management switch, the SW8 is compatible with VLANs and VLAN tags.

The SW8 has 2 LEDs for each port to indicate connection, speed, and activity. The switch is not managed by the AM3440 controller. The chassis is used only as a convenient housing and to provide power for the switch.

SPECIFICATIONS

General

8 ports, 10 BaseT, 100BaseTX autosensing
2.0 Gbps high performance memory bandwidth
for non-blocking full duplex performance
Wire speed transmit and receive
Supports 1536 byte frames for VLAN tag
Supports 802.3x flow control
Supports full and half duplex
Supports MDI/MDI-X autocrossover
Learns up to 1,000 MAC addresses
128 K bytes SRAM for frame buffering

Indicators

Link, Speed and Activity for each port

Physical/Electrical

Power requirements: supplied by the Loop O9500 and AM3440A, B or C chassis
Less than 4 watts
One pound

APPLICATIONS

How it works

Simply plug it into your Loop chassis for an 8 port unmanaged 10/100BaseT switch. Saves rack space, power wiring, and simplifies installations. This switch also takes advantage of the Loop Chassis redundant power supplies for additional reliability.

This data sheet is the manual for this product. Click here to download a PDF copy of this data sheet.

Item Number	Description	Price	Buy Now!
Questions? Phone us toll free at 800-432-2638
SW-8	8 port 10/100BaseT ethernet switch card for Loop Chassis	$ 295	Qty:
