RS-232 to RS-530 & RS530 to RS232 Interface Converter

Connect RS-232 Customer Equipment to RS-530 Communications Equipment

Easy to install
Speeds to 256 Kbps
DB-25 connectors
Synchronous Interfaces
No switches to set
Connects RS-232 terminal equipment to RS-530 communications equipment

FEATURES
DESCRIPTION
SPECIFICATIONS

General
Indicators
Physical/Electrical

HOW TO ORDER

FEATURES

Easy to install
Speeds to 256 Kbps
DB-25 connectors
No switches to set
Connects RS-232 terminal equipment to RS-530 communications equipment

The DCB RRC-1 is an RS-232 to RS-530 interface converter, ideal for use with terminals, personal computers, bridges, routers, work stations, etc. The RRC-1 will work with any synchronous terminal device that has an RS-232 interface and must connect to communications equipment with a RS-530 interface.

The RRC-1 is powered by a wall mounted power supply and is designed to replace unreliable non-powered interface converters. The RRC-1 will operate at data rates up to 256Kbps. The RRC-1 has a DB-25 female connector for the RS-232 connection to terminal devices and a DB-25 male connector for connection to the RS-530 communications device.

The RRC-1 is very easy to install. There are no switches to set, nothing to configure. Apply power, attach devices to be linked, and installation is complete. All standard control signals and clocks are converted. The single LED on the faceplate is the power indicator.

SPECIFICATIONS

General

RS-530 to RS-232 converter
DB-25S Female Connector for RS-232
DB-25P Male Connector for RS-530
RS-232 connects to terminal devices
RS-530 connects to communications equipment
Synchronous interface
Signals:Transmit Data, Receive Data, Transmit Clock, Receive Clock, Request to Send, Clear to Send, Data Set Ready, Data Terminal Ready, Data Carrier Detect, External Transmit Clock

Indicators

Power

Physical/Electrical

120 VAC, 3 Watts
Wall mount power transformer
7" x 5 1/4" x 1 1/2"
1 lb

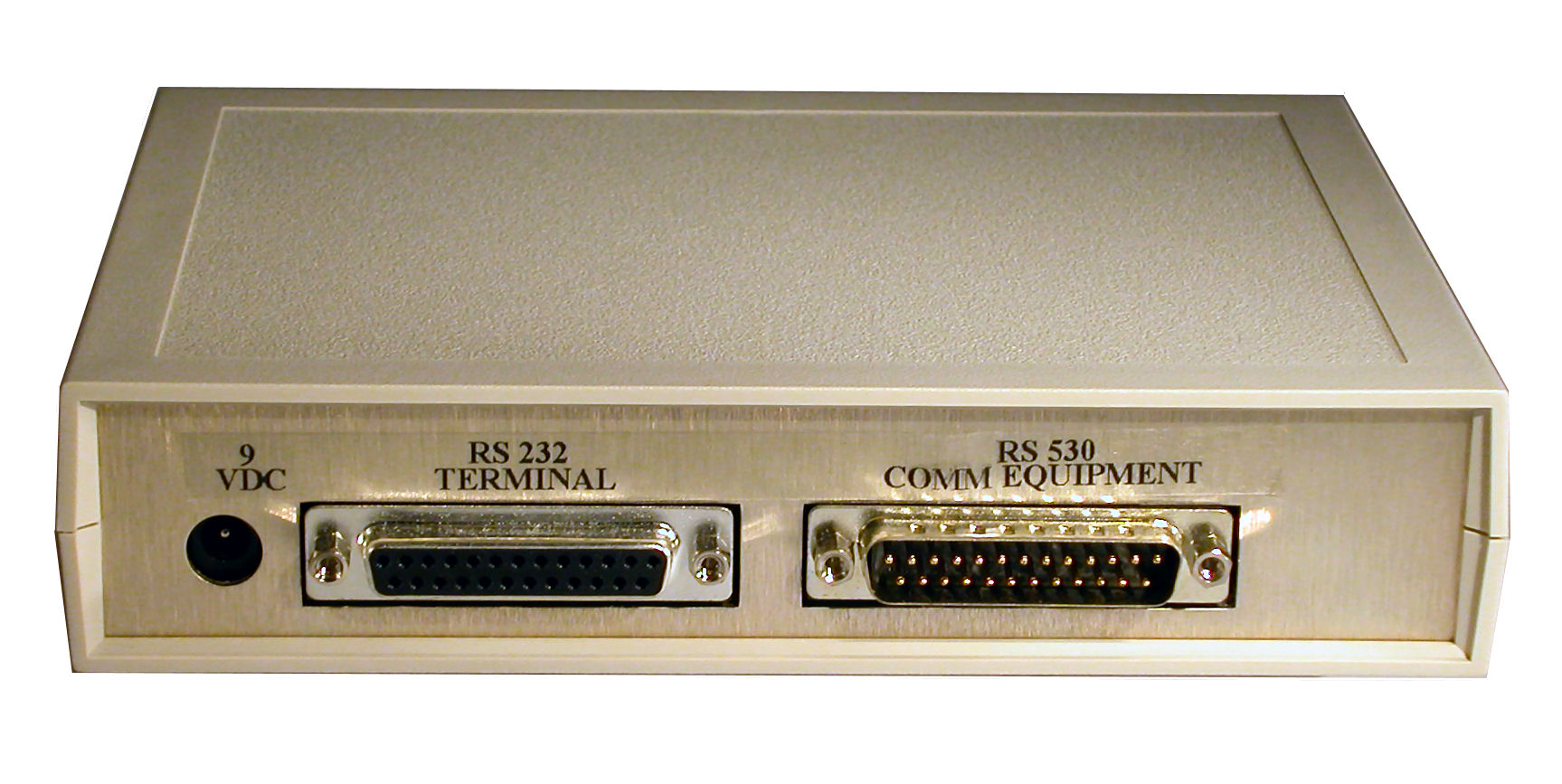

Rear view of RRC-1

Item Number	Description	Price	Order!
This is a special order product. Call toll free 800-432-2638 for delivery options!
RRC-1	RS-530 DCE to RS-232 DTE Converter w/ 120VAC power input	$ 295	Call to Order
