 DCB XR-8 Rack |

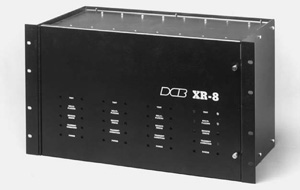

 20 Slot Chassis Front View |
 Rack for 3 or 4 EthersSeries-R Products |
 PS-8 Rack Power Supply |
 Rack Mount Shelf & Bezel for 1 and 3 units |
 20 Slot Chassis Rear View |
Indicators
Physical/ElectricalHOW TO ORDER
FEATURES
- RK-8/16 Rack holds one 8 or 16 port multiplexer, access switch, dsu or modem
- RK-24/32 Rack holds one 24 or 32 port unit multiplexer or access switch
- MR-8 Rack holds 8 LL or PL modems
- MR-8 Rack holds 8 DL DSU/CSU
- XR-8 Works with all SPL, SR AND SRX multiplexers
- PS-8 Power supply for MR or XR racks
- XR-8 Rack holds:
8 2-6 Channel SPL multiplexers
4 8-14 Channel SPL multiplexers
8 SR or SRX 8/16 Multiplexers
4 SR or SRX 24/32 Multiplexers
DESCRIPTION
This equipment is designed for high density packaging of DCB modems and multiplexers. The MR-8 modem rack will work with any LL or PL series modems and the DL DSU/CSU at rates from 4.8 to 56 Kbps. The XR-8 multiplexer rack works with any SPL, SR or SRX multiplexer. SPL rack cards from 2-6 channels occupy one of the eight slots available in the rack. SPL rack cards from 8-14 channels occupy two slots, SR and SRX 8/16 rack cards occupy one slot and SR and SRX 24/32 cards occupy two slots.
The DCB Rack is also suitable for use with:DCB SecureDial 1-4 ChannelThe DCB rack systems greatly simplifies wiring and test procedures as well as giving you a convenient place for spare equipment. The racks and power supplies are engineered to fit the standard 19" equipment cabinets.
DCB SPL Hubs 2-10 Channel
DCB Access Switch
DCB Universal Switch
The DCB RK-8/16 is used for rack mounting a single DSU, modem, 8/16 port multiplexer, or 8/16 port access switch. The DCB RK-24/32 is used for rack mounting a single 24/32 port multiplexer or access switch. The DCB RK-APS3 is used for rack mounting up to three APS-01 power control switches.
SPECIFICATIONS
Indicators
MR-8PowerXR-8
Transmit Data
Receive Data
Carrier Detect
Request To Send
Clear To Send
TestPowerPS-8
Transmit Condition
Receive Error
Multiplexing
TestPowerPhysical/Electrical
All Bezel Mounts are 1U high for 19" racksL1 20 Slot RackChassis
Dimensions: 19"W x 16"D x 7"H
Power Supply IncludedMR-8 and XR-819"w x 10 1/2"h x 10"dPS-8
No Power Supply Included (Uses the PS-8)19"w x 3 1/2"h x 10"d
120 VAC, 2.4 Amps, 275 Watts
Rear view of DCB PS-8
