MP-24 Wireless Bridge and Router

802.11 Based Wireless Bridge - Industrial Rated (-40 to +65C)

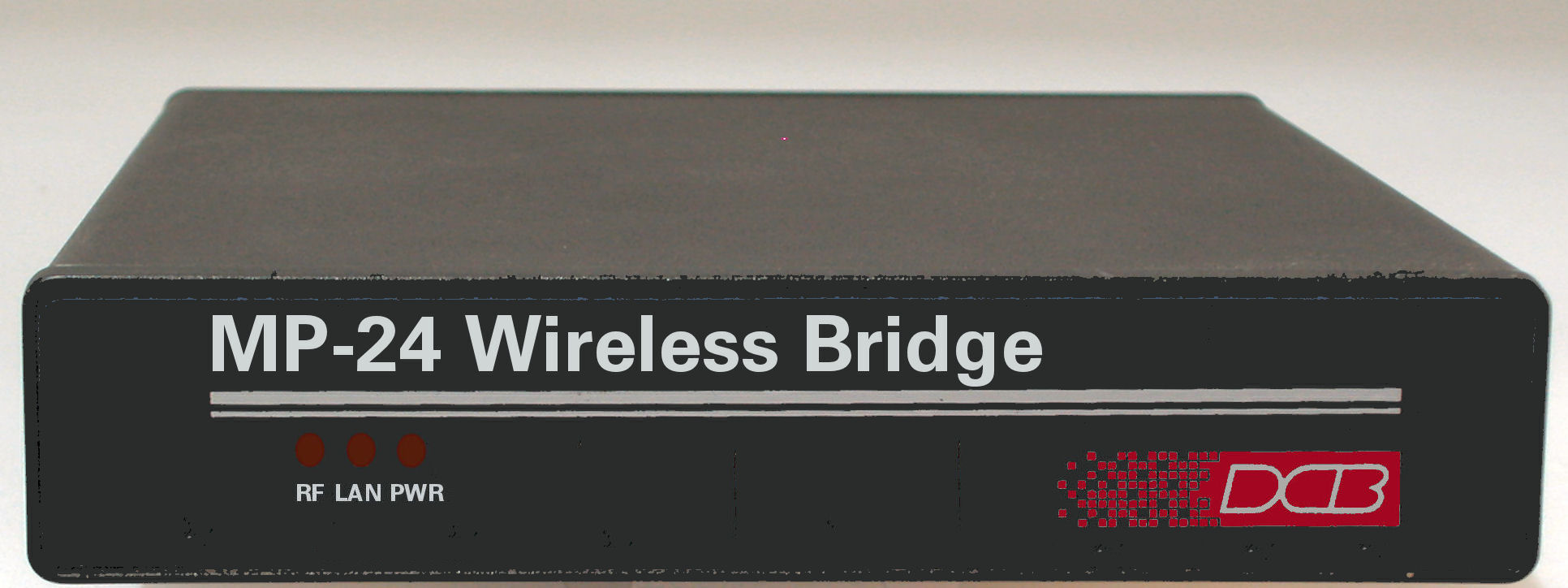

Front View

802.11b 2.4 Ghz
Point to multipoint
Ethernet bridging or routing
-40 to +65 C operating temperature range
10/100 ethernet
12 VDC or POE (power over ethernet)
Standard Radius server support
Protocol filtering
Layer 2 protocol filtering
BOOTP/DHCP
NAT
RIP v2, static routing
SNMP v1
Windows based setup
Wireless link analysis

The MP-24 Wireless Bridge is discontinued. Replacement parts are no longer unavailable.

DESCRIPTION

The MP-24 Wireless Bridge is an 802.11 device for point to point or point to multipoint operation. The MP-24 will function as either a bridge or a router, or as an access point in a wireless network. The MP-24 is 802.11b spread spectrum, operating in the 2.4 GHz band. The WB-24 provides reliable long range data communications. Using spread spectrum technology, the MP-24 Wireless Bridge will operate at the 802.11b rates of 1, 2, 5.5 or 11 Mbps. Distances of 10 miles or more are possible.

As well as providing long range reliable data links, the MP-24 Wireless Bridge transceivers set up quickly and incur no ongoing fees, unlike cellular and land line communications. Monthly phone company costs are eliminated.

The MP-24 Wireless Bridges operate in point-to-point mode or point-to-multipoint, selectable using the Windows based setup program.

The WB-24 provides a point-to-point or point-to-multipoint system that is ideal for remote offices, SCADA data collection, marine mobile data collection, etc.

Applications for the DCB MP series products include: Emergency backup links Industrial site networks Campus link for schools, colleges, manufacturing plants, offices Home to office links Computer to computer, terminal or multiplexer links LAN to LAN bridged links

SPECIFICATIONS

General

802.11b, 2.4 Ghz, ISM band
Data rates for 1, 2, 5.5 and 11 Mbps
Direct Sequence Spread Spectrum
Receiver Sensitivity minimum -83 dBm at 11 Mbps
Ethernet Bridging, Routing
Point to point and point to multi-point operation
Units can be set as base or satellite stations
Windows based configuration program
“N” female RF connector
Typically provide 10 mile range
Directional and omni-directional external antenna options

Indicators

Power, RF activity, LAN activity

Controls

Switch to invoke serial port setup

Physical/Electrical

120 VAC wall transformer, 12 VDC, 350 ma
May be powered via IEEE 802.3af-2003 compliant POE (Power Over Ethernet)
Weight 2 pounds
-40 - +65 C, non-condensing humidity
Dimensions: 7.3”W x 7”D x 1.52”H

Environmental

Operational Temperature: - 40 to +65 C, 95% non-condensing humidity

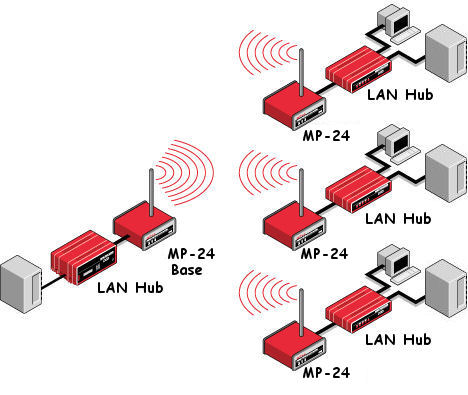

Application

How to Order

DCB PART # DESCRIPTION PRICE

MP-24 802.11 Based Bridge/Router $ 1,995

Various Various external antenna options
$ call

Various Various antenna cable options
$ call
