SDH/SONET Integrated Multi-Services Access Platform

Loop-O9400R OC-48/ STM-16 SDH/SONET IMAP

6U height, full front access (ETSI) shelf
Hot-swappable cross-connect modules, tributary modules and power modules
Temperature controlled fan tray
Aggregate cross-connect modules (controller modules)
- Up to STM-1/4/16 (OC-3/12/48) aggregate lines with software configurable (CC16)
- Up to STM-1/4 (OC-3/12) aggregate lines with software configurable (CC4)
Tributary modules - 8 tributary slots
- Dual ports STM-1/4 (OC-3/12) module
- Triple ports E3/T3 module
- 16/32/63 ports E1/T1 tributary module
- 1 GbE and 8 FE tributary module with L2 switch
- 1 GbE or 8 FE tributary module without L2 switch
- 7 FOM module
Power Modules
- DC module (-36 to -72 Vdc)
- AC/DC hybrid module (90 to 240 Vac; -36 to -72 Vdc)
- Dual power (1+ 1) protection
Protection
Controller-Cross-connect Unit (XCU) protection, MSP (1+1) , SNCP/UPSR
Tributary protection
- E1/T1: Card, Port, Line
- E3/T3: Line
- B155/622: MSP, SNCP/UPSR
- Ethernet
- FOM: Line

TM, ADM, and cross-connect

Full cross-connect at VC11/VC12/VC3/VC4 levels

External/Internal/Line timing source with SSM

Ethernet supports GFP, LAPS, VCAT, BCP, LCAS and non-LCAS ô€¹ Ethernet Order Wire (EOW) using VoIP technology

Management

Console port, VT100 menu-driven
SNMP port: support v1 and v3
Telnet
Centralized management with Loop's EMS/iNMS over DCC channel
LoopView GUI EMS Element Management System
TMN management (Loop-iNMS) with full FCAPS and end-to-end circuit management
SSH

RoHS compliant

Description
Specifications
How to Order
Panel Illustrations
Application Drawings
Detailed Printable Data Sheet

One Typical Application, Click to Enlarge

DESCRIPTION

The Loop-O9400R STM-1/4/16 (OC-3/12/48) is a standard compliant high density rack system NGN SDH/SONET ADM/TM with full T1/E1 cross-connect capability. The O9400R provides full add and drop capability up to:

For controller STM-1/4 (OC-3/12) aggregate cross connect module, the capability up to:
- 1 STM-4 tributaries
- 8 STM-1 tributaries
- 18 E3/T3 tributaries
- 378 E1/T1 tributaries
- 48 10/100M Ethernet EoS tributaries
- 6 GbE EoS tributaries
For controller STM-1/4/16 (OC-3/12/48) aggregate cross connect module, the capability up to:
- 4 STM-4 tributaries
- 16 STM-1 tributaries
- 24 E3/T3 tributaries
- 504 E1/T1 tributaries
- 64 10/100M Ethernet EoS tributaries
- 8 GbE EoS tributaries
- 56 FOM tributaries

With up to 4 STM-1/4/16 (OC-3/12/48) aggregate interfaces on cross-connect modules and 16 STM-1 (OC-3) interfaces on tributaries, the Loop-O9400R can offer the service provider a versatile protection scheme including SNCP(UPSR), and MSP (1+1) protection for both ring and linear network topology.

All interfaces are fully compliant with the relevant ETSI standards and ITU recommendations. The Loop-O9400R provides powerful Operation, Administration, Maintenance and Provisioning (OAM&P) functionality, including fault management, performance monitoring, configuration management, and network security management. Through console port, LAN port, In-band E1, and DCC channel, the OAM&P can be achieved both locally and remotely via SNMP or menu-driven interfaces.

Powerful SDH Loop's EMS/NMS The Loop-O9400R provides a complete set of operation interfaces that are consistent with the Telecommunication Management Network (TMN) concept (ITU Recommendation M.30, G.784) for SDH/SONET Network Element/Operations System (NE/OS), NE/NE, and NE/Craft communications. A user can easily operate the Loop-O9400R locally or remotely for centralized management.

General Specifications

For detailed information on the many interface cards and configurations available for this product, please click here to download the 24 page printable data sheet.

Max. Number of Cross-connect Modules

4 STM-1/4 (OC-3/12) aggregate lines
4 STM-1/4/16 (OC-3/12/48) aggregate lines

Max. Number of Tributary Modules for STM1/4 (OC3/12) Cross-connect Modules

1 STM-4 (OC-12) tributaries
8 STM-1 (OC-3) tributaries
18 E3/T3 tributaries
378 E1/T1 tributaries
6 GbE EoS tributaries
48 10/100M Ethernet EoS tributaries

Max. Number of Tributary Modules for STM1/4/16 (OC3/12/48) Cross-connect Module

4 STM-4 (OC-12) tributaries
16 STM-1 (OC-3) tributaries
24 E3/T3 tributaries
504 E1/T1 tributaries
8 GbE EoS tributaries
64 10/100M Ethernet EoS tributaries

SFP Module Characteristics

Dual Uni-directional fiber at 155M to 2.5G using 1310nm or 1550nm, LC Connectors, distance from 2 Km to 240Km
Electrical 155Mbps, Mini-BNC, 100m distance
SFP Optical modules with single bi-directional fiber 155M - 622M, 1310/1550nm, LC connector from 10 to 200 Km
SFP Optical module, Dual uni-directional or single bi-directional fiber, 155M, 1310 or 1550nm, LC, 10Km to 200Km
Voice Gatway: SIP, G.711, G.726, G.729A, G.723.1, G.165, G.168, RJ-45 10BaseT, RJ-11 FXS
T1 Interface
E1 Interface
E3 Interface
T3 Interface
Fast Ethernet Interface 10/100Mbps RJ45
Gigabit Ethernet Interface 10/100/1000Mbps, RJ45
7 FOM Fiber OPtical Interface , 7 Ports, 1310/ 1550 nm 38.84 Mbps, SFP housing with LC connector, 2 to 40 Km 1+1 Line Protection available

System Clock

CLock Source: Internal clock, 4 aggregate lines clocks (STM-1/4 (OC-3/12)), 6 tributary clocks, 2 external input clocks (ITU-T G.703 - 2.048 Mhz or E1 for STM-1/4, T1 for OC-3/12)
Clock Output: 2 external output (E1 for STM-1/4, T1 for OC-3/12)

Management Interface

LED, Console, Telnet, SNMP, OSS Interface, NE/NE Interface

Alarm Input/Output

4 Input Ports, 4 output ports Relay I/O

Diagnostics

Loopbacks, BERTs, Test Patterns

Performance Monitor

Detailed Performance Reports, Alarm History, and Alarm Queue

Electrical

AC and DC coexistent module 90 to 240Vac, 50/60Hz, -48Vdc (-36 to -72Vdc)
DC module -48Vdc (-36 to -72Vdc)

Physical and Environmental

Dimension for 6U: 433mm x 264mm x 223.5mm (W/H/D)
Dimension for Air Filter Rack 433 x 22 x 223.5mm (WxHxD)
Dimension for Air Filter Rack A with cable management 433 x 88 x 223.5mm (WxHxD)
Dimension for Y-Box 432 x 44 x 100 mm (Wx HxD)
Dimension for Conversion Panel
- RJ connector: 432 x 44 x 23mm (WxHxD)
- WW connector: 432 x 44 x 40mm (WxHxD)
- BNC connector: 432 x66 x 53mm (WxHxD)
Temperature 0-50C
Desk-top stackable, 19/23 inch rack mountable, wall mountable

Certifications

EN55022 Class A, EN50024
FCC Part 15 Class A
IEC60950-1EN 60-950-1

Standards Compliance

ITU-T

G.703, G.707, G.751, G.747, G.7041, G.7042, G.775, G.783, G.806, G.813, G.823, G.824, G.826,,G.841, G.747, X.86, G.664

ANSI

T1.105, T1.107

IEEE

802.1q (VLAN), 802.1w (RSTP), 802.1s(MSTP), 802.1ad (stack VLAN),
802.3x (flow control), 802.1p (QoS)

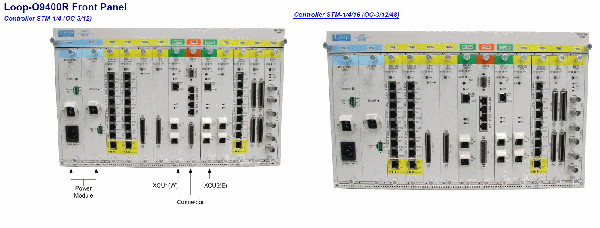

Typical Front Panel

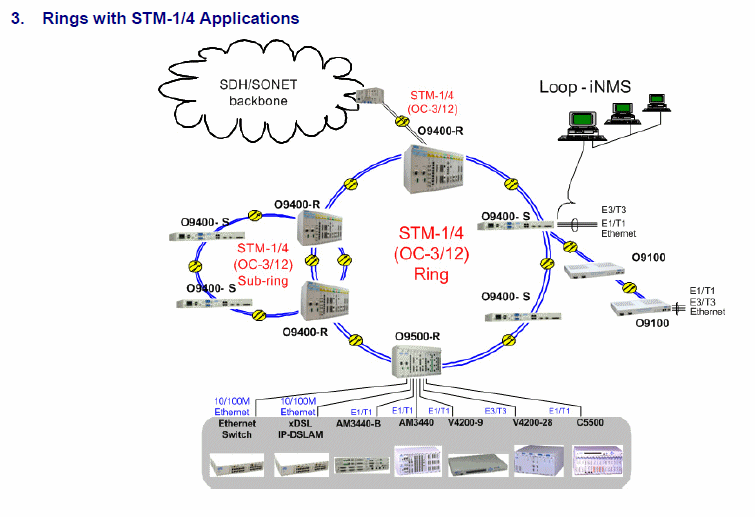

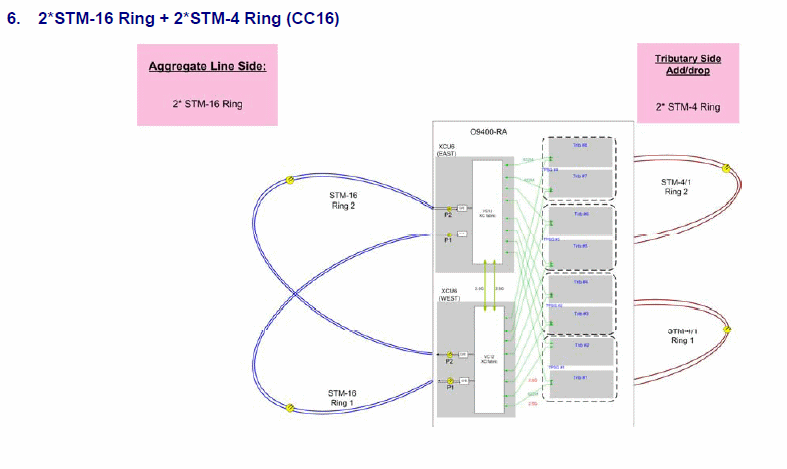

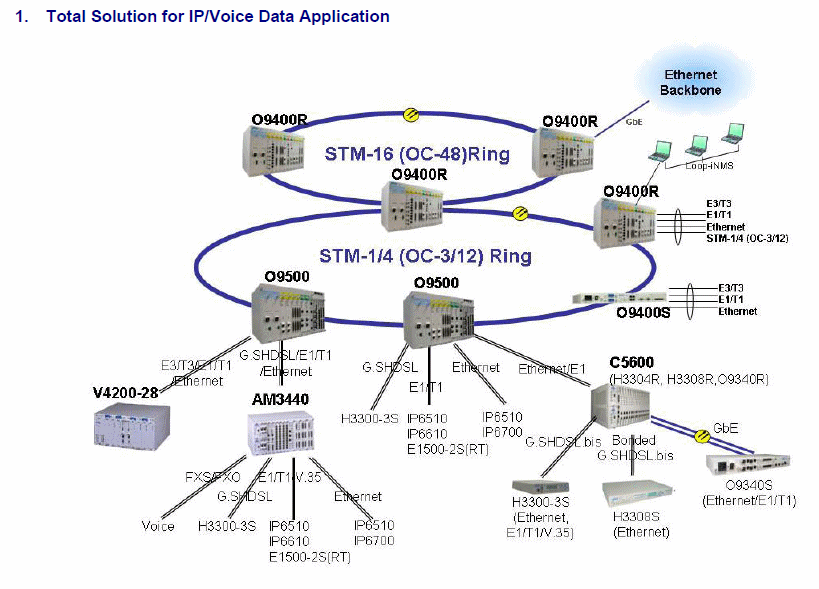

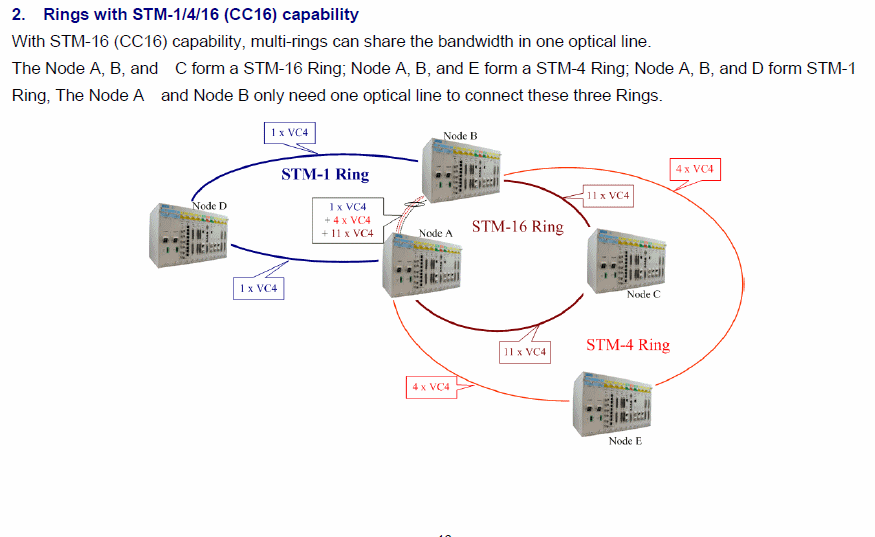

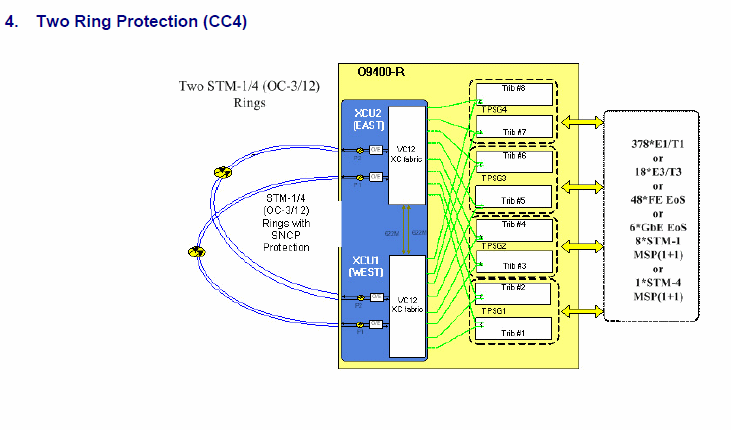

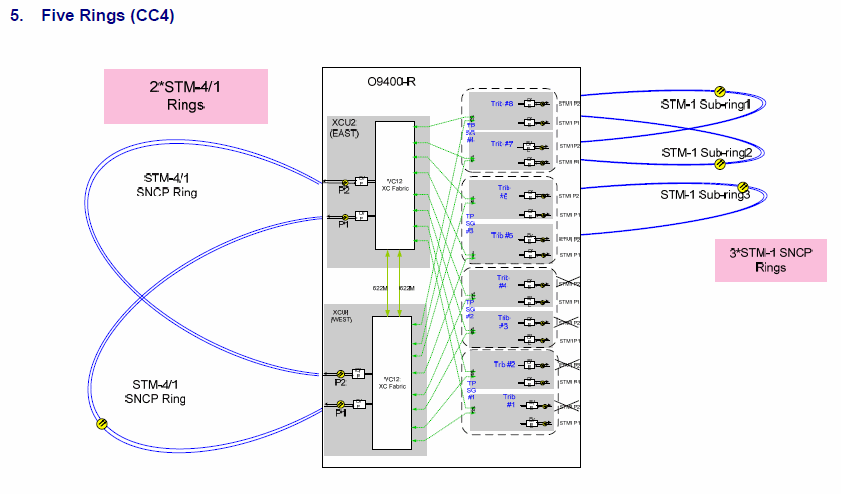

Application Illustrations

Ordering Information

Pricing: The price point of this versatile product is surprisingly low. Please call our toll free number: 800-432-2638 for pricing and additional ordering information.
