TDMoE TDM Over Ethernet IP - Loop IP-6750

Transport up to 16 T1 circuits over IP Networks

<h2> TDMoE up to 16 T1s </h1>
Loop IP-6750

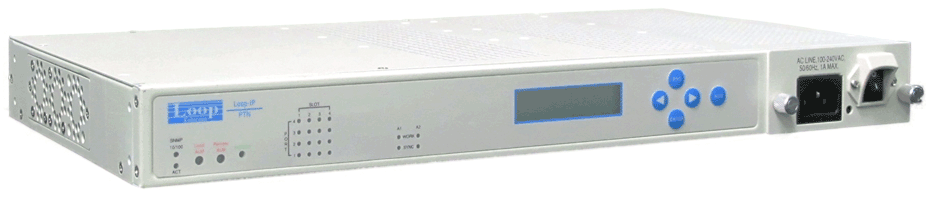

Front Panel ANSI Version
<h2> TDMoE up to 16 T1s </h1>
Loop IP-6750

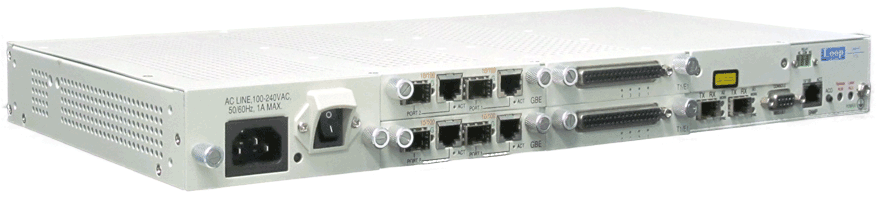

Front Panel ETSI Version

Features

  • Mechanical
    • 1U height, ETSI or ANSI shelf (front and back access)
    • Temperature range from 0 to 65 C
    • Power module
      • AC/DC dual feed slots
      • Hot swappable
  • WAN Aggregate Interface
    • 2 GbE ports with SFP housing
    • IEEE 802.3ad Ethernet Link Aggregation
    • G.8032 v1/v2 Ethernet Ring Protection Switching (ERPS)*
    • G.8031 Ethernet Linear Protection Switching (ELPS)
    • Compliant with MEF 8, 9 and 14.
  • Tributary interface, 4 hot-swappable slots for the following cards:
    • CGbE: Combo Gigabit Ethernet card
      • 2 port groups per card, (1 SFP optical, 1 electric) up to 8 port groups per system
    • E1 / T1 card
      • 4 ports per card, up to 16 ports per system
      • E1/T1 software configurable per card
  • OAM
    • Ethernet OAM
      • 802.1ag/Y.1731
      • 802.3ah
    • Syslog and Dying Gasp alarm
  • QoS
    • Ingress Rate Limiting per port
    • Ethernet Network Level
      • 3-bit Priority Code Poin - PCP field within 802.1p / 802.1q Ethernet frames - CoS
      • 8 priority queues per port
    • IP Network Level
      • 6-bit DiffServ Code Point - DSCP field - ToS
    • Scheduling Algorithms
      • Strict Priority (SP)
      • Weighted Round Robin (WRR)
    • Congestion Avoidance
      • Weighted Random Early Detection (WRED)*
    • Policing algorithm
      • Two-Rate Three-Color
      • Token Bucket
  • Timing
    • Internal/Line
    • External BITS I/O with RJ connector: 2 Mbps, 2 MHz, 1.544Mbps composite clock
    • Adaptive Clock Recovery (ACR) and Differential Clock Recovery (DCR) for TDM Pseudowires
      • Jitter and Wander conforms to MEF 18, ITU-T G.8261, and G.823/824 for Traffic Interface
    • SNTPv4
    • SyncE (ITUT-G.8261) GE interfaces
    • IEEE 1588v2 slave/boundary/transparent clock
    • Internal stratum 3 clock (hold-over state)
    • TOD interface
    • 1PPS interface
  • L2 Switching
    • 5G non-blocking switching capacity
    • Jumbo frame size up to 10K bytes
    • Maximum 4K VLANs
    • 802.1d MAC Table Learning (maximum 32K)
    • 802.3x Flow Control on input ports
    • 802.1d STP, 802.1w RSTP, 802.1s MSTP*
    • IGMP Snooping v2 RFC 2236 and v3 RFC4604*
  • Management
    • SNMPv1/v2c/v3
    • CLI command line interface
    • Telnet and SSHv1/v2
    • 802.1x (port access protocol)*
    • RADIUS Client
  • Pseudowires
      TDM Pseudowires
      • Up to 64 concurrent pseudowires
      • Pseudowire protocols
        • SAToP
        • CESoPSN
        • MEF-8 (CESoETH)
      • Packet Delay Variation Compensation Depth up to 256 ms
    • Diagnostics
      • Built-in traffic generator to support RFC2544/Y.1564 and Y.1731 testing
      • E1/T1 BERT & Loopback
      • Ethernet loopback
    * Future option

Description
Specifications
E-1 Tributary Interface Card
T-1 Tributary Interface Card
Combo GE/FE Interface Card
Gigabit Ethernet Aggregation Ports
SNMP Ethernet
System Clock
Management and Administration
Electrical
Front Panel
Standards Compliance
Physical and Environmental
Topology
How to Order
Application Drawings
Printable data sheet with detailed specifications

 "

DESCRIPTION

The Loop-IP6750 Service Aggregation & Access Device is an effective way for service providers to build their network and achieve a fast return on investment. Currently providers need to transport both TDM and Packet traffic. These can be achieved using the E1/T1 and Gigabit Ethernet tributary ports of the IP6750.

In addition to working now, service providers also have to build the network to meet future requirements.

The IP6750 can handle temperature ranges of 0 C to 65 C. It supports many protocols such as MEF-8 CESoETH, SyncE and IEEE1588v2 Precision Timing, G.8031 Ethernet Linear Protection Switching, and a RFC2544 built-in traffic generator.

The IP6750's durability and capabilities make it an important device for your network to meet the requirements of a carrier-grade Service Level Agreement (SLA).

SPECIFICATIONS

E1 Tributary Interface Card (E1/T1 software selectable)

Line Rate 2.048 Mbps +/- 50 ppm
Line Code HDB3
Framing ITU G.704 (CRC: on/off, CAS: on/off, unframed)
Output Signal ITU G.703
Input Signal ITU G.703
Jitter ITU G.823
Connector DB37

T1 Tributary Interface Card (E1/T1 software selectable)

Line Rate1.544 Mbps +/- 32 ppm
Line CodeAMI / B8ZS (selectable)
FramingD4 / ESF/ ESF&T1.403/ OFF (unframed)
Output SignalDS1 with LBO Setting
Input SignalDS1
Pulse TemplatePer AT&T TR 62411
ConnectorDB37

Combo GE/FE Interface Card

Number of Ports per Card4 physical ports - 2 port groups with 1 RJ45 and 1 SFP port per port group7
Speed10/100/1000 BaseT

Gigabit Ethernet Aggregation Ports

Number of Ports per Card physical ports - 2 port groups with 1 RJ45 and 1 SFP port per port group
Speed10/100/1000 BaseT

SNMP Ethernet


Ethernet Functions10/100 BaseT, IEEE802.3
Auto-negotiation (10/100M)
Auto MDI/MDIX
Full or half duplex
ConnectorRJ45

Alarm Relay

Alarm RelayFuse alarm and performance alarm

System Clock

Clock SourceInternal clock
E1/T1 line clock
Sync Ethernet
1588V2 Ethernet

Management and Administration

Management portsConsole RS232 port and and NMS RJ45 port
CLIFully manageable with CLI (command line interface)
Remote loginSSHv1 and v2, Telnet
SNMPSNMP v1, v2c, v3
Dying Gasp AlarmSupported
WebHTTP, HTTPS (TLS 1.0, TLS1.1 and TLS 1.2)

Electrical

DC Power Module48 V (-36 to -72 Vdc), 24 Vdc (-18 to -36 Vdc)
Second DC module is hot swappable
AC Power Module
100 to 240 Vac, 50 to 60 Hz
Power Consumption < 65 W for 1U height

Physical and Environmental

Dimensions 438 mm x 44 mm x 300 mm (width x height x depth)
Net Weight 4.0 Kg
Temperature 0 C to +65 C
Humidity 0% to 95% RH (non-condensing)
Mounting Desktop stackable, rack mount, wall mount
Cooling Built in fan unit

Compliance

IEEE:802.1d, 802.1p,802.1q, 802.1s, 802.1w, 802.1x, 802.1ad, 802.1ag, 802.3x, 802.3ad, 802.3ah, 1588 v2, 1613
IETF:RFC 2236, RFC 2544, RFC 4604, RFC 4553
ITU:G.823/G.824, G.8032 v1/v2, G.8031, G.8261, Y.1564, Y.1731
MEF:8,9,14

Certifications

EMC/EMIEN55022, EN50024, EN6100-3-3
IEE1613 Environmental Testing in Electric Power Substations*
IEC61850-3*, 60068
SafetyEN60950-1, IEC60950, UL60950
MEF
SafetyMEF 9 & 14 ,CE1.0

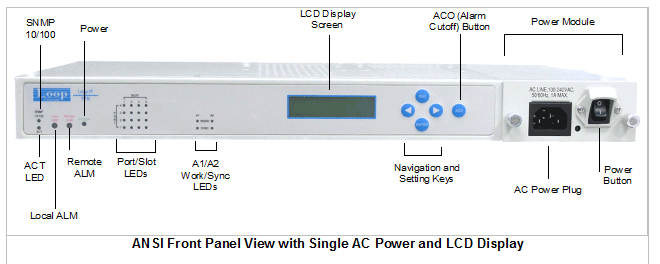

Front Panel


Application Notes

IP-6700 T1/E1 over Ethernet Applications Note describing the use of bundles, cells, and IP bandwidth required to be successful transporting T1 TDM data via ethernet.

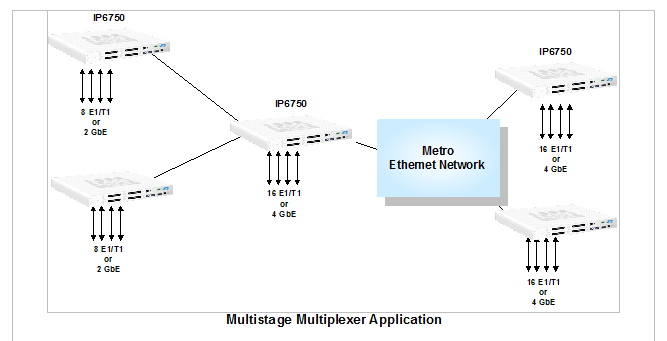

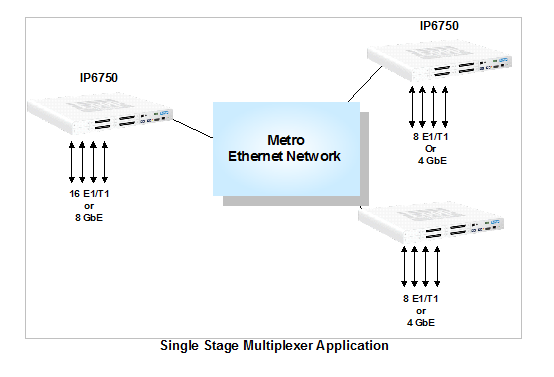

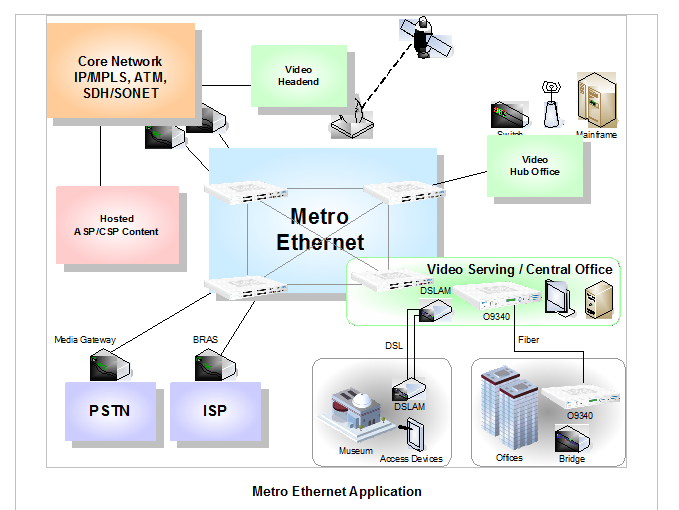

Topology

Ordering Information


Please call for pricing and additional ordering information.
