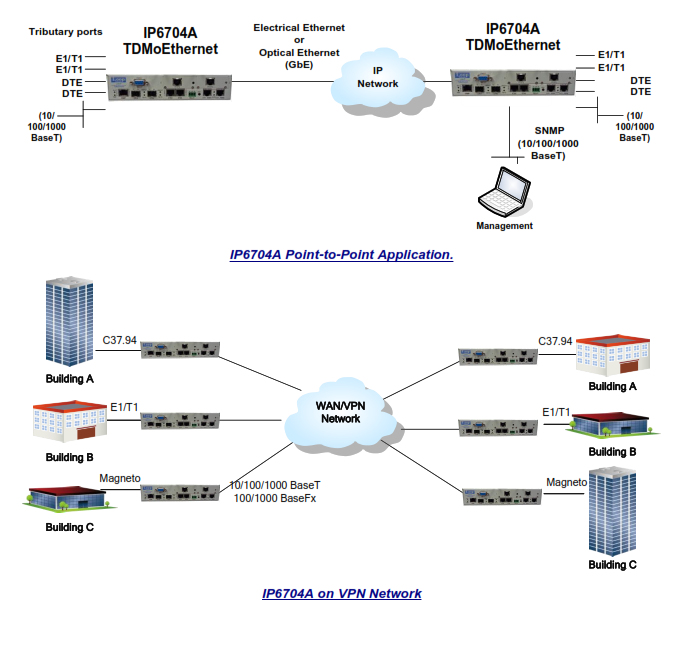

The Loop-IP6704A TDMoEthernet is an ideal solution for service providers to build their network and achieve
a fast return on investment. Currently providers need to transport both TDM and Packet traffic. These can be
achieved using the E1/T1* and Gigabit Ethernet tributary ports of the IP6704A.

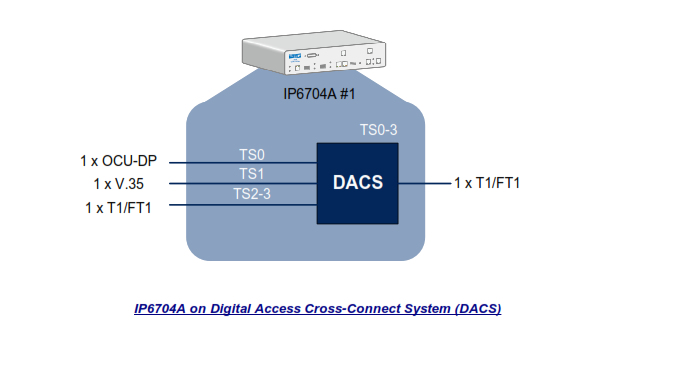

The Loop-IP6704A device allows operators to transport and Time Slot Cross Connect E1/T1,T1/FT1, E&M, X.21, RS232, V.35, EIA530, QFXSA or QFXO, G.703, C37.94 data stream with timing information over PSN (Packet Switched Network) via Pseudowire Protocol - SAToP/CESoPSN/MEF8. E&M, X.21, or RS232 data stream with timing information over PSN (Packet Switched Network) via Pseudowire Protocol – SAToP/CESoPSN/MEF8.
Another IP6704A converts the received packet stream back to original E1/T1, T1/FT1, E&M, X.21, RS232, V.35, EIA530, QFXSA or QFXO, G.703, C37.94 data stream with original timing information. This allows cost-effective migration from existing legacy TDM networks to existing PSN.
Jitter and Wander adheres to G.823/G.824 traffic interface for transport of TDM signals.
Some interface cards and features are not yet available. Please contact us for details if you require non-T1/E1 tributary cards or advanced features.
xxxxx
Mechanical and Electrical
1U height,1/2 19” rack width. ANSI shelf.

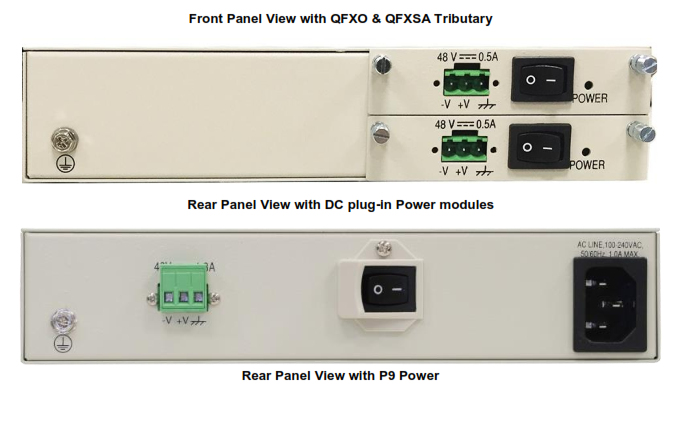

Power module
Up to two DC plug-in modules or Hybrid 100 to 240 Vac and -48 Vdc (-36 to -72 Vdc) coexist fixed power supply or Single 125Vdc power plug-in module*
Temperature range from 0° to 75°C

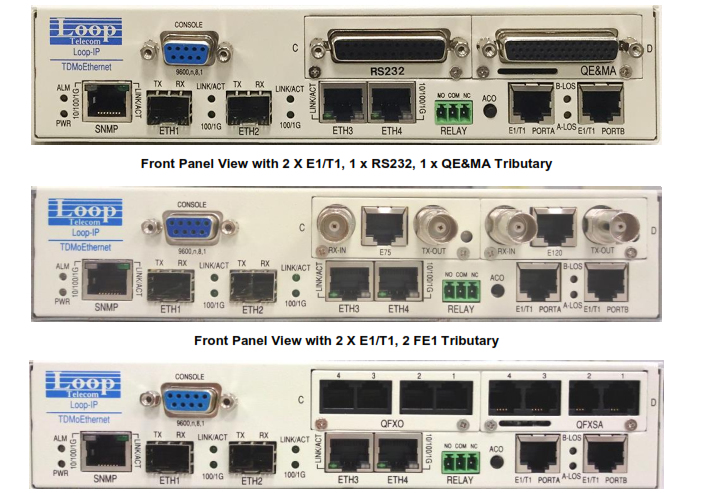

Ethernet Interface
Four Ethernet ports for WAN or LAN port by software
configuration
Two Gigabit Ethernet (GbE) with 2 SFP housing
Two 10/100/1000 BaseT Ethernet
IEEE 802.3ad Ethernet Link Aggregation*
Timing
Internal/Line
Adaptive Clock Recovery for TDM Pseudowires
Jitter and Wander conforms to G.823/824 for Traffic Interface
SyncE
Management
SNMPv1/v3
DB-9 Console port with VT-100 menu
Telnet and SSH v2
iNET GUI
L2 Switching
VLAN
Maximum 4094 concurrent VLAN Groups
Support C-VLAN/S-VLAN tag adding and removing on Pseudowire
Support 802.1q Port-Based VLAN on Ethernet/SNMP Port
Support Q-in-Q
Support 802.1q Port-Based VLAN on Ethernet/SNMP Port
Support Q-in-Q
Support 802.1d MAC Learning
Support 803.3x Flow control* on input ports
Support 802.1D STP, 802.1w RSTP, 802.1s MSTP*
Support IGMP Snoopingv2 (RFC 2236)*
Jumbo frame up to 10k bytes
IS-IS Packet transparency*
Tributary Interface
Up to four T1/E1 ports per module with a max of 2 modules plus 2 T1/E1 on main board giving a maximum capacity of 10 T1/E1.
Prices depend upon configuration options and interface cards selected. Please call for configuration specific
pricing at 800-432-2638 or 217-897-6600 or contact us using the Internet form. The downloadable data sheet contains additional detailed ordering specifications.
