T1 via Ethernet with the Loop IP-6704A TDMoE from DCB

---

Transport up to 10 T1s through Ethernet via Pseudowire Protocol

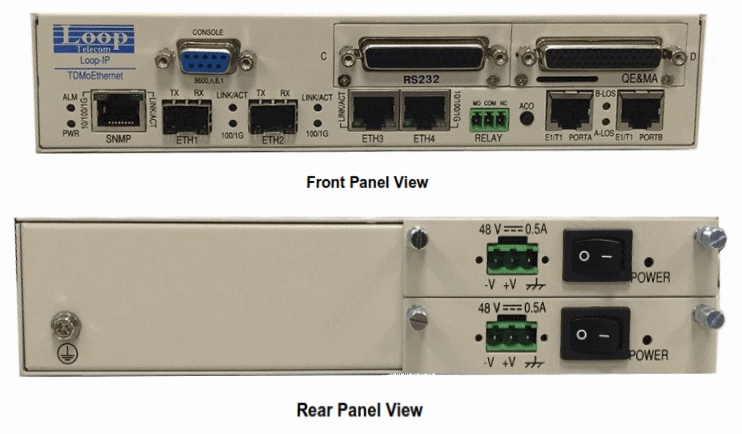

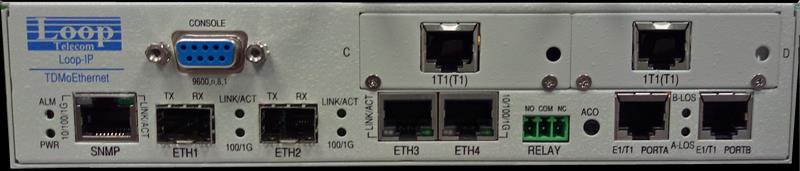

IP-6704A Front Panel

Supports SATOP, CESoPSN and MEF8 (CESoETH) Ideal for Power Grid Teleprotection Transport Up to ten T1/E1 ports Redundant DC power or AC Power Input Four Gigabit Ethernet Ports for WAN port assignment (two with SFP) Management via SNMP, Console, Telnet, iNET GUI Multiple DTE interfaces available Up to 32 concurrent Pseudowires Supports VLAN, Jumbo frames

Description Specifications Ethernet Interface Tributary Interface Timing OAM QoS Pseudowires L2 Switching Management Standards Mechanical Downloadable Data Sheet How to Order Applications

DESCRIPTION

The Loop-IP6704A TDMoEthernet is an ideal solution for service providers to build their network and achieve a fast return on investment. Currently providers need to transport both TDM and Packet traffic. These can be achieved using the E1/T1* and Gigabit Ethernet tributary ports of the IP6704A.

Teleprotection is an important technology for mission-critical communications in power grid networks. This technology monitors the health of the power grid, isolates faults and helps prevent serious risks, power disruption, and equpment damage. Teleprotection requires low delay, low jitter and low asymmetry The IP6704 delivers these requirements.

The Loop-IP6704A device supports many interfaces such as E1/FE1, T1/FT1, E&M, X.21, RS232, V.35, EIA530 and C37.94 plus an option DACS (DS0 Cross Connect) feature. IP6704A is an ideal and economical solution for establishing an effective teleprotection system.

The Loop-IP6704A device allows operators to transport E1 ,T1, E&M, X.21, or RS232 data stream with timing information over PSN (Packet Switched Network) via Pseudowire Protocol – SAToP/CESoPSN/MEF8. Another IP6704A converts the received packet stream back to original E1, T1, E&M, X.21 or RS232 data stream with original timing information. This allows cost-effective migration from existing legacy TDM networks to existing PSN.

Jitter and Wander adheres to G.823/G.824 Traffic Interface for transport of TDM signals.

SPECIFICATIONS

Ethernet Interfaces

• Four Ethernet ports for WAN port assignment
  • Two Gigabit Ethernet (GbE) with 2 SFP housing
  • Two 10/100/1000 BaseT Ethernet
• IEEE 802.3ad Ethernet Link Aggregation*

Tributary Interfaces

• Up to one E1/T1 port or ten E1/T1 ports
• T1 Tributary Interface Module
  • Line Rate: 1.544 Mbps ± 32 ppm
  • Line Code: AMI / B8ZS
  • Framing: D4 / ESF/ ESF&T1.403/ OFF (clear channel)
  • Output Signal: DS1
  • Input Signal: DS1
  • Pulse Template: Per AT&T TR 62411
  • Connector: RJ48C
• E1 Tributary Interface Module
  • Line Rate: 2.048 Mbps ± 50 ppm
  • Line Code: HDB3 / AMI
  • Framing: ITU G.704 (CRC: on/off, CAS: on/off, unframed)
  • Output Signal: ITU G.703
  • Input Signal: ITU G.703
  • Jitter: ITU G.823
  • Connector: RJ48C
• Up to two single port DTE modules:
  • X.21 or RS232/V.24 or V.35* or EIA530
• Up to 2 voice modules:
  • Four ports E&M
  • Four ports FXS
  • Four ports FXO
  • Four ports Magneto
  • Supports Echo Cancellation

Timing

• Internal/Line
• Adaptive Clock Recovery for TDM Pseudowires
• Jitter and Wander conforms to G.823/824 for Traffic Interface

T1/E1 OAM

• RFC-2495: LOS, LOF, LCV, RAI, AIS, FEBE*, BES, DM, ES, SES, UAS and LOMF*

QOS

• Ingress Rate Limiting per Ethernet port with 64kbps/1Mbps/10Mbps granularity
• Ethernet Network Level:
  • 3-bit Priority Code Point – PCP field within 802.1P/802.1Q Ethernet frame – CoS
  • 4 priority queues per port
• IP Network Level:
  • 6-bit DiffServ Code Point -DSCP field – ToS
• Scheduling Algorithm
  • Strict Priority (SP)
  • Weighted Round Robin (WRR)

TDM Pseudowires

• Up to 32 concurrent pseudowires
  • Pseudowire protocols
  • SAToP
  • CESoPSN
  • MEF-8 (CESoETH)
• Packet Delay Variation Compensation Depth up to 256 ms

L2 Switching

• VLAN
  • Maximum 4094 concurrent VLAN Groups
  • Support C-VLAN/S-VLAN tag adding and removing on Pseudowire
  • Support 802.1q Port-Based VLAN on Ethernet/SNMP Port
  • Support Q-in-Q
• Support 802.1d MAC Learning
• Support 803.3x Flow control on input ports
• Support 802.1D STP, 802.1w RSTP, 802.1s MSTP
• Support IGMP Snoopingv2 (RFC 2236)
• Jumbo frame up to 10k bytes
• IS-IS Packet transparency

Management

• SNMPv1/v3
• Console RS232 port and NMSRJ45 port
• Telnet and SSHv1/v2
• iNET GUI

Mechanical

• Dimensions(W x H x D) 213 mm x 41 mm x 290 mm (8.39" x 1.61" x 11.42")
• Power module: Up to two DC plug-in modules or one AC fixed power module
  • DC Power module 48V (-42 to -56 VDC)
  • AC Power module 100 to 240 Vac, 50 to 60 Hz
  • DC Power Module 125V
  • Power consumption < 15 W
• Temperature: 0° to 55°C (non-condensing RH)
• Mounting: Rack mount, wall mount, desktop stackable

Standards Compliance

• IEEE: 802.1d, 802.1p, 802.1q, 802.1s, 802.1w, 802.1ad, 802.3ad
• IETF: RFC2236, RFC2495, RFC4553, RFC5086
• MEF: 9-CESoETH
• ITU: G.823/G.824
• Certifications: EN55022 Class A, EN50024, FCC Part 15 Subpart B Class A, EN60950-1(CE)

Applications

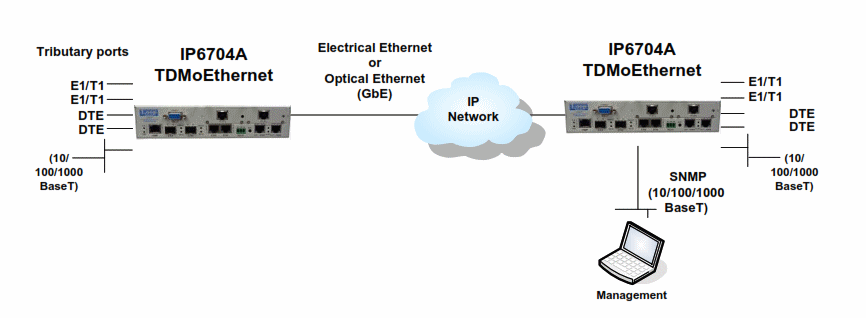

The IP6704 transports TDM through packet switched networks. It is commonly used to extend T1, E1, RS232 and voice circuits over Ethernet and for teleprotection transport.

How to Order

Prices depend upon configuration options and interface cards selected. Please call for configuration specific pricing at 800-432-2638 or 217-897-6600 or contact us using the Internet form. The downloadable data sheet contains additional detailed ordering specifications.
