<h2>T1 Inverse Multiplexer to Gigabit Ethernet</h2>

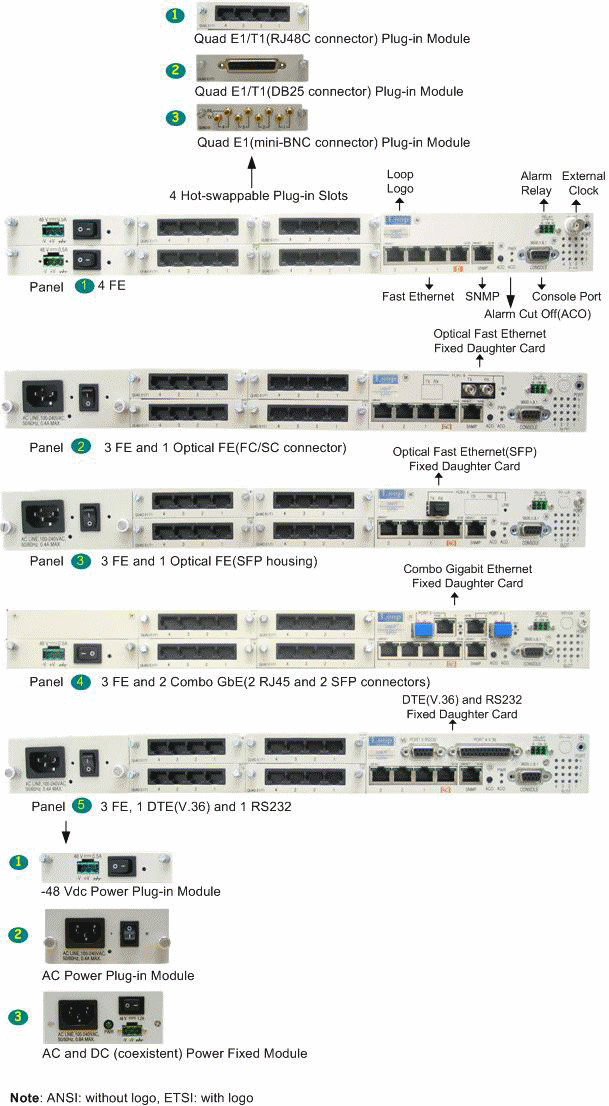

Front Panel Configurations

Features
Description
Specifications

How to Order
Applications

1U height, ETSI unit(full front access) or ANSI unit(front and back access)
Rack mount, wall mount, and stand-alone
WAN ports: Up to 16 E1/T1
(4 slots, 4 E1/T1 ports per hot plug in card)
E1/T1 is software configurable
Tributary ports
- Fixed on main board
  - Up to 4 10/100 Fast Ethernet(FE) on Main Board
  - Optional daughter cards with Optical FE, FE(SFP housing), dual Combo Gigabit Ethernet,(RJ45 and 2SFP), DTE(V.36 and RS232. Optional interfaces may be V.36/RS449, V.35, EIA530, or X.21
Power modules
- Hot-swappable -48 Vdc plug-in modules (-36 to -75 Vdc), dual for redundancy
- AC plug-in module(100 to 240 Vac), dual for redundancy(ANSI only)
- AC and DC(coexistent) fixed module(100 to 240 Vac and -36 to -75 Vdc)
WAN link with virtually concatenated n x E1/T1, where n can be 1 to 16
Encapsulation protocol: GFP, LAPS and PPP(without LCP)
Differential delay, up to 256ms for E1 and 384ms for T1
VLAN packet transparency
- Packet size up to 12,000 bytes
- IEEE 802.1ad Q-in-Q
Timing sources for primary and secondary clocks are any one of E1/T1, DTE*, internal, external

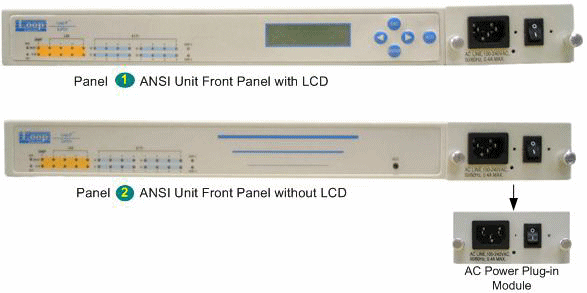

Management port and interface LCD with keypad on ANSI front panel
Console port, VT100 menu-driven
SNMP port, SNMPv1, Telnet via SNMP port
LoopView GUI EMS, Inband management in traffic bandwidth
RoHS Compliant

DESCRIPTION

The Loop-IP 6416 IP Inverse Multiplexer provides connectivity from 10/100/1000BaseT or GigE LAN through a T1 WAN using multiple T1 channels, Supports up to16 E1 links.

The Loop-IP6416 IP Inverse Mux is a media converter. It allows service providers to offer Ethernet services over the existing copper, optical or microwave infrastructure carrying the E1/T1 network. Up to 16 E1/T1 lines can be enabled and concatenated to form a single channel. Ethernet frames are mapped into this single concatenated channel.

The Loop-IP6416 offers up to 16 E1/T1 ports with an operational indicators for each port. It has automatic E1/T1 channel failure detection and can re-assign the number of E1/T1 channels transporting Ethernet traffic. For example, if there are 16 T1s configured for 10/100 Ethernet traffic transport, and one T1 fails during service, the other 15 will pick up the entire load. This minimizes the loss of IP packets.

Several power options exist including dual DC, front/back AC and hybrid AC/DC.

The Loop-IP6416 supports a console port, which allows users to execute in-service diagnostics and fault isolation from a local or remote terminal. The Loop-IP6416 also allows a remote site connection to Telnet via the Ethernet port. An Alarm Cut-Off(ACO) button is located on the panel.

SPECIFICATIONS

WAN - E1 Interface
Line Rate 2.048M bps ± 50 ppm
Line Code AMI/ HDB3
Framing ITU G.704
Output Signal ITU G.703
Input Signal ITU G.703
Connector RJ48C(120 ohm)
DB25(120 ohm) with optional conversion cable
mini BNC(75 ohm) with optional conversion cable
Jitter ITU G.823
WAN - T1 Interface
Line Rate 1.544M bps ± 32 ppm
Line Code AMI / B8ZS(selectable)
Framing D4 / ESF(selectable)
Output Signal DS1 with 0, -7.5, -15 dB LBO
Input Signal DS1 with 0 dB to -26 dB ALBO
Connector RJ48C
DB25 with optional conversion cable
Pulse Template Per AT&T TR 62411
Surge Protection FCC Part 68 SubPart D
Encapsulation Protocol
Layer 2 protocol: GFP, LAPS and PPP (without LCP)
Tributary-Fast Ethernet(FE)
Ethernet Functions 10/100BaseT, IEEE802.3
Auto-negotiation(10/100M)
Auto MDI/MDIX Full or half duplex
Connector RJ45
Ethernet Bridge Function
VLAN packet transparency(up to 12,000 bytes)
Support IEEE 802.1q VLAN Support IEEE 802.1ad Q-in-Q
SNMP Ethernet
Ethernet Functions 10/100BaseT, IEEE802.3
Auto-negotiation(10/100M)
Auto MDI/MDIX
Full or half duplex
Connector RJ45
Tributary-Optical Fast Ethernet
Speed 100M Base-FX
Connector FC/SC, LC
Tributary-Combo Gigabit Ethernet(GbE)
Speed 10/100/1000M bps
Connector RJ45 for twisted pair GbE, LC for optical GbE
Tributary-DTE(V.36)
Data Rate N x 64K bps(N = 1 to 128), 64K to 8.192M bps
Connector DB25 female, DCE interface
Optional Interfaces V.36/RS449(via DB25 male to DB37 female conversion cable)
V.35 compatible(DB25 female connector)
V.35 compatible(via DB25 male to M34 female conversion cable)
EIA530(DB25 female connector)
X.21(via DB25 male to DB15 female conversion cable)
Tributary-RS232
Data Rate Up to 19.2 Kbps, Asynchronous
Connector DB9S
Clock Source
Primary Clock E1/T1, DTE, internal, external BNC
External BNC is manufacture option. The type can be any one of a) 2.048M bps E1-120,
b) 2.048M bps E1-75 and c) 1.544M bps T1, which are software selectable
Secondary Clock E1/T1, DTE, internal, external(manufacture option)
Alarm Relay
Alarm Relay Fuse alarm and performance alarm
Management
LEDs Multi-color LEDs
ACO A button of alarm cut-off
LCD 2 line by 16 character LCD with keypad
Electrical: RS232, DCE
Protocol: Menu driven VT-100
Console Port
Connector: DB9S, female
Telnet Access via SNMP Ethernet port
SNMP SNMPv1
Inband Management Inband management in traffic bandwidth
Diagnostics Test
Loopbacks E1/T1 Line Loopback
Bert Off/QRSS/PRBS/2^11-1/2^23-1
Performance Monitor
E1/T1 Performance
Performance Store Last 24 hours performance in 15-minute intervals and last 7 days in 24-hour summary line, user
Performance Reports Date & Time, Errored Second, Unavailable Second, Bursty Errored Second, Severe Errored Second count.
Monitor Registers User, Line
Alarm History Alarm Type(i.e. Master Clock Loss, RAI, AIS, LOS, BPV, ES, UAS)
Alarm Queue Maximum 100 alarm records which record the latest alarm type, location, and date & time
Alarm Threshold BPV, ES, UAS
Power
AC Module 100 to 240 Vac
-48 Vdc Module -36 to -75 Vdc
AC and DC Module 100 to 240 Vac and -48 Vdc(-36 to -75 Vdc) fixed on panel
Power Consumption < 30 watts
Physical
Dimensions 438 mm x 44 mm x 228 mm(WxHxD)
Temperature 0 -50°C
Humidity 0-95% RH(non condensing)
Mounting Desk-top stackable, wall mount
Certification
EMC EN55022 Class A, EN55024, FCC Part 15 Class A
Safety EN60950-1, IEC60950-1
Standards Compliance
ITU-T G.703, G.704, G.705, G.775, G.806, G.823, G.7041/Y.1303, G.7042/Y.1305, G.7043/Y.1343, G.8021/Y.1341, G,8040/Y.1340
ATIS/ANSI T1.107
IEEE 802.3, 802.1q, 802.ad
IETF RFC1661

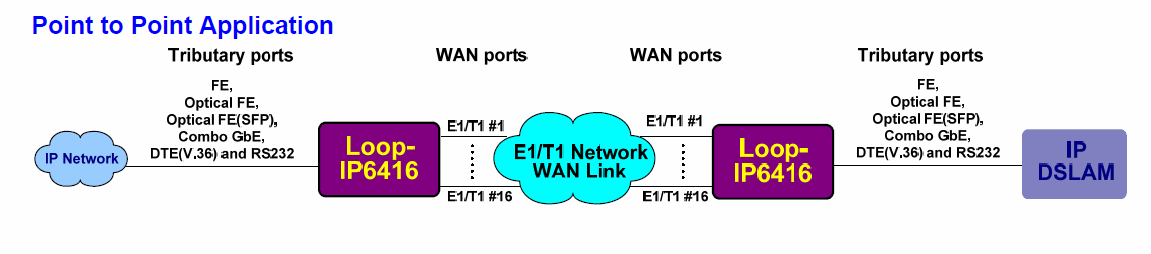

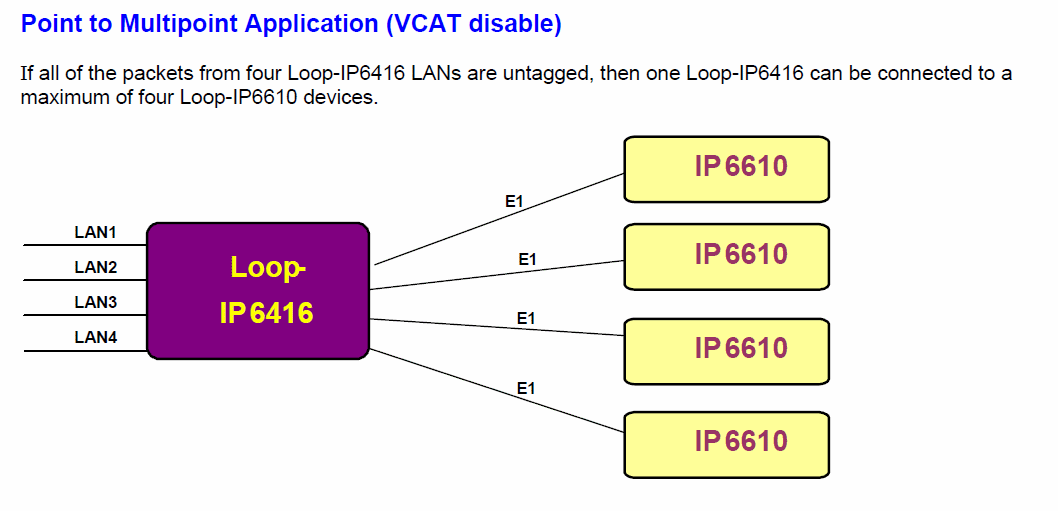

APPLICATIONS

The IP6416 is commonly used when a single T1 doesn't provide enough bandwidth to link remote high speed LAN locations and T3/OC-3 links are too expensive or unavailable.
