Loop-V 4200 MuxMaster Wideband IAD E1 to T1 Converter

Loop-V 4200-9
MuxMaster/ Wideband IAD
CSU/DSU, E1/T1 Converter, & DACS

The truly Integrated Access Device can support, control, and multiplex a wide variety of devices.

Features
	9 hot plug-in capable slots
	NEBS Certified
	Available plug-in types:
	T1, E1 interface cards
	V.35, EIA530, RS232, X.21 interface cards
	QFXS, QFXO, PLAR, E&M interface cards
	MDSL interface card
	T1/ E1 ATM Frame Relay interface cards
	Router interface card with Subnet management (SNMC)
	OCU DP interface card
	OCU DP interface card
	SNMP module
	Usable as a CSU/DSU, E1 to T1 converter, multiple CSUs, or a DACS.
	Full TSI capability among all slots in main unit.
	Remote diagnostic capabilities.
	2-line by 40-character LCD display for maintenance, performance monitoring, and administration.
	Management through Console port, Ethernet port, and SNMP agents.
	Inband Subnet Management facility for remote management through national networks.
	LED indicators for power, test, alarm, and each of 9 ports.
	Field changeable AC power supply, or dual feed dual DC power supply.
	Software field upgradeable through download.
	Optional GUI NMS with LoopView.

ISO9001

Description

The Loop-V 4200-9 is a versatile 9-port device. Depending on the plug-in cards selected, this unit can be configured (a) as a CSU/DSU with drop and insert and voice capabilities, (b) as a 4 E1 to 5 T1 converter or fractions of them, (c) as a digital cross-connect system (DACS), (d) as sets of ICSU combined in one box, and (e) as a channel bank. As a CSU/DSU, data from the V.35 or X.21 port can occupy any fraction of an E1 or T1 port. As an E1 to T1 converter, A to law and signaling conversions are correctly handled. For both E1 and T1 ports, continuous error checking, performance polling, and in-service diagnostics are provided. In any of the above combinations, full time slot interchange (TSI) among the ports are possible, making the Loop-V 4200-9 a small DACS (digital access cross-connect system). The ports can further be used in pairs as ICSUs (intelligent CSU) at lower cost and smaller space than individual ICSUs. Lastly, the Loop-V 4200 can be configured as a channel bank. The Loop-V 4200 is NEBS certified.

The Loop-V 4200-9 supports local control and diagnostics by using a 2-line by 40-character LCD display and keypads on the front panel, or by using a VT-100 terminal connected to the console port. The Loop-V 4200-9 also supports Ethernet, Telnet, and SNMP, so it can be controlled and diagnosed from remote locations. The Loop-V 4200-9 also supports inband Management, where management data is carried the same way as user data, traversing national networks.

In addition to the LCD display, 12 multicolor LEDs provide status indication for power, test condition, alarm, and each of the 9 ports. Internal firmware is stored in flash memory so that future software upgrades can be downloaded.

Ordering Information

To specify options, choose from list below:

Model	Description	Note
*Main Unit*
Loop-V 4200-9	Main unit w/ CPU and DCS, w/o power	Basic Chassis Manual
Low Speed Module (Select 1 to 9 cards.)
Loop-V 4200-T1	T1 interface card	Manual
Loop-V 4200-E1	E1 interface card	Manual
Loop-V 4200-V35	V.35/DB25 interface card	Manual
Loop-V 4200-E530	EIA530 interface card
Loop-V 4200-RS232	RS232 interface card
Loop-V 4200-X21	X.21 interface card
Loop-V 4200-QFXS	Quad FXS voice card (For AC, -48Vdc power supply only.)
Loop-V 4200-QFXO	Quad FXO voice card
Loop-V 4200-PLAR	PLAR voice card
Loop-V 4200-Q2EM-m-Tn	Quad 2 Wire E&M voice card (For AC, -48Vdc power supply only.)	Where m = B for normal E&M, or TO = A for tandem operation Where n = 1 to 5 of E&M Signaling Type = O for TO
Loop-V 4200-Q4EM-m-Tn	Quad 4 Wire E&M voice card (For AC, -48Vdc power supply only.)
Loop-V 4200-MDSL	Multi-rate SDSL
Loop-V 4200-AFRT	T1 Frame Relay to ATM inter-working or Frame Relay to Frame Relay concentration
Loop-V 4200-AFRE	E1 Frame Relay to ATM inter-working or Frame Relay to Frame Relay concentration
Loop-V 4200-RT	Dual LAN port (10 & 10/100 BaseT) Router card, w/ Subnet management (SNMC)
Loop-V 4200-ODP	OCU DP interface card
Loop-V 4200-SNMP	SNMP module	Optional
*Power Module*
Loop-V 4200-SA Loop-V 4200-SD24 Loop-V 4200-SD48 Loop-V 4200-DD24 Loop-V 4200-DD48	Single AC supply Single DC supply (24 Vdc) Single DC supply (48 Vdc) Dual feed dual DC supply (24 Vdc) Dual feed dual DC supply (48 Vdc)	Select one.
Loop-V 4200-TT24 Loop-V 4200-TT48	Temporary 24 Vdc power supply Temporary 48 Vdc power supply	For Power Supply replacement

For example:
Loop-V 4200-9	1 each
Loop-V 4200-T1	4 each
Loop-V 4200-E1	5 each
Loop-V 4200-SA	1 each
For model 4200 with 4T1 cards, 5 E1 cards and single AC power, no SNMP.

Loop-V 4200-9 MuxMaster/ Wideband IAD Product Specification

Time Slot Interchange

Less than 400 ms delay

One active map, one user stored map

Voice Channel Conversion

A-law to

law

G.711

CAS Signaling

Transparent, (A=0 from E1 becomes A=0 to T1, etc.)

Electrical Power

Field changable 30W 24Vdc or 30W 48Vdc power supply module

DC : 24Vdc, 3A Max

.......48 Vdc, 1.6A Max

AC: 90 to 240 Vac, 50/60 Hz, 2A Max.

*Physical*
Dimensions	43 x 4.4 x 33 cm, 17" x 1.75" x 13" (WxHxD)
Temperature range	0 - 50¢X C
Humidity	0 - 95% RH (non-condensing)
Mounting	Desk-top stackable, 19/23 inch rack mountable
Weight	7.7 lb., (3.5Kg) without plug-in cards

*Performance Monitor*
Performance Store	The last 24 hours performance in 15-minute intervals
Monitor Registers	Line, user
Performance Reports	Date & Time, Errored Second, Degraded Minutes, Unavailable Second, Bursty Errored Second, Severe Errored Second, Controlled Slip Second, and Loss of Frame Count
Alarm History	Date & Time, Alarm Type (i.e. Master Clock Loss, RAI, AIS, LOS, BPV, ES, CS)
Threshold	Bipolar Violation, Error Second, Unavailable Second, Controllered Slip Second

*Network Management*
Connector	DB9 at front panel
Electrical	RS232 interface
Protocol	Menu driven VT-100 terminal

*Ethernet Port (optional)*
Connector	RJ45 in rear
Protocol	Telnet and Embedded SNMP

Compliance

CISPR 22 Class A, EN55022 Class A, EN50081, EN50082, FCC Part 15, FCC Part 68, CS-03 Issue 8,

CE168X, NTR4, UL1950, CSA 22.2 No. 950, EN60950, NEBS Level 3: GR-1089-CORE, GR-63-CORE

*Front Panel*

Keypads	5 keys, ACO (alarm cut-off), left and right arrows, ESC, and ENTER
LCD	2 lines by 40 characters LCD display
LED	12 - one for each of 9 plug-in slots, power, test, and alarm
Bantam Jacks	Network IN, OUT, and Monitor

Rear Panel

Power module slot, Ethernet slot, and 9 signal slots.

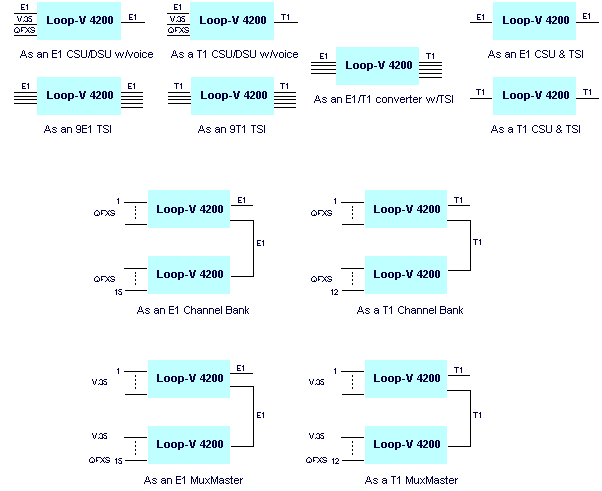

Applications Illustrations
