Loop V-4150 DS0 Cross Connect System

Loop-V4150 DS0 Cross Connect System


Front View
Loop-V4150 DCS with O9500 SDH/SONET IMAP

    Features

    • 6U height, full front access (ETSI) shelf
    • Hot-swappable cross-connect modules, tributary modules and power modules
    • Temperature controlled fan tray
    • Digital Cross-connect modules (controller modules)
      • System capacity support up to 1008E1/1344T1 DS0 non-blocking cross connect matrix
      • 1 + 1 protection
      • Type: Point to point and Broadcast
      • E1/T1 Signaling Conversion, A/μ Conversion
    • Tributary modules
      • 8 tributary slots
      • Dual ports STM-1/4 (OC-3/12) module*
      • 16/32/63 ports E1/T1 tributary module
    • Power Modules
      • DC module (-36 to -72 Vdc)
      • AC/DC hybrid module (100 to 240 Vac; -36 to 72 Vdc)
      • Dual power (1+ 1) protection
    • Protection
      • Protection switching time less than 50ms
      • Controller-DCS protection:1+1
      • Tributary protection
        • E1/T1: 1+1 and 1:1 per card and per port, 1:N(n=1 to 7) per card
        • B155/622: 1+1 MSP *
    • IPv4 and v6
    • External/Internal/Line timing source with SSM
    • Diagnostic: Test Access Path (TAP) with Monitor, Spilt and Release mode
    • Management
      • Console port, VT100 menu-driven
      • Dual SNMP port: support v1 and v3
      • Telnet
      • Centralized management with Loop’s EMS/NMS
      • LoopView GUI EMS Element Management System
      • TMN management (Loop-iNMS) with full FCAPS and end-to-end circuit management
      • SSH
    • RoHS compliant
    • DS0 mapping with DCB's award-winning MAP41 graphical mapping software!

Description

Loop-V4150 DS0 Cross Connect System is a standard compliant high density DCS systems with full T1/E1 and STM-1/4(OC-3/12) cross-connect rack system. The V4150 DS0 Cross Connect System designs to have full add and drop capability up to:

The capability up to:

  • 4 STM-4 (OC-12) tributaries
  • 16 STM-1 (OC-3)tributaries
  • 504 E1/T1 tributaries

With system capacity support up to 1008E1/1344T1 DS0 non-blocking cross connect matrix, the V4150 DS0 Cross Connect System can offer high density capacity up to 504E1/T1, 4 STM-4(OC-12), or 16 STM-1(OC-3). The V4150-DCS offers the service provider protection schemes including 1+1, 1:1 and 1:N protection for tributary cards.

All interfaces are fully compliant with the relevant ETSI standards and ITU recommendations. The V4150-DCS provides powerful Operation, Administration,

Maintenance and Provisioning (OAM&P) functionality, including fault management, performance monitoring, configuration management, and network security management. Through console port, LAN port, In-band E1, the OAM&P can be achieved both locally and remotely via SNMP or menu-driven interfaces.

General Specifications

For detailed information and ordering specifics on the many interface cards available for this product, please click here to download the 10 page printable data sheet.

Max Capacity of Cross-connect Module (DCS Card)

System capacity: supports up to 1008 E1/1344T1 DS0 non-blocking cross connect matrix
E1/T1 Signaling Conversion: Maximum 256 per group, 4 groups Maximum

Max Number of Tributary Modules

4 STM-4 (OC-12) tributaries
16 STM-1 (OC-3) tributaries
504 E1/T1 tributaries

E1 Interface

Line Rate 2.048 Mbps 50 ppm Jitter ITU G.823
Line Code AMI/HDB3 Framing Unframed, FAS with CRC enable/disable and MFAS with CRC enable/disable
Input Signal ITU G.703 Impedance 75 ohm coax or 120 ohm twisted pair
Output Signal ITU G.703
Output Mask ETS 300 689 Sec.4.2.1.2 ITU G.703
Connector: SCSI-II 68-pin
Four connectors for 63 ports
Two connectors for 32 ports
One connectors for 16 ports

T1 Interface

Line Rate 1.544 Mbps ± 32 ppm Jitter ITU G.824
Line Code AMI/B8ZS Framing Unframed, D4 and ESF
Input Signal ITU G.703 DSX-1 0dB to -6dB Impedance 100 ohm twisted pair
Output Signal ITU G.703 DSX-1 w/short (0-110, 110-220, 220-330, 330-440, 440-550, 550-660 (feet)
Output Mask Bellcore GR-499-core
Connectors: SCSI-II 68-pin (Four connectors for 63 ports, Two for 32 ports, One 16 ports

System Clock

Clock Source:
Internal clock
8 tributary clocks
2 external input clocks (ITU-T G.703 - 2.048 Mhz or E1 FAS/CRC, T1 for D4/ESF)
Clock Output: 2 external output clocks (ITU-T G.703 - 2.048 Mhz or E1 FAS/CRC, T1 for D4/ESF)

Management Interface

Multi-color LED Indicator
Console: RS232, DCE, DB9, female
User interface: Menu driven VT-100
Ethernet Connector: RJ-45
SNMP 10/100 Base T, SNMPv1, v3/Telnet/SSH
Centralized management with Loop's NMS

Alarm Input/Output

Inputs: 4 Ports, Activation current 3 mA, Internal resistance 1K, Deactivation current 1.5 mA, Connectors RJ45
Outputs: 4 Ports, Initial insul. resist. Min. 100M ohm (at 500Vdc), Connectors RJ45

Diagnostics

Test Access Port (TAP)

: Modes: Monitor, Spilt and Release mode, maximum 28 sets

B155/622 card (Future Option)


Loopback Test Local loopback, payload loopback, line loopback
BERT Test Optical interface Direction: to optical lines

E1/T1 card


Loopback Test Local loopback, line loopback, DS0 loopback
BERT Test E1/T1 interface Direction: to optical lines, to tributary lines, DS0: system side, line side

Performance Monitor

Performance Reports: Performance Parameters: Error Second (ES), Burst Error Second (BES), Severe Error Second (SES), Unavailable Second (UAS), BPV

Alarm History:

System Alarm: Alarm Cut Off, Power Loss/Uneqp, Fan Fail, Fan Module Uneqp, RBC Uneqp, Overheat, Timing Source Sync Loss, Logon and Logoff, Card Out, Card Type Mismatch, Card Port Number Mismatch, Card Fail, Card Registration, Trib Protection Sync, Standby XCU Takeover, Standby Trib Takeover, XCU Sync
Future Options: Optical Port Uneqp, XCU Port Uneqp SNCP Switch,MSP Switch, SFP Tx Fail, SFP Rx Fail, SFP Temperature
E1/T1 Alarm LOS, LOF, AIS, RAI, ES, SES, UAS

SDH/SONET

SDH

Line: PI-LOS, RS-LOF, RS-TIM, RS-BIP UAS, MS-SD, MS-SF, MS-AIS, MS-RDI, MS-BIP UAS, MS-REI, UAS
Ho-Path: AU-LOP, AU-AIS, HP-SD, HP-SF, HP-TIM, HP-UNEQ, HP-PLM, HP-RDI-S, HP-RDI-C, HP-RDI-P, HP-BIP UAS, HP-REI UAS, LOM
Lo-Path :TU-LOP, TU-AIS, LP-SD, LP-SF

SONET


Line: LOS-PI, LOF-S, TIM-S, BIP-S UAS, SD-L, SF-L, AIS-L, RDI-L , BIP-L UAS, REI-L UAS
STS-Path: LOP-P, AIS-P, SD-P, SF-P, TIM-P, UNEQ-P, PLMP, RDI-S-P, RDI-C-P, RDI-P-P, BIP-P UAS, REI-P, UAS, LOM
VT-Path: LOP-V, AIS-V, SD-V, SF-V
Alarm Queue Contains up to 300 alarm records of latest alarm types, alarm severity, date and time.

Power

AC and DC coexistent module: 100 to 240Vac, 50/60Hz, -48Vdc (-36 to -72Vdc); 3.6A Max
DC module -48Vdc (-36 to -72Vdc), 7A

Physical and Environmental

Dimension for 6U: 433 x 264 x 223.5mm (W/H/D)
Dimension for Air Flow Guide Rack: 433 x 44 x 223.5mm (WxHxD)
Dimension for Air Filter Rack A with cable management: 433 x 88 x 223.5mm (WxHxD)
Dimension for Relay Protection Shelf: 433 x 264 x 203.50 mm (W/H/D)
Dimension for Y-Box: 432 x 44 x 100 mm (Wx HxD)
Dimension for Conversion Panel:
RJ connector: 432 x 44 x 23mm (WxHxD)
WW connector: 432 x 44 x 40mm (WxHxD)
BNC connector: 432 x66 x 53mm (WxHxD)
Temperature: 0 to 50C
Humidity: 0-95%RH (non-condensing)
Mounting: Desk-top stackable, 19/23 inch rack mountable

Standards Compliance

ITU-T: G.703, G.823, G.824
ANSI: T1.105, T1.107
IEEE: 802.1w (RSTP), 802.3u

Certification

EMC FCC Part 15 Subpart B, Class A; EN 55022, Class A; EN55024; EN300 386
Safety IEC60950-1/EN 60-950-1

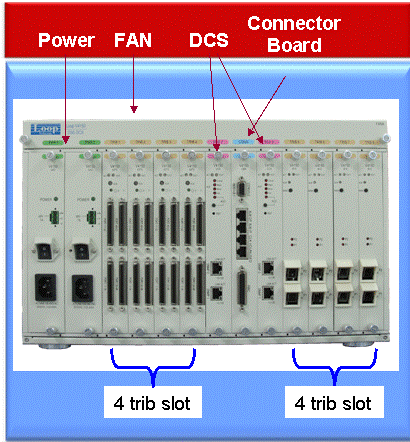

Typical Front Panel

Application Notes

Application Illustrations

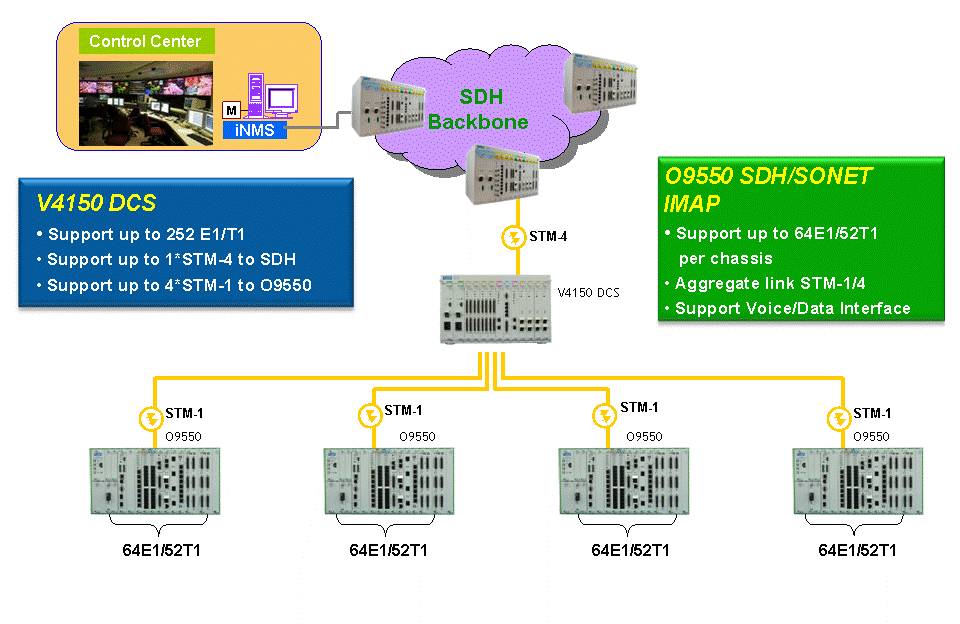

Loop-V4150 DCS with O9550 SDH/SONET IMAP


Ordering Information


Product order information is available on the downloadable detailed data sheet here.

Pricing: The price point of this versatile product is surprisingly low. Please call our toll free number: 800-432-2638 for pricing and additional ordering information.
