IP6690 - Dial-in Router with V.92 Modem

DESCRIPTION

Since each port is independent, the router has many uses in addition to the commonly used dial-in, dial-out and asynchronous LAN connection modes. It is commonly used as an easily configured stand-alone firewall router using NAT, port filtering, and address filtering.

The RS232 serial port operates at asynchronous speeds as low as 300 bps and as high as 230 Kbps.   The router may be used to link two separate remote sites with leased or dial connections, one port used for an ISP connection and the second for dial-in, each used for combined dial-in and dial-on-demand dial-out, or other convenient combinations.

The two ethernet LAN connections (one operating at 10BaseT and the other auto-switching at 10 or 100BaseT) may be configured on different LAN segments for DMZ routing, firewalling and port/address filtering, or used as a DSL or Cable modem adjunct for Network Address Translation (NAT) or PPPoE.

The IP-6690 also works well with DSL, cable or dial modems, leased line modems, CDPD or GSM modems, wireless links, satellite modems, or even simple line drivers.

Flexibility is the key. Routing may be configured between any combination of interfaces with full-featured port or address filtering, port forwarding, and NAT. The same port may even be configured for dial-out using dial-on-demand while accepting dial-in calls from portable computer users.   It's easily configured for "stay-online" dial connections, or auto-disconnects.

Configuration is quick and easy using a web browser.  The router uses three different configurations: a stored configuration, a working (running) configuration, and a pending configuration.  This method allows temporary configuration changes, testing, and remote configuration changes even via a PPP link on the router.  Configurations may be saved on a PC for later use, and the config file is editable on a PC.

On-board tools make network monitoring and troubleshooting convenient. Tools include a packet header sniffer, traceroute, ping, and dial tools (force a dial, force a disconnect). Logging may be configured as standard or with extreme details showing negotiations, modem responses, etc. .

One serial port may be used as a UDP terminal server. This functionality is compatible with DCB's EtherPoll products and is ideal for remote industrial installations.

The APS-01 remote AC power control easily integrates with the IP-6690. Remotely power up, down, and reboot remote equipment using the IP-6690 management web interface by plugging the APS-01 into the second serial port.

The IP-6690 is straight-forward, easy to configure and maintain.  The IP-6690 has the features you want without  the complexity.

SPECIFICATIONS

General

One asynchronous RS-232 serial port:

•  DE-9P (PC-9pin) connector
•  Speeds to 230 Kbps

One V.90 modem dial-in / dial-out port:

• RJ-11 telephone line connector

Two ethernet ports :

•  One 10/100BaseT
•  One 10BaseT

Protocol Features

• PPP, PPPoE, IP, DHCP (Server & Client), TCP, UDP, ICMP,
• Authentication: PAP, CHAP, MSCHAP (V1 and V2)
• Dial-On-Demand, inbound and outbound PPP (and combinations)
• DNS Proxy Server
• Auto-failover ISP dial backup dialing
• EtherPoll UDP terminal server functionality on Serial-A
• Auto-Disconnect timers
• Persistant Connection Option - Always on-line
• Network Address Translation (NAT), port filtering, port forwarding, address filtering firewalling
• Web browser configuration and management
• Default IP address:  192.168.0.1

Approvals:

• FCC
• UL (on 120VAC power supply
• Power Supplies have additional certifications as needed
• CE
• RoHS models available

Indicators

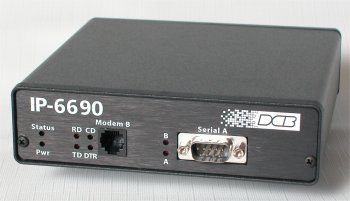

• Front - Power, Status, port activity (2), modem signals<4>

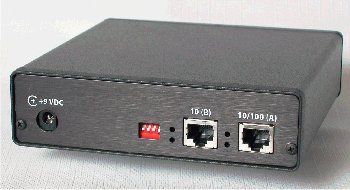

• Rear – LAN connection (2), LAN activity (2)


Controls   (DIP switch:)

•   Setup (initial setup using serial terminal)
•   Reset

Physical/Electrical

• Power requirements: 6 VDC standard power supply input (measured maximum consumption of 4.15 watts)
• 12, 24, 48, internal options and 125 VDC and 240 VAC external options are available
• Supplied with 120 VAC external power supply
•  5 1/2" W x 5 3/4" D x 1 1/2" H
• One pound

Environmental

• Operational Temperature: -40 to +75 C
• Storage Temperature: -50 to +75 C
• Humidity: <95% Non-condensing
• Power Supply Options may affect temperature specifications

Application Notes

Automated Dial-up Router and Bridge Connections Using Windows workstations

An application note that details one common method of automating the use of IP-6600 routers and ET-6600 bridges to dial multiple remote locations on a scheduled or automated basis.

IP-6600 Router Configuration Quickstart-- Configuring a Dial-Up Backup Link for a Broadband Connection

An application note that details the steps of configuring a pair of IP-6600 routers to perform automatic dial-up to back up a remote connection using dial modems. Includes a sample configuration for bench testing.
