Industrial Ethernet Switch HSW-08

HSW-08 Industrial Ethernet Switch

Industrial Temperate Rated 10/100BaseT Ethernet Switch

New Lower Price! Buy any quantity or model for $150 each.

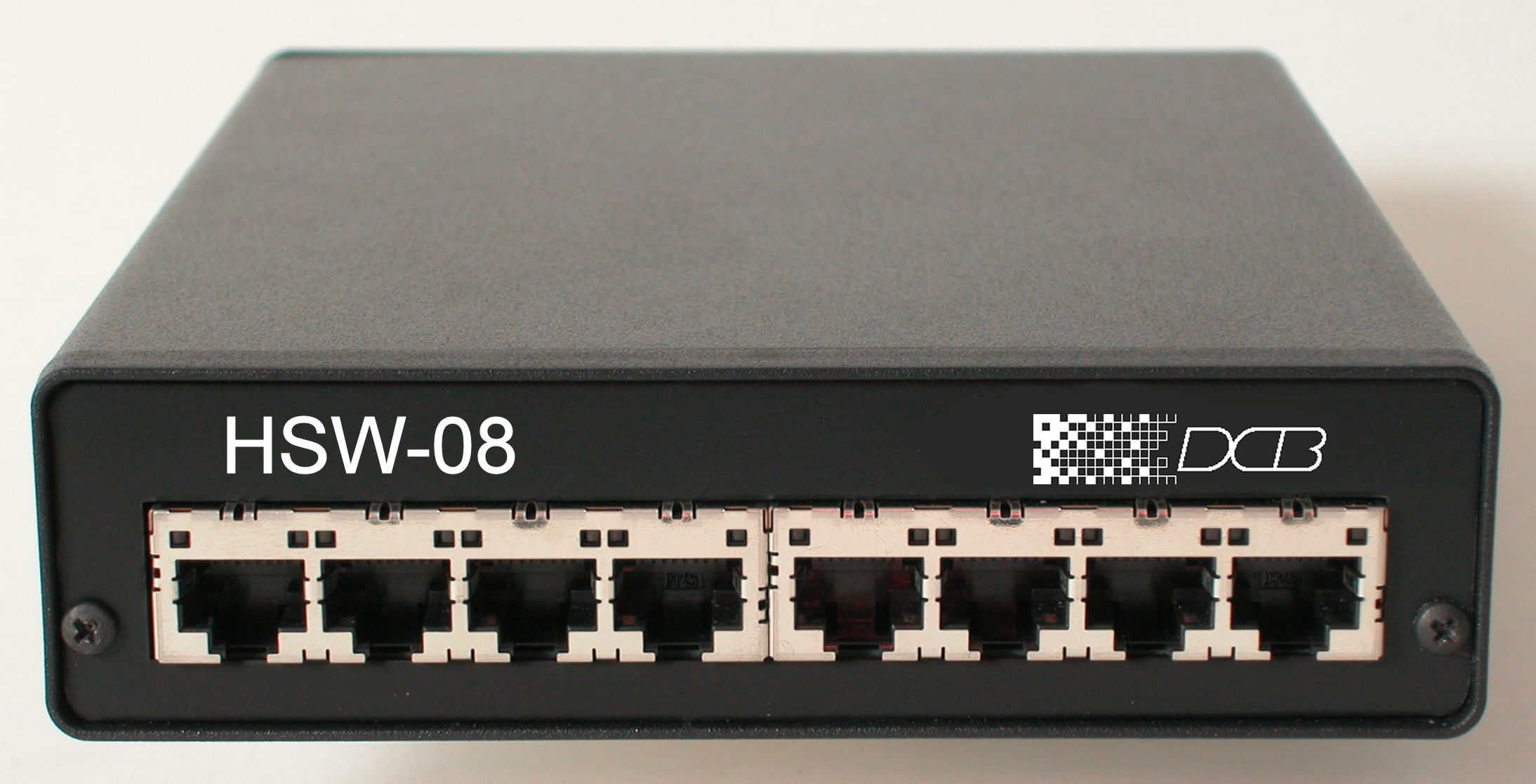

Front View

Industrial temperature rated -40 to +75 C

AC and DC power supply options

8 - 10/100BaseT Ethernet ports

Auto speed sensing

Auto full/half duplex sensing

Auto MDI/MDI-X cable crossover sensing

Supports 1536 byte VLAN packets

Supports full and half duplex Ethernet

Compact size, Stand-alone or Rack Mounting

DESCRIPTION

The HSW-08 is an 8-port Ethernet Switch, temperature rated for use from -40 to +75C.

The HSW-08, in addition to industrial temperature rating, has power supply options for 110 or 220 VAC, 12, 24, 48 and 125 VDC. The temperature range and voltage options make the HSW-08 an ideal ethernet switch for industrial applications.

The HSW-08 has 8 - 10/100 Ethernet ports with an integrated layer 2 switch. Internally, there are 128 K bytes of SRAM for frame buffering, and 2.0 Gbps memory bandwidth. The HSW-08 is capable of wire speed transmission. It supports 1,000 MAC address, address learning, address aging and address migration. The HSW-08 supports 1536 byte frames for passing VLAN tags.

The HSW-08 has 2 LEDs for each port to indicate connection, speed and activity, and a power indicator on the rear panel.

SPECIFICATIONS

8 ports, 10 BaseT, 100 BaseTX autosensing
Extended temperature range for industrial applications
2.0 Gbps high performance memory bandwidth
Wire speed transmit and receive
Supports 1536 byte frames for VLAN tag
Supports 802.3x flow control
Supports full and half duplex
Supports MDI/MDI-X autocrossover
Learns up to 1,000 MAC addresses

Indicators

Rear - Power
Front - Link and Activity for each port

Physical/Electrical

Power requirements: 12VDC, 900 ma (nominal), 120VAC unit supplied with wall-mount power supply
12, 24, 48, 125 VDC and 240 VAC options are available
Supplied with 120 VAC external supply
Optional DIN rail mounting available
Size: 7 ¼” x 5 ½” x 1 ¾”
One pound

Environmental

Operating Temp: -40 to +75 C
Humidity: Less than 95% Non-condensing

APPLICATIONS

Utilities
Gas and oil production, pipelines
Retail Stores, credit card reader
Law Enforcement – Remote offices
Medical
Building Automation and Controls
Financial industry
Remote office with more than one ethernet device

Item Number	Description	Price	Buy Now!
Need it fast? Buy on-line or call toll free 800-432-2638!
HSW-08	Hardened 10/100BaseT Ethernet Switch, 120VAC power supply included	$ 150	Qty:
HSW08-12VDC	Hardened Ethernet Switch, 12 VDC (9-18 VDC) powered	$ 150	Qty:
HSW08-24VDC	Hardened Ethernet Switch, 24 VDC (18-36VDC) powered	$ 150	Qty:
HSW08-48VDC	Hardened Ethernet Switch, -48 VDC (36-72VDC) powered	$ 150	Qty:
HSW08-125VDC	Hardened Ethernet Switch, 125 VDC powered	$ 150	Qty:
9902090	Optional DIN rail mounting clips	$ 5	Qty:
