D-Series Industrial Dial-up Modem

Metal enclosure, stand alone or rack mounting Industrial temperature rating (-40 to +70C) Two-wire dial-up modem 56 K (V.90) modem DB-25 serial asynchronous interface LEDs for Power, TxD, RxD, DTR, DCD Ideal for remote data collection applications, SCADA, back-up links, and remote controls. Powered by 9,12,24,-48 VDC, or 120/240 VAC (external wall mount AC supply standard) Current production, current stock

Features
Description
Specifications

General
Indicators (front panel)
Commands
Physical/Electrical
Options

Download the Manual

Features

• Metal enclosure, stand alone or rack mounting <
• Industrial temperature rating (-40 to +70C)
• Two-wire dial-up modem
• 56 K (V.90) modem
• DB-25 serial asynchronous interface
• LEDs for Power, TxD, RxD, DTR, DCD
• Ideal for remote data collection applications, SCADA, back-up links, and remote controls.
• Powered by 9,12,24,-48 VDC, or 120/240 VAC (external wall mount AC supply standard)

DESCRIPTION

Applications for the D-Series modems include those industrial strength applications where a rack mounting is required. a metal enclosure is required, or where the power source available is DC, rather than an AC wall outlet. It is ideal for telco installation, SCADA remote sites, or ISP POP locations. This is a current production product and DCB support is long-term.

These are not repackaged consumer grade modems. Designed from the ground up for our industrial customers, they are also more reliable on marginal phone lines than commonly used "retail store" modems.

The D-series modems are avialable in domestic (USA) or international versions with agency approval for most contries.

A unique optional version is the "Processor" model D-series modem. This unit adds an additional processor to the modem that allows unique command sets to be emulated or programmed into the modem. Most often used to emulate command sets from obsolete modems or other devices, this is a custom feature that requires factory programming for the required changes and volume commitment.

SPECIFICATIONS

General

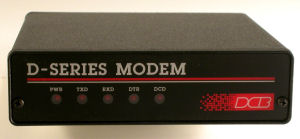

Indicators (front panel)

• Modem Power, TxD, RxD, DTR, DCD

Commands

• AT command Set

Physical/Electrical

• Power requirements: 9 to 12 VDC, typically 220 ma. ( standard model supplied with 120 VAC external power supply rated at 500 ma., 22 Watts)
• Power connector is either coaxal connector or screw connectors (depends upon power supply option)
• 12, 24, or -48 VDC or 120/220 VAC power supply available
• 5.75" x 1.45" x .5.5"
• Rack mount bezel available for 1, 2 or 3 units per 1U rack height
• Temperature -40 to +70 C, (AC power supply options may result in different temperature ratings)
• Weight, one pound

Options

• 1U single unit rack mount bezel
• 1U three unit rack mount
• 12 VDC, 24 VDC, -48 VDC, or multiple-voltage AC Power Supply

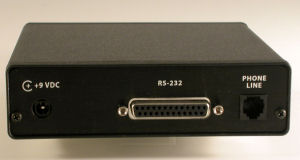

Rear View of D Series Modem (AC Version)

Rack Mount Bezels
