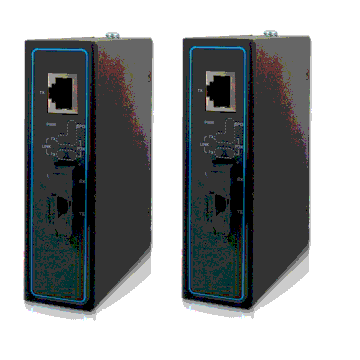

Ethernet-to-Fiber Media Converter

Converts Copper Ethernet to Multi-mode or Single-mode Fiber

Suports Auto MDI/MDI-X
Single-Mode or Multi-Mode fiber
Economical 100BaseTx or 1000BaseTx (Gigabit) models
EF23-G Gb model: Multi-mode distance up to 500M, single-mode distance up to 10KM
EF23 100 Mb model: Single-mode distance up to 2kM, single-mode distance up to 30 KM.
Compact Size, DIN rail moutable
Redundant power inputs
Wide range, 6 to 48 VDC, 120 VAC power supply optional
Wide Temperature Rated -10 to +70 C

DESCRIPTION

The EF23G Gigabit industrial media converter provides industrial media conversion between 1000BaseT(X) and 1000BaseFX (SC connector or SFP Slot).

The EF23 100 Mbit industrial media converters provide industrial media conversion between 10/100BaseT(X) and 100BaseFX SC connector.

Connection options include multi-mode SC connector (500m) and single-mode SC connector (10km). The EF23G Series media converter is designed for harsh industrial environments with an operating temperature range from -10 to 70°C and complies with FCC/CE standards.

SPECIFICATIONS

General

Connectors:
- Removable 3-pin screw terminal block power connection, Reverse polarity protected
- SC Fiber Connectors
- 100 BaseT and 1000BaseT Ethernet Models
Size: 1.26" x 3.54" x 4.33"
Environmental: -10 to +70 C operation ; 040C ~85C storage
Indicators: Power, Tx_LINK, Tx_Activity, FX_Link/Activity
Power Requirements: 6 to 48 VDC, 3 watts; 120 VAC power supply optional
Power Consumption under 3 watt (measured 0.5 a @ 6 VDC)
Weight: 510 g
DIN rail mounting

Item Number	Description	Price	Buy Now!
Questions? Phone us toll free at 800-432-2638 Order On-line or via Phone!
EF-23-1Fm-SC-2	Ethernet to Multi-Mode Fiber Converter	$89	Qty:
EF23-1-1Fs-SC-30	Ethernet to single-Mode Fiber Converter	$ 99	Qty:
EF23-1G-1Fm-SC-550m	Gigabit Ethernet to Multi-Mode Fiber Converter	$ 129	Qty:
EF23-1G-1Sm-SC-10	Gigabit Ethernet to Single Mode Fiber Converter	$ 139	Qty:
9001161	120 Volt AC to 12 VDC wall mount power supply	$ 15	Qty:
