9502204, 9502237,9502238 HD44 to Four RJ45 Adapter for Loop Quad Mini E&M cards


Features

  • Adapts HD44 connector to 4 - RJ45 E&M ports
  • Use with the 4 Port E&M Mini cards for the Loop AM3440,IP6704, and G7800 chassis
  • Easier cable connections
  • No cable pigtails requried
  • Simplifies wiring
  • Compact Size

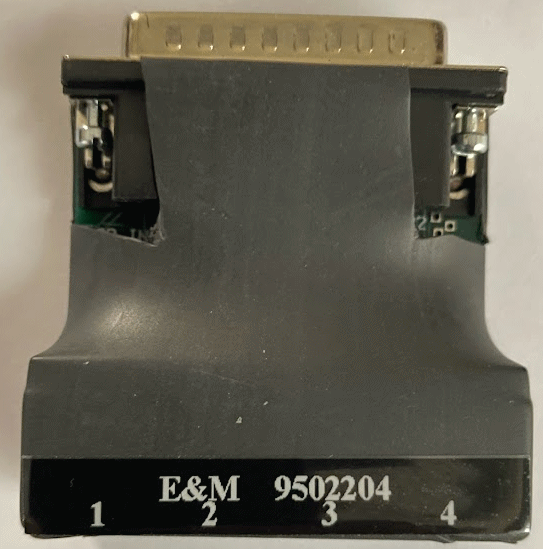

9502204 Adapter
9502238 Adapter
9502237 Adapter

Description
Specifications
How To Order
General
Pin Out Wiring
Application Notes and Manual Download

DESCRIPTION

These are accessory parts for the Loop quad port E&M mini card (QEMA). The QEMA mini-card can be used in the AM3440, IP6704A and G7800 chassis. The QEMA mini-card has a high density 44 pin D-style connector and ships with an HD44 to 4-RJ45 fan out cable with RJ45 male plugs on the cable ends.

These adapt the HD44 to 4 – RJ45 female jack connectors allowing for easy connection of RJ45 cables directly into the connectors with no RJ45 couplers or patch panels required.

When using multiples of these adapters with the AM3440 D and E chassis or the IP6704A you will need to use a combination of center bias with left or right bias adapters in adjacent slots.

SPECIFICATIONS

General

Connectors: One HD44 male connector to four RJ45 connectors on a circuit board with screws to fasten to the Loop interface card.


RJ45 Connector Pin Outs

Pin # Description
1 SB
2 M
3 RING 1
4 RING
5 TIP
6 TIP 1
7 E
8 SG



APPLICATIONS

How it works

Simply plug one adapter to each HD-44 connector on the interface card and secure with locking screws. RJ-45 cables plug into the adapters. You need the proper bias for the left, center, and right HD-44 connectors.

This data sheet is the manual for this product. Click here to download a PDF copy of this data sheet.

Questions? Phone us toll free at 800-432-2638

Due to the nature of this product,
we prefer that you phone us and discuss your application prior to ordering this product.
Item Number Description Price Buy Now!
9502204 Center Position HD44 to RJ45 Adapter for Loop 4 port Mini E&M Interface (Sold individually, you may need two per card) $ 41 Qty:
9502238 Left Bias Position HD44 to RJ45 Adapter for Loop 4 port Mini E&M Interface (Sold individually) $ 41 Qty:
9502237 Right Bias Position HD44 to RJ45 Adapter for Loop 4 port Mini E&M Interface (Sold individually) $ 41 Qty:
