IP-6100 High Speed Ethernet Bridge

IP-6100 High Speed Ethernet Bridge -- 100 Base-T Full Duplex Ethernet to DS3 or E3 Networks

This product is no longer manufactured and is unavailable. There is no direct replacement.

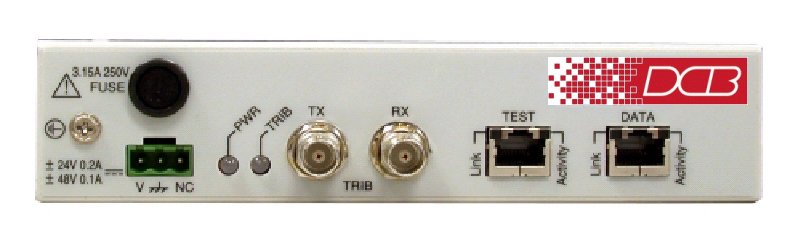

Front View

100 Base-T full duplex Ethernet in accordance with IEEE 802.3u via 1 RJ45 port
Throughput data rate of 42/32 Mbps (DS3/E3)
Succinct status and diagnostic features using LEDs and built-in self-test algorithm
Alarm Relay
Supports VLAN transparency (no VLAN processing)
Supports MPLS (Multi Protocol Label Switching) transparency
Supports ISL (ISL inter-link switching) transparency
Supports Auto Negotiation
Supports IPX transparency
Small size - 1.75 x 7.5 x 6.5 in /44.5 x 190.5 x 165 mm (HxWxD)
Interfaces to standard DS3/E3
Economical

Features
Description
Specifications
Data (Ethernet)Interface
High Speed (DS3 / E3) Interface
Indicators
Electrical
Mechanical
Operating Environment
Compliance
Alarm
How to Order
Applications

FEATURES

100 Base-T full duplex Ethernet in accordance with IEEE 802.3u via 1 RJ45 port

Throughput data rate of 42/32 Mbps (DS3/E3)

Succinct status and diagnostic features using LEDs and built-in self-test algorithm

Alarm Relay

Supports VLAN transparency (no VLAN processing)

Supports MPLS (Multi Protocol Label Switching) transparency

Supports ISL (ISL inter-link switching) transparency

Supports Auto Negotiation

Supports IPX transparency

Small size - 1.75 x 7.5 x 6.5 in /44.5 x 190.5 x 165 mm (HxWxD)

Interfaces to standard DS3/E3

Economical

DESCRIPTION

The IP-6100 High Speed Ethernet Interface Unit provides connectivity from high speed 100 BaseT full duplex Ethernet to either DS3 or E3 networks. A small, economical, reliable way to transport 100BaseT Ethernet traffic via DS3 or E3 networks.

The 6100 requires an unframed, non-channelized DS3 link. It will not operate over DS3 links that have any any type of framing such as M13, M23, C-bit, or SYNTRAN.

SPECIFICATIONS

Data (Ethernet) Interface

Full Duplex IEEE 802.3u
100 Base-Tx
Flow Control IEEE 802.3x (EIU performance is optimized when 8702.3x is used)
Supports Auto Negotiation (for 100M only)
Supports IPX
1 x RJ45 Port

High Speed Interface

DS3: Bellcore TR-303
E3: ITU-R G.703
B3Zs for DS3, HDB3 for E3
BNC, 75 ohm interface
The 6100 requires an unframed, non-channelized DS3 link. It will not operate over DS3 links that have any any type of framing such as M13, M23, C-bit, or SYNTRAN.

Indicators

Power On Status LED
DS-3 Link Status LED
Ethernet Traffic Status LED
Ethernet Link Status LED

Electrical

Input Voltage +/- 22 to 72 Vdc
Polarity (DC) Positive or negative ground
Power Consumption Less than 5 watts
Protection Circuit 3.15 A Slow-BLow fuse
120/240 VAC adapter availalbe

Mechanical

Width 7.5 In / 190.5 mm
Height 1.75 in / 44.5 mm (1-U)
Depth 6.5 in / 165 mm
Weight 3 lbs / 1.4 Kg

Operating Environment

Altitude Max 15,000 ft / 5000 m
Temperature -10 to + 55 C
Reliability Unit MTBF 15 years
EMC FCC Part 15 Class 2
Safety UL 1950
Operation ETS 300 -19 Class 3.2
Storage ETS 300 019 Class 1.2
Transportation ETS 300 -19 Class 2.3

Compliance

For DS3 EMC FCC 15 Class A, Safety UL 1950
For E3 EMC (EN55022, EN55024), Safety EN60950

Alarm Relay

Alarm Relay, NC , NO

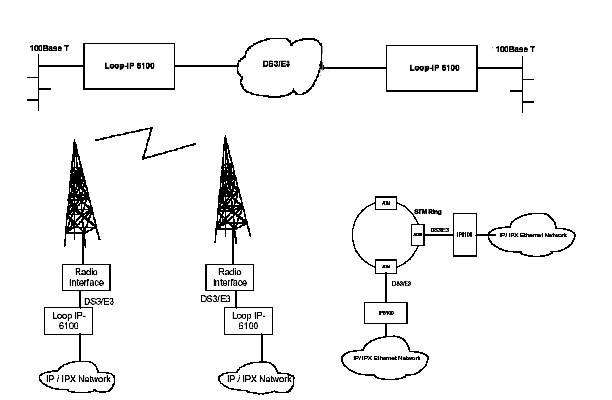

APPLICATION

How to Order

Model	Description	Price
IP-6100-DS3-R	IP-6100 DS-3 Interface with Alarm Relay	$ 1,370
IP-6100-E3-R	IP-6100 E-3 with Alarm Relay	$ 1,370
IP-6100- 120VAC	120VAC Power Supply	$ 50
