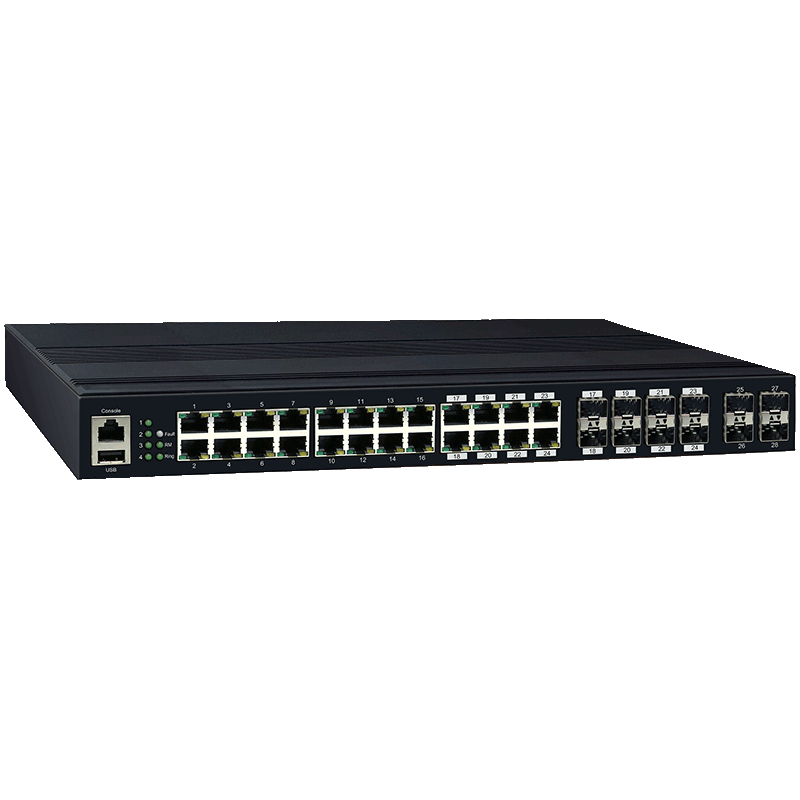

Managed Gigabit Ethernet Switch with 16 GigE + 8 Gig-Combo + 4 Fiber SFP Ports

MS-24-4GS-8C Switch

Compliant with IEC61850-3 and IEEE1613 RSTP, MSTP, ERPS, LACP for Network Redundancy 16x Gigabit Ethernet ports 8x Gigabit combo Ethernet 4x 1000 fiber SFP Slot Built for harsh environments and wide temperature range application QoS CoS/DSCP to increase determinism Supports IGMP Snooping v1/v2/v3, up to 1023 groups DHCP Relay Option 82 for policies IP address assignment SNMP v1/v2c/v3 for network management Supports Storm Protection USB storage for configuration-free replacement Support industrial automation protocols Ethernet/IP and Modbus TCP Fanless

DESCRIPTION
SPECIFICATIONS

Standards
Switch Properties
Interfaces
Software Features
Power
Mechanical
Environmental
Regulatory
Download printable data sheet
Download the Manual
APPLICATION

HOW TO ORDER

DESCRIPTION

This critical infrastructure gigabit switch features sixteen gigabit ethernet ports, eight gigabit combo (fiber and coper) SFP ethernet port and four 1000 fiber SFP ports in a 1-U rack mount.

Power supply options are all redundant featuring AC, 24 VDC, and 48 VDC. Network redundancy support all major technologies... RSTP, MSTP, ERPS, and LACP. Easily managed with SNMP, Web client, Telent, Serial console, Relay Option 82, and uPNP. Security is provided by 802.1X, RADIUS, TACACS+, SSL, SSH. QoS includes CoS, SCP, WRR/SPQ Queueing, and storm protection. Alarms and warning provided for low voltage, high voltage, temperature, current, transmit/receive power, and external digital input.

A robust substation-quality switch at an easy to justify price.

SPECIFICATIONS

• MTBF: >100,000 hours
• Warranty: 5 years

Standards

• IEEE 802.3 10BaseT
• IEEE 802.3u 100BaseTX
• IEEE 802.3ab 1000BaseT
• IEEE 802.3z 1000BaseX
• IEEE 802.3x Flow Control
• IEEE 802.3ad/802.1AX LACP
• IEEE 802.1D Spanning Tree Protocol
• IEEE 802.1w Rapid STP
• IEEE 802.1s Multiple STP
• ITU-T G.8032 / Y.1344 ERPS
• IEEE 802.1Q VLAN Tagging
• IEEE 802.1ad Stacked VLANs
• IEEE 802.1p Class of Service
• IEEE 802.1X Network Authentication
• IEEE 802.1AB LLDP

Switch Properties

• Priority Queues: 8 Queues
• Jumbo Frame: 12000bytes
• MAC Table Size: 16K
• VLAN Table Size: 4094
• IGMP Group: 1023
• Packet Buffer: 12Mbits
• Processing Type: Store and Forward

Interfaces

• RJ45 Ports: 16x 10/100/1000T(x), auto negotiation speed duplex mode, auto MDI/MDI-X
• Combo Ports: 8x 10/100/1000T(x) with dual speed SFP combo port, auto media detect
• Fiber Ports: 4x 1000F(x) SFP Slot
• LED Indicators Per unit: PWR1(AC1/DC1), PWR2(AC2/DC2), Fault, Ring Master, Ring State
• LED Indicators per Port: Link/Active with Greed LED on the left, Speed on the right with highest speed(Amber), low speed(OFF)
• Alarm Contact: 1x relay output with current carrying capacity of 1A @ 24 VDC
• Digital Inputs: 1x isolated input from the electronics. +13 to +30V for state "1", -30 to +3V for state "0", Max. input current: 8mA
• Button: Multiple functions reset button
• Serial Console: 1x RS232 in RJ45 connector with console cable, 115.2Kbps, 8N1
• Storage: 1x USB 2.0 storage for firmware update, configuration backup, restore, boot up and syslog

Software Features

• Network Redundancy: RSTP, MSTP, G.8032 ERPSv2, Port Trunking with LACP
• Security: 802.1X, RADIUS, TACACS+, SSL, SSH
• Management: IPv4, IPv6, Web, Telnet, Serial Console, CLI, SNMP v1/v2c/v3, uPnP
• Diagnostics: RMON, SNMP Inform/Trap, Syslog, SMTP, Port Mirroring, LLDP
• Configuration: DHCP Server/Client, Relay Option 82, TFTP, USB
• Filter: 802.1Q VLAN, Q-in-Q, IGMP Snooping v1/v2/v3, IGMP Querier, Independent Vlan Learning
• Time Sync:NTP
• QoS:CoS, DSCP, WRR/SPQ Queuing, Storm Protection
• PoE:Powering Status, PoE Monitoring, Scheduling, PD Alive Check
• Industrial Profiles: Ethernet/IP, Modbus TCP

Power

• Operation Voltages:90~264VAC, 88~370VDC, 18~36VDC, 36~75VDC, redundant dual inputs
• Connection: AC socket, DC 4-pin terminal block
• Power Consumption: 30W
• Protection: Overload Current Protected, Reverse Polarity Protected

Mechanical

• Enclosure: Aluminum / Steel
• Protection Class: IP30
• Dimensions: 440x44x331 mm (WxHxD)
• Weight: 4.80 kg
• Mounting: Rack Mounting

Environmental

• Operating Temperature: Extended: -40°C ~ 85°C (-40°F ~ 185°F)
• Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
• Ambient Relative Humidity: 5 to 95%, (Non-Condensing)

Regulatory

• EMI: FCC Part 15 Subpart B Class A, CE EN 55032 Class A
• EMS: EC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field)
• Free Fall: IEC60068-2-32
• Shock: IEC60068-2-27
• Vibration: IEC60068-2-6
• Green: RoHS Compliant
• Certifications: UL 60950-1/62368 (Pending), IEC 61850-3, IEEE 1613

Application

• Power Substation networks
• Transportation Networks
• Pump station LAN networks
• Other Critical Infrastructure locations
