AM-3440 T1-E1 DACS and Access Multiplexer

AM-3440-A/B/C Access Multiplexer

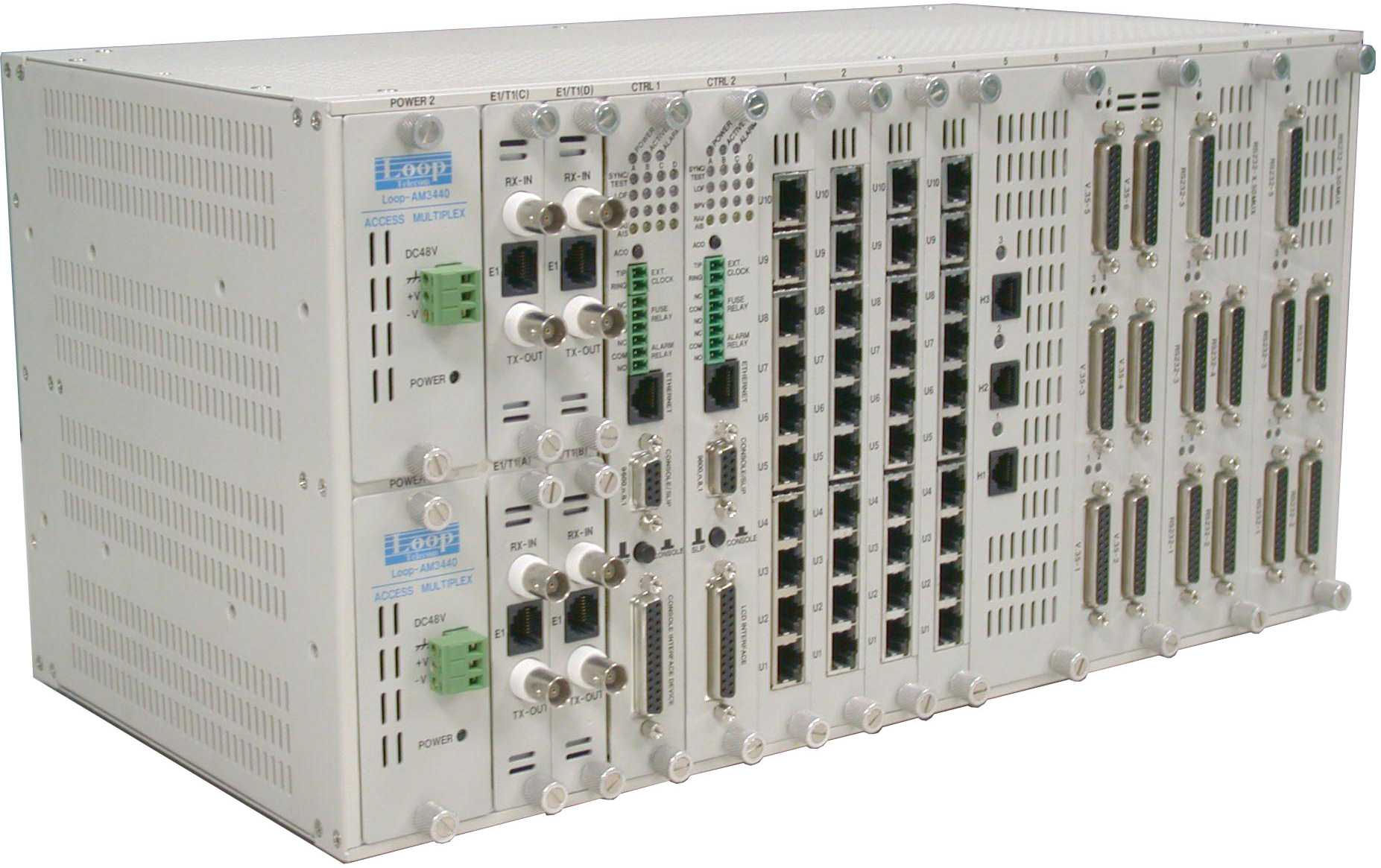

AM-3440 - A Front view



AM-3440 - B Front view

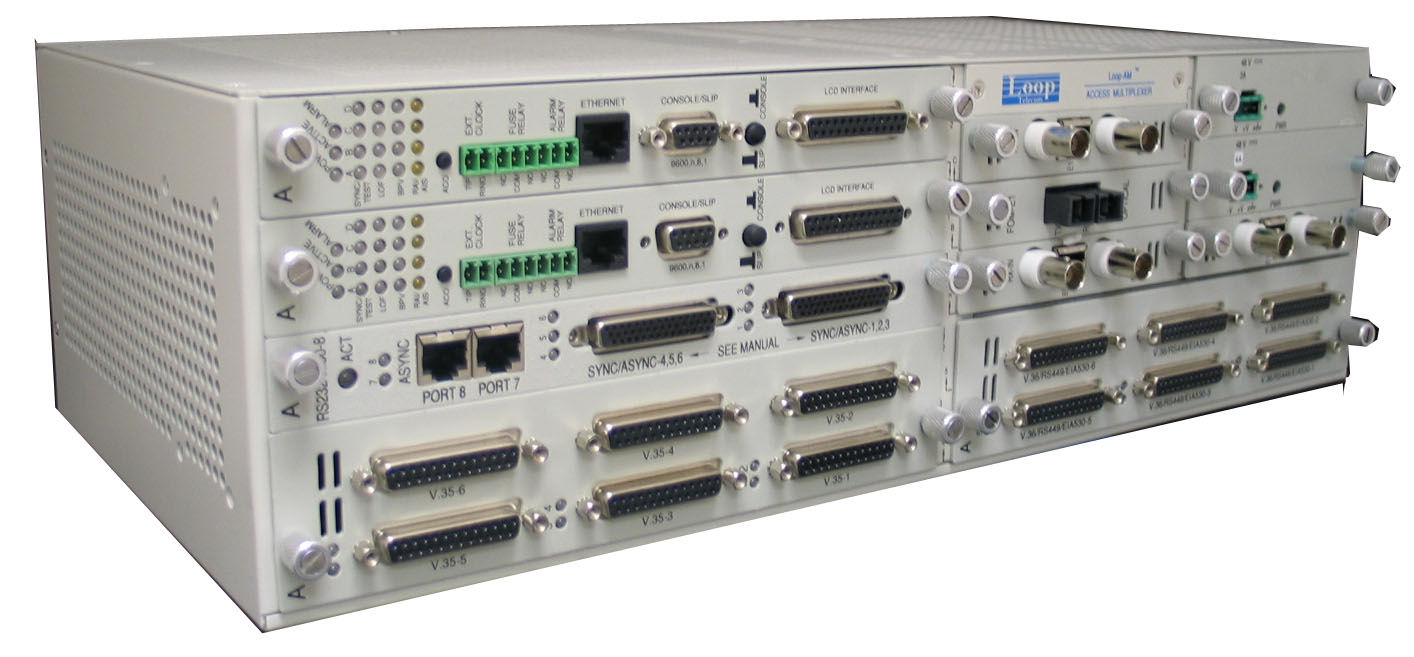

AM-3440 - C Front view
AM3440-A AM3440-B AM3440-C
Chassis (height) 5U 2.5U 3U
Number of Mini-slots 4 4 4
Number of Single-slots 12 3 5
Max T1 Channels 52 16 24
Cross-Connect
Backplane Capacity
128 Mbps 56 Mbps 72 Mbps


Description
Plug In Cards

Physical/Electrical
How to Order
Download a printable detailed data sheet
Application Notes

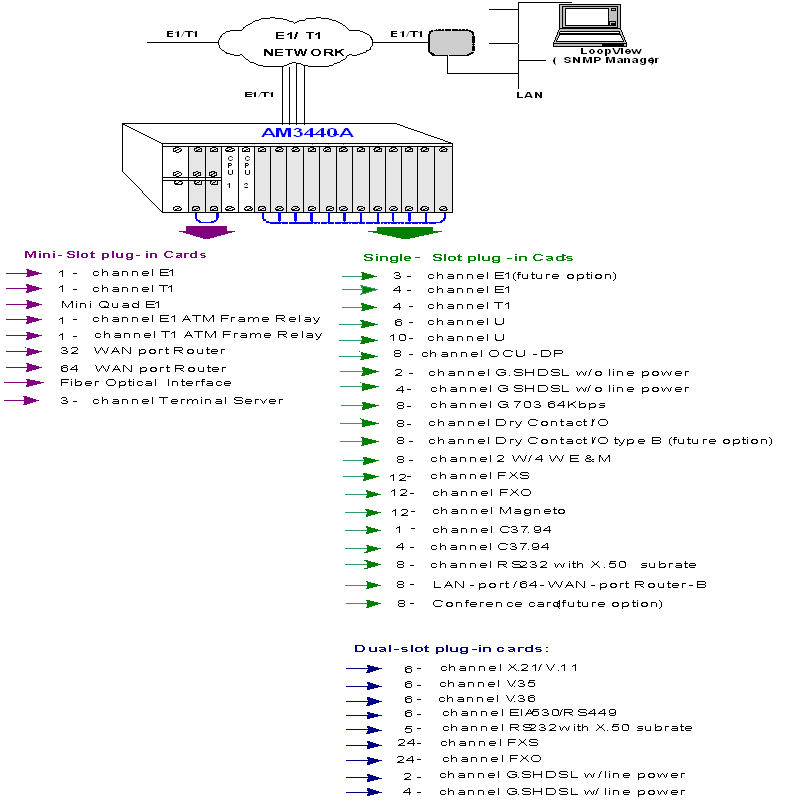

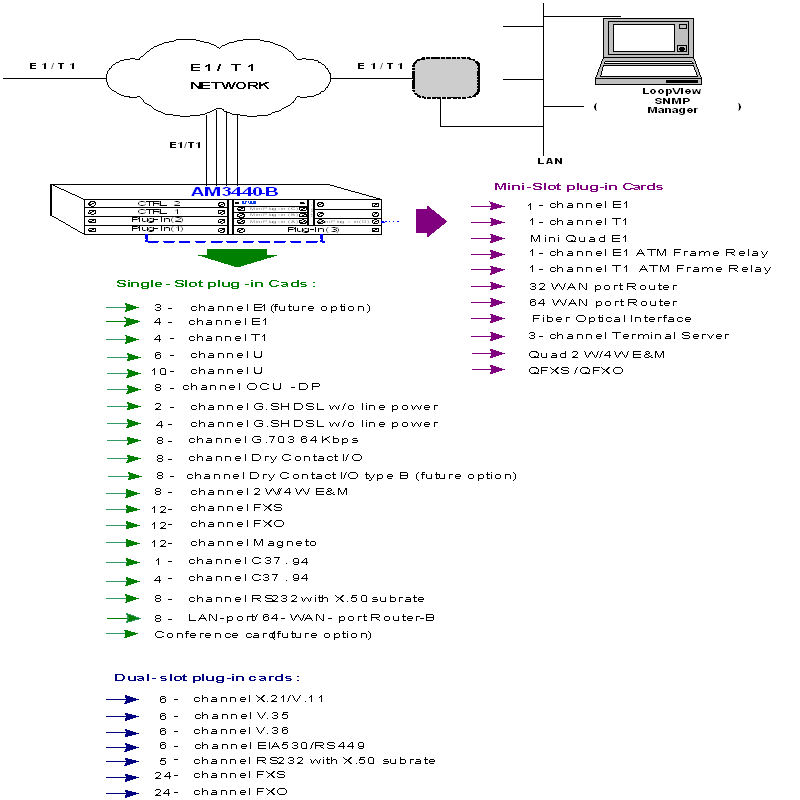

Applications



DESCRIPTION

The AM3440-A/B/C is an access DCS-MUX that can combine various digital access interfaces into E1 or T1 lines for convenient transport and switching. The AM3440 Access DCS-MUX provides access for a variety of interfaces, including mini Quad E1, Quad E1/T1, ATM/FR, 32 WAN port Router, 64 WAN port Router-A, Router-B, FOM, Terminal Server Card, G.SHDSL, G.703, U type, X.21, V.35, V36, EIA530/RS449, RS232, 8RS232, QEM, QFXO, QFXS, 8EM, 12FXS, 12FXO, 24FXS, 24FXO, and Magneto. These interfaces are compatible with other Loop products such as the Loop-H 3900 (MDSL), LoopH3300 and the Loop-U3500 (U). Using these products, a DTE interface can be extended over copper wire pairs. For as many Quad E1/T1 plug-in cards, each card can have as many as 124/96 time slots for the G.SHDSL, U, RS232, X.21, V.35, V.36 and EIA530/RS449 interfaces are then multiplexed to fill 4 E1/T1 line, with full flexibility of time slot interchange for all incoming lines. AM3440 also supports fiber optical plug-in module, which can be used to aggregate up to 4 E1 channels to single fiber optical interface to connect with other AM3440 or O9310.

AM3440-A has capacity for 12 single slots and 4 mini plug-in slots. AM3440-B has capacity for 3 single slots and 4 mini plug-in slots. AM3440-C has capacity for 5 single slots and 4 mini plug-in slots. All interface cards and controller cards can be used in AM3440-A/B/C, except for the G.SHDSL line power card, which is for the AM3440-A only and mini-slot QEM/QFXS/QFXO interface cards, which are for the AM3440-B and AM3440-C only.

This unit is a full cross-connect and can act as a mini DACS. This means that one or more of the WAN ports can be used as a Drop & Insert function with fractional E1/T1 lines, which can be muxed into a full E1/T1 line.

Redundancy is available in dual CPU controller and power supply options, making it an excellent fit for critical applications. Although the chassis does not contain and has no need for fan cooling, an external fan tray is available.

The AM3440 supports local control and diagnostics by using an external 2-line by 40-character LCD display and keypads, or by using a VT-100 terminal connected to the console port. The AM3440 also supports Ethernet, SLIP, Telnet, and SNMP, so that it can be controlled and diagnosed from remote locations as well. An in-band management channel with GUI is available. In addition to the LCD display, there are LED indications for all plug-in cards.


Avalible Plug-In Cards


Plug-in cards

AM3440-A

AM3440-B

AM3440-C

Mini-Slot

1-channel E1

1-channel T1

Mini Quad E1

1-channel E1 ATM/Frame Relay

1-channel T1 ATM/Frame Relay

32 WAN port Router

64 WAN port Router-A

Fiber optical interface

3-channel Terminal Server

Quad 2W/4W E&M

x

QFXS/QFXO

x

Echo Canceller

Single-Slot

3-channel E1 (future option)

TDM Over Ethernet

4-channel E1

4-channel T1

6-channel U

10-channel U

8-channel OCU-DP

2-channel G.SHDSL (2 pairs) w/o line power

4-channel G.SHDSL (1 pair) w/o line power

8-channel G.703 card at 64 Kbps data rate

8-channel Dry Contact I/O

8-channel Dry Contact I/O type B

8-channel 2W/4W E&M

12-channel FXS

12-channel FXO

12-channel Magneto

1-channel low speed optical (C37.94)

4-channel low speed optical (C37.94)

8-channel RS232 with X.50 subrate

8-channel Digital Bridge

8-LAN-port/ 64-WAN-port Router-B

8-LAN-Switch (By DCB)

Conference Card

Dual-Slot

6-channel X.21/V.11

6-channel V.35

6-channel V.36

6-channel EIA530/RS449 card

5-channel RS232 with X.50 subrate

24-channel FXS

24-channel FXO

2-channel G. SHDSL (2 pairs) with line power

x

x

4-channel G. SHDSL (1 pair) with line power

x

x

LOOP-AM3440 Access DCS-MUX Product Specifications

Network Line Interface - T1

Line Rate

1.544 Mbps  50 bps

Output Signal

DSX1

Line Code

AMI or B8ZS

Framing

D4/ESF (selectable)

Input Signal

ABAM cable length up to 655 feet

Connector

RJ48C


Network Line Interface - E1

Line Rate

2.048 Mbps  50 ppm

Framing

ITU G.704

Line Code

AMI or HDB3

Connector

BNC/RJ48C

Input Signal

ITU G.703 to -10dB

Electrical

75 ohm Coax/120 ohm twisted pair

Output Signal

ITU G.703

Jitter

ITU G.823


Network Line Interface - Mini 4E1

Line Rate

2.048 Mbps  50 ppm

Framing

ITU G.704

Line Code

AMI or HDB3

Connector

DB25S

Input Signal

ITU G.703 to -10dB

Electrical

75 ohm Coax/120 ohm twisted pair

Output Signal

ITU G.703

Jitter

ITU G.823


Network Line Interface - 4T1

Line Rate

1.544 Mbps  50 bps

Output Signal

DSX1

Line Code

AMI or B8ZS

Framing

D4/ESF (selectable)

Input Signal

ABAM cable length up to 655 feet

Connector

RJ48C


Network Line Interface - 3E1

Line Rate

2.048 Mbps  50 ppm

Framing

ITU G.704

Line Code

AMI or HDB3

Connector

BNC/RJ48C

Input Signal

ITU G.703 to -10dB

Electrical

75 ohm Coax/120 ohm twisted pair

Output Signal

ITU G.703

Jitter

ITU G.823


Network Line Interface - 4E1

Line Rate

2.048 Mbps  50 ppm

Framing

ITU G.704

Line Code

AMI or HDB3

Connector

BNC/RJ48C

Input Signal

ITU G.703 to -10dB

Electrical

75 ohm Coax/120 ohm twisted pair

Output Signal

ITU G.703

Jitter

ITU G.823



ATM Frame Relay Network Line Interface

Supporting Network Interworking (FRF.5) and service interworking (FRF.8).

Network Interface:

  • T1 Module:

T1 ATM UNI


FR (n x 64 Kbps, n=1 to 31)

  • E1 Module:

E1 ATM UNI


FR (n x 64 Kbps, n= 1 to 31)

Up to 31 logical FR channels can be concentrated/ de-concentrated to FR or ATM.

Service Ports:

  • T1/FT1 interface:

n x 64 Kbps, n=1 to 24

  • E1/FE1 interface:

n x 64 Kbps, n= 1 to 31

Supports HDLC to FR

Supports HDLC to ATM

Supporting FR to FR multiplexing.

Supports up to 128 DLCIs for total of 31 FR interfaces.

Supports up to 128 VCs.

Peak cell rate on DLCI basis.

Manufacturing disable/enable ATM scrambling for internal testing (E1 ATM only).

AAL0 and AAL5 are supported in the ATM adaptation layer.

Supports VBR service.

ITU FR management protocols are supported.

Flash memory software download through RS485.

Only the PVC type of ATM/FR service is supported.


Router Interface

Number of ports

2 LAN ports, Max. 32 WAN ports

Physical Interface

10 BaseT x 1, 10/100 BaseT x 1

Connector

RJ45

Routing protocol

RIP-I, RIP-II

Data Rates

Channelized N x 64 Kbps up to T1/E1 capacity

Supporting Protocols

TCP/IP, PPP, HDLC

Management

VT-100, SNMP

TDM Over Ethernet Interface
Download Detailed Data Sheet

Number of ports

Four Ethernet Ports for WAN or LAN port assignment

Physical Interface

Two combo Gigabit Ethernet(GbE) with 2 RJ45 and 2 SFP housing, Two 10/100/1000BaseT Ethernet

VLAN Support

Jumbo Frame reach up to 10K bytes, Max 255 VLAN of 4094, Q-in-Q, CoS, ToS

Bandwidth

Up to 4 x 2 M and support N x 64Kbps

Router-A Interface

Number of ports

2 LAN ports, Max. 64 WAN ports

Physical Interface

10/100 BaseT x 2

Connector

RJ45

Routing protocol

RIP-I, RIP-II

Data Rates

Channelized N x 64 Kbps up to 2 T1/E1 capacity

Supporting Protocols

PPP, HDLC, Frame Relay, and Cisco compatible HDLC


Router-B Interface

Up to 64 WAN ports

Each WAN port has data rate n x 64K bps, 1 n 32

The total bandwidth of all 64 WAN ports is up to 8Mbps

Layer-two protocol: HDLC, PPP (IPCP/BCP), Frame Relay, Cisco compatible HDLC, MLPPP (future)

Eight 10/100BaseT interfaces

Routing protocol: RIP-I, RIP-II, OSPF

QoS based on rate limit


Terminal Server

Connector

One DB-44 conversion cable to one DB-9 and two DB-25 connectors

Ports

One Async RS232 port, two Async/Sync RS232 ports.

The two Async/Sync ports can be configured independently as Asynchronous or Synchronous.

Data Rate

Async: 1.2kbps, 2.4kbps, 4.8kbps, 9.6kbps, 19.2kbps, 38.4kbps

Sync: 64 kbps

Layer 2 Protocol of RS232 Async

SLIP or raw data

Layer 2 Protocol of RS232 Sync

PPP

Terminal Server Function

Supports Telnet

Router Function

RIP-I, RIP-II, Static Route


Optical Fiber Interface Characteristics


Optical Module

Fiber Direction

Wavelength (nm)

Connector

Distance (km)

Power (dB)


SAA

Dual uni-directional

1310

SC (Subscriber Connector)

30

20


SBB

Dual uni-directional

1310

SC (Subscriber Connector)

50

30


SCC

Dual uni-directional

1310

FC (Fiber Connector)

30

20


SDD

Dual uni-directional

1550

SC (Subscriber Connector)

20

12


SEE

Dual uni-directional

1550

SC (Subscriber Connector)

100

40


SSM

Single bi-directional (master)

1310/1550

SC (Subscriber Connector)

30

20


SSS

Single bi-directional (slave)

1550/1310

SC (Subscriber Connector)

30

20

NOTE: Other fiber optical options available on special order




U Interface

Data Port

Up to twelve 10-port or 6-port DTU cards

Type

Full duplex with echo cancellation

Line Type

twisted pair 19-26 AWG

Line Rate

56, 64, 112 or 128 Kbps

Line Coding

2B1Q

Connector

RJ48C


G.SHDSL Line Interface

Number of port: 4 or 2

Line code: 16-TCPAM, full duplex with adaptive echo cancellation

Line rate for 4-channel G.SHDSL: n x 64Kbps (n= 3 to 31)

Line rate for 2-channel G.SHDSL: n x 64Kbps (n= 3 to 15)

Electrical: Unconditioned 19-26 AWG twisted pair

Connector: RJ45

Sealing current: Max. 20 MA source current

Clock

Source: From System, Line

Diagnostics Test

G.SHDSL Loopback: To-LINE, To-bus

BERT: QRSS




DTE Interface (X.21)

Data Port

Up to six 6-port DTE X.21 card

Data Rate

56 or 64 Kbps *n (n=1 - 24/31)

Connector

DB15


DTE Interface (V.35)

Data Port

Up to six 6-port DTE V.35 card

Data Rate

n x 64 Kbps, n = 1 to 32

Connector

DB25S (optional conversion cable DB25S to M34 connector)


DTE Interface (V.36)

Data Port

Up to six 6-port DTE V.36 card

Data Rate

n x 64 Kbps, n = 1 to 32

Connector

DB25S (optional conversion cable DB25S to DB37 connector)


DTE Interface (EIA530/RS449)

Data Port

Up to six 6-port EIA530 DTE card

Data Rate

n x 64 Kbps, n = 1 to 32

Connector

DB25S (optional conversion cable DB25S male to DB37 female connector for RS449)


DTE Interface (RS232-X.50 mux. 5-port)

Data Port

Up to six 5-port RS232 cards with X.50 plug-in, subrate, with subrate mux

MUX

(a) 5 independent RS232, or (b) 5 subrate RS232 (X.50) muxed to 64K

Data Rate

Mode (a) 5 independent RS232

1.2K, 2.4K, 4.8K, 9.6K, 19.2K, 38.4K, 48K , 64K SYNC

1.2K, 2.4K, 4.8K, 9.6K, 19.2K ASYNC


Mode (b) 5 mux together

1.2K, 2.4K, 4.8K, 9.6K SYNC

1.2K, 2.4K, 4.8K, 9.6K ASYNC


NOTE: Mode (a) and mode (b) cannot be mixed.

Connector

DB25S


DTE Interface (RS232-X.50 mux. 8-port)

Data Port

Up to twelve 8-port RS232 cards

MUX

Maximum 5 subrate port per 64K bps

Data Rate

Asynchronous

Mux mode

0.6K, 1.2K, 2.4K, 4.8K, 9.6K

Independent mode

0.6K, 1.2K, 2.4K, 4.8K, 9.6K, 19.2K

Synchronous

Mux mode

0.6K, 1.2K, 2.4K, 4.8K, 9.6K

Independent mode

0.6K, 1.2K, 2.4K, 4.8K, 9.6K, 19.2K, 38.4K, 48K, 64K




Card Type

Port Number

1

2

3

4

5

6

7

8

Eight RJ48

Async

Async

Async

Async

Async

Async

Async

Async










Two DB44 + Two RJ48

Async/Sync

Async/Sync

Async

Async/Sync

Async/Sync

Async

Async

Async

Connector

Eight RJ48 (port 1 to port 8)

DB44 (port1,port2,port3), DB44 (port4,port5,port6), RJ48 (port7) and RJ48(port8)

Conversion Cable

A three-into-one conversion cable adapts the DB44 connector to 3 connecters (one DB9S and two DB25S)

Electrical

RS232 Interface, DCE


Co-directional Interface Card

Interface

ITU G.703 64 Kbps co-directional interface

Connector

120ohm, RJ48

Line Distance

Up to 500 meters

Loopack

DTE Payload Loopback, Local Loopback


C37.94 Interface Card

Source

LED

Wavelength

820nm 1.7Km reach

Connector

ST

Optical Budget

50 Mircon core/9.6 db

62.5 Mircon core/ 15db


Dry Contact Interface Card

Inputs -

Outputs -

8-channel

2-port per card, 4-pair per port

8-channel

8-pair per card

Connector

RJ45

Connector

Screw type

Internal Resistance

1 K

Initial Insulation Resistance

Min. 100M ohm (at 500 Vdc)

Activation Current

3 ma

Max. Current

5A

Deactivation Current

1.5 ma

Max. Voltage

100 Vdc, 250 Vac

Allowable Current

4 ma

Short-circuit Current

5A


Dry Contact Type B Interface Card

Inputs -

Outputs -

8-channel

2-port per card, 4-pair per port

8-channel

8-pair per card

Connector

RJ45

Connector

Screw type

Internal Resistance

100 K

Initial Insulation Resistance

Min. 1000M ohm (at 500 Vdc)

Activation Current

3 ma

Max. Current

2A

Deactivation Current

1.5 ma

Max. Voltage

220 Vdc, 250 Vac

Allowable Current

4 ma




Voice Card (Q2EM, Q4EM)

Connector

DB44 connector with external DB44 to 4 RJ45 connector cable

Alarm Conditioning

CGA busy after 2.5 seconds of LOS, LOF

Encoding

A-law or -law, user selectable per card

Impedance

Balanced 600or 900

Longitudinal Rejection

55 dB

Longitudinal Max

2.5 volts peak AC

Longitudinal Balance

> 63dB

Gain Adjustment

(all port settings)

Normal mode

0, -3, -6 or +7 dB for transmit (D/A) gain

0, -3, -6 or +10 dB for receive (A/D) gain

Signal/Distortion

> 46dB with 1004 Hz, 0dBm input

Frequency Response

- 0.25 to -1 dB from 300 to 3400 Hz

Idle Channel Noise

< 20 dBrnC0

Signaling

Type I, II, III, IV, V and TO (Transmit Only) signaling options

Side: A or B (manufacture option)

Wire: 2 wire or 4 wire (manufacture option)

In-band signaling tones

transparent

Modems

Full compatibility with V.90 modems

Operational Temp.

0°C to +55°C

Relative Humidity

0% to 95%


Voice Card (8EM)

Connector

Eight RJ45

Alarm Conditioning

CGA busy after 2.5 seconds of LOS, LOF

Encoding

A-law or -law, user selectable together for all

Impedance

Balanced 600 or 900 ohms

Longitudinal Conversion Loss

> 46dB

Gain Adjustment (Per-port setting)

-10 to +7 dB / 0.1dB step for transmit (D/A) gain

-10 to +14 dB / 0.1dB step for receive (A/D) gain

I/O voice power range

A/D digital input level: -66 dBm (0.00039 Vrms) ~ + 3 dBm (1.09 Vrms)

D/A analog output level: -66 dBm (0.00039 Vrms) ~ + 7 dBm (1.74 Vrms)

Signal/Distortion

> 25dB with 1004 Hz, 0dBm input

Frequency Response

- 0.25 to -1 dB from 300 to 3400 Hz

Carrier connection

Side A ( exchange side) and Side B (carrier side) setup by side switch

wire mode

2 wire and 4 wire (programmable)

Signaling

Type 1, Type 2, Type 3, Type 4, and Type 5, Transmit only (programmable)

All in-band signaling tones are carried transparently by the digitizing process.

Customer is responsible for in-band signaling compatibility between a telephone and a switch, or between a PBX and a switch.


OCUDP Interface Card

Ports

Eight Ports for each card

Line Status Indicator

Per Port 1 dual color LED; Red for LOS, Green for SYNC

Network Connector

RJ48S

Electrical network connection

Tip/Ring and Tip1/Ring1

Transmit Source Impedance

135 Ohms +/- 20%

Receive Input Impedance

135 Ohms +/- 20%

Receiver Sensitivity/ Dynamic Range

0 to 43 dB loop loss at 72K & 56K

0 to 34 all other rates Automatic line equalization


Voice Card 12 MAG (Magneto)

Connector

Twelve RJ11

Alarm Conditioning

CGA busy after 2.5 seconds of LOS, LOF

Encoding

A-law or -law, user selectable together for all

Impedance

Balanced 600 or magneto telephone impedance match

Longitudinal Conversion Loss

> 46dB

Gain Adjustment

-21 to +10 dB / 0.1dB step transmit & receive

I/O voice power range

A/D digital input level: -66 dBm (0.00039 Vrms) ~ + 3 dBm (1.09 Vrms)

D/A analog output level: -66 dBm (0.00039 Vrms) ~ + 7 dBm (1.74 Vrms)

Signal/ Distortion

> 25dB with 1004 Hz, 0dBm input

Frequency Response

- 0.25 to -1 dB from 300 to 3400 Hz, coincide with ITU-T G.712

Idle Channel Noise

Max. –65 dBm0p

Min Detectable Ringing Voltage

16 Vrms

Ringing Detectable Across

L1 and L2 (Tip and Ring), L1 and GND (Tip and GND)

Ringing Generation

Voltage: 76 Vrms (sine wave)

Frequency: 20Hz

Cadence: 1 sec on 2 sec off, or 2 sec on 4 sec off

Ringing Send Across

L1 and L2 (Tip and Ring), L1 and GND (Tip and GND)

Signaling

Magneto MRD(Ringing across Tip and Ring or Tip and Ground)

Signaling Bit A,B,C,D

Programable

Signaling is carried transparently by the digitizing process.

Use Magneto card default setting for communications between magneto telephones

Use Magneto card PLAR mode setting for communications between a magneto telephone and a regular telephone

Voice Card (QFXS, QFXO)

Connector

Four RJ11

Alarm Conditioning

CGA busy after 2.5 seconds of LOS, LOF

Encoding

A-law or -law, user selectable per card

AC impedance

Balanced 600 or 900 ohms, user selectable per card

Longitudinal Rejection

55 dB

Loss Adjustment

0, 3, 6, or 9 dB transmit & receive, user selectable per card

Signal/ Distortion

> 46dB with 1004 Hz, 0dBm input

Frequency Response

- 0.25 to -1 dB from 300 to 3400 Hz

FXS Loop Feed

Nominal -48 Vdc with 25mA current limit per port

FXS Ringing

1 REN at 5000 meters per port

20 Hz, other frequencies (manufacture option): 16.7 Hz, 25 Hz, 50 Hz

82 Vrms (sine wave)

User selectable ring cadence per card for PLAR function: 2 sec on 4 sec off, or 1 sec on 2 sec off

FXO Ringing REN

Ringing REN

0.5B (AC)

Detectable Ringing

25 Vrms

Loop Resistance

1800 

DC impedance (ON-HOOK)

> 1M 

DC impedance (OFF-HOOK)

235  @ 25mA feed

90  @ 100mA feed

Metering Pulse

12 KHz/16 KHz

  • Power: 10dBm

  • Sensitivity: -18dBm to -45dBm (manufacture option)

Signaling

Loop Start, GND-Start, Metering Pulse (12 KHz, 16 KHz), DTMF, Dialing Pulse, PLAR,

Battery Reverse (support Line Reverse Signaling for Billing)

In-band signaling tones

transparent

Operational Temp.

0°C to +55°C

Relative Humidity

0% to 95%


Voice Card (12FXS,12FXO,24FXS,24FXO)

Connector

Twelve RJ11

Alarm Conditioning

CGA busy after 2.5 seconds of LOS, LOF

Encoding

A-law or -law, user selectable together for all

AC Impedance

Balanced 600 or 900 ohms (selectable together for all)

Longitudinal Conversion Loss

> 46dB

Cross talk measure

Max -70dBm0

Gain Adjustment

-21 to +10 dB / 0.1dB step transmit & receive

Signal/ Distortion

> 25dB with 1004 Hz, 0dBm input

Frequency Response

- 0.25 to -1 dB from 300 to 3400 Hz, coincide with ITU-T G.712

Idle Channel Noise

Max. –65 dBm0p

Variation of Gain

±0.5dB

FXO

Ringing REN

0.5B (AC)

Detectable Ringing

25 Vrms


Loop Resistance

1800 Ω


DC Impedance (ON-HOOK)

> 1M Ω


DC Impedance (OFF-HOOK)

235 Ω@ 25 mA feed



90 Ω@ 100 mA feed

FXS Loop Feed

Normal -48 Vdc with 25mA current limit

FXS signalling

Normal / Automatic Ringdown

FXS Ringing

1 REN at 5K meters per port


16.5Hz, 20Hz, 25Hz, 50Hz, user selectable for all ports


38 to 85 Vrms (sine wave), 76 Vrms for default Ring Voltage


2 sec on 4 sec off, or 1 sec on 2 sec off optional for PLAR

Signaling

Loop Start, DTMF, pulse, PLAR, Battery Reverse

Optional Signaling (for special order)

Ground Start, Metering pulse (12 KHz, 16 KHz), and P( in PLAR mode, PLAR signalling bits are programmable.

Signaling Bit A,B,C,D

Programable bit

  • All in-band signaling tones are carried transparently by the digitizing process.

  • Customer is responsible for in-band signaling compatibility between a telephone and a switch, or between a PBX and a switch.

Clock Source

Internal, E1/T1 Line, External (E1/T1/2048 KHz)


Alarm Relay

Alarm Relay, Fuse alarm, and performance alarm


System Configuration Parameters

Active Configuration, Stored Configuration, and Default Configuration (Stored in Non-volatile Memory)


Supervisor

RS232, VT100 - front panel

10 Base-T, Ethernet, SNMP - front panel

CONSOLE/SLIP - front panel

In-band 64 Kbps


Performance Monitor

Performance Registers

Last 24 hours performance in 15 minute intervals and last 7 days in 24 hour summaries

Separate Registers

Network, user, and remote site

Performance Reports

Reports include E1 Bursty Errored Second, Severe Errored Second, Degraded Minutes, and Controlled Slip Second. Also available in Statistics (%)

Alarm Queue

Containing 40 alarm records which record the latest alarm type, location, and date & time

Threshold

Bursty Seconds, Severely Errored Second, Degraded Minutes


Diagnostics Test Line

Loopback

E1/T1 interface (Line Loopback, Payload Loopback, Local Loopback)

U interface (Local Loopback, Payload Loopback)

Test Pattern

E1/T1 interface (215-1 PRBS, 3-in-24, 1-in-8, 2-in-8, 1:1 patterns)

U/DTE interface (211-1 BERT)


Front Panel

LED

1 per U/V.35-interface, ACO, Power, SYNC/TEST, LOF, BPV, RAI/AIS


Physical/Electrical

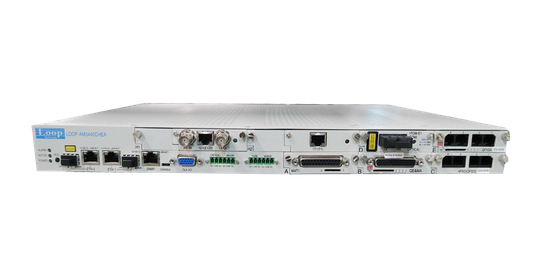

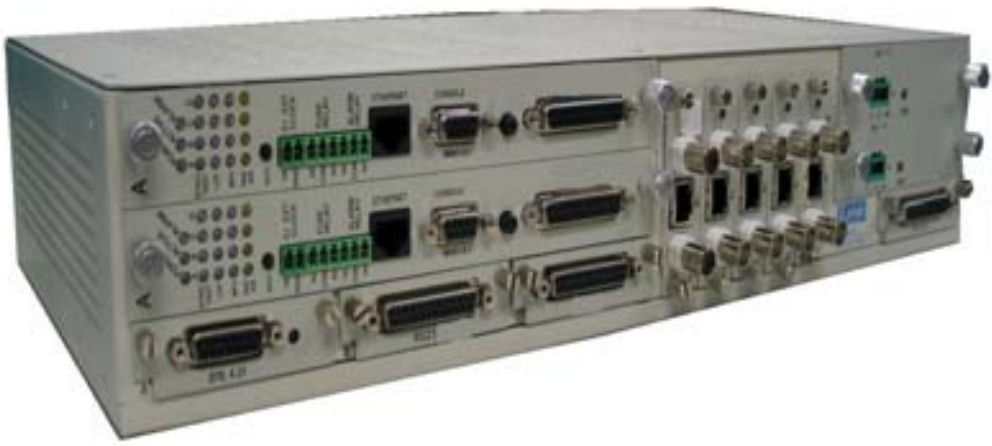

AM3440-A

AM3440-B

AM3440-C

Dimensions

432.4 x 220 x 223.5 mm (WHD)

438 x 110 x 224 mm (WHD)

438 x 132 x 224 mm (WHD)

Power

Single/ Dual -48 Vdc: -36 to -75 Vdc, 100 Watts max.

Single/ Dual -48 Vdc: -36 to -75 Vdc, 150 Watts max.

Single/ Dual -24 Vdc: -18 to -36 Vdc, 150 Watts max

Single/ Dual -125 Vdc: -40 to -150 Vdc, 100 Watts max

Single/ Dual -48 Vdc: -36 to -75 Vdc, 100 Watts max.

Single AC: 100 to 240 Vac, 50/60 Hz

Single/ Dual -48 Vdc: -36 to -75 Vdc, 100 Watts max.

Single AC: 100 to 240 Vac, 50/60 Hz

Temperature

0-50°C

0-50°C

0-50°C

Humidity

0-95%RH (non-condensing)

0-95%RH (non-condensing)

0-95%RH (non-condensing)

Mounting

Desk-top stackable, 19” /23” rack mountable

Desk-top stackable, 19” /23” rack mountable

Desk-top stackable, 19” /23” rack mountable

Line Power Supply

Available only with DC power for G.SHDSL card only

N/A

N/A

Power Consumption

Max 110 Watts

Max 45 Watts

Max 57 Watts


Certification

AM3440-A

AM3440-B

AM3440-C

EN55022 Class A, EN50024, FCC Part 15 Class A, FCC Part 68, CS-03, IEC60950, UL60950, IEEE-1613

EN55022 Class A, EN50024, EN300 386, IEEE-1613

FCC Part 15 Class A, FCC Part 68, CS-03, IEC60950-1, EN60950-1

EN55022 Class A, EN50024, EN300 386, FCC Part 15 Class A, IEC60950-1, EN60950-1, IEEE-1613


Compliance

ITU G.703, G.704, G.706, G.732, G.736, G.823, G.826, G.711, G.775, O.151, V.11, V.28, V.54, IEEE-1613


Clock Source

Alarm Relay

System Configuration Parameters

Performance Monitor


Application Notes

These application notes cover many aspects of Integrated Access Multiplexer applications. While some are specific to particular products, many are applicable to most any of our channel bank, IAD, or TDM aggregation products. The principles are the same.

We invest a great deal of time and effort creating tools like these to assist our customers, so most are available only to DCB customers. If you are one of our customers and don't have the required customer access password, please contact your sales representative to obtain your free password.

AM3440 E&M Operational Summary
The actual operation of E&M signaling leads is poorly understood by many technicians and engineers. This is a summary of how the AM3440 E&M interfaces operate for Type 1,2,3,4, and 5 E&M configurations. Included are RJ45 E&M Pinouts and descriptions for A-side and B-side installations. Download the note in PDF format.

Propagation Delay Through An IAM.
A short description of the propagation delays encountered with integrated access multiplexers. Download the note in PDF format.

Configuring Loop C37.94 cards for the AM3440 and O-9500 IAD
The Loop C37.94 card is available with a single duplex port or four duplex ports. This paper demonstrates how to configure mode, bandwidth, ALS, and mapping features. Download the note in PDF format.

Configuring Loop IADs for RADIUS and syslog
The Loop AM3440, IP6510-LN, and V4150 incorporate RADIUS authentication and authorization, as well as logging capabilities. This paper demonstrates how to configure those features. Download the note in PDF format.

Async Serial Multi-Vendor Channel Bank Compability
An analysis of how to achieve asynchronous serial port compability between different vendor's channel banks. Download the note in PDF format.

Voice Pass-through with Loop Products
A question about pass through voice DS-0 circuits was recently raised. Loop product mapping provides a choice of "d" for data or "v" for voice to be designated for each DS-0. FXS, FXO and E&M circuits must all be set to "v" for voice. If a DS-0 carrying voice passes in and out of a T1 as a pass through, must this be set to "v" for voice? The answer is "yes". See this paper for details on setting a pass through DS-0 to "v" for voice and for verifying the setting. Download the note in PDF format.

Mapping between O-9500 T3-M13 and E&M Interfaces Detailed instructions on the procedure for mapping an E&M interface to a T3-M13 interface on the Loop O9500 integrated ulti-services access platform.

Singaling Bits Definitions on Voice Modules
A short description of the issues encountered with T1 or E1 CAS (channel associated signaling) bits. Download the note in PDF format.

1:N Protection Quick Guide Quick Guide covering 1:N Protection using the V4150 Relay Protection Shelf. Download the note in PDF format.

Application notes specific to the Loop AM-3440, its configuration, and interface cards. Note that many of these interface and tributary cards are used on other products as well:

Configuring ULSR T1s and Clocking with External Stratum 1 Clocking Sources
This is an example procedure used to configure ULSR T1s and clocking from external Stratum 1 clocking sources with the AM3440. Download the note in PDF format.

AM3440 Alarm Reporting
AM3440 alarms can be reported via the Alarm Relay contacts located on the controller card or as SNMP messages output via the Ethernet Port on the controller card. Here's how to do it.Download the note in PDF format.

Upgrading AM3440 firmware using Map34
Upgrading AM3440 firmware can be a daunting task the first time. Using DCB's Map34 software makes it much less intimidating. This paper by one of our engineers demonstrates how to accomplish the upgrade by following step-by-step instructions.Download the note in PDF format.

Configuring the AM3440 for RADIUS and syslog
Some Loop Telecom products incorporate RADIUS authentication and authorization, as well as logging capabilities. This paper demonstrates how to configure those features on the AM3440, IP6510-LN, and V4150 models. Download the note in PDF format.

AM3440 Router Card Comparision Guide
This is a short note detailing the similarities and differences between the Loop RT, RTA, and RTB router cards used in the AM3440. Download the note in PDF format.

Mapping - A Quick Start Guide
This is a "cheat sheet" with information that helps you get started mapping the AM-3440. These DACS have lots of flexibility and these hints will save you time getting them configured. Download the note in PDF format.

AM3440 Firmware Change affecting Login credentials
This is a short discussing an AM3440 firmware change starting with controller version 8.24.x. Login now now has two levels with associated passwords. Download the note in PDF format.

Replacing a redundant controller.
If an AM3440 with redundant controllers has a loss of one of the controllers, it is a simple procedure to replace the failed controller. Just install the new controller in place of the failed controller in a hot swap procedure. No need to power down the system to replace a failed controller. This note discusses how to manage differing firmware versions in this situation.Downlaoad the note in PDF format.

Configuring the AM3440 RT card
This is a short example procedure showing how to configure the AM3440 RT card for bridge mode. Download the note in PDF format.

Configuring the Router B Card with all 8 ports as a switch - How-To
This is an example procedure showing how to configure the AM3440 RTB card to use all 8 ports as an ethernet switch. Download the note in PDF format.

Configuring the RTA or RTB Router Cards for bridging. A simple, quick How-To guide

This is a short example procedure showing how to configure the AM3440 Router B card with all 8 ports in switch mode. Download the note in PDF format.

Configuring the RTA Router Cards for static Routing with multiple route destinations. A simple, quick How-To guide on configuring three remote destination routes.

Configuring the AM3440 RT Card for Bridge Mode - How-To
This is a short example procedure showing how to configure the AM3440 RT card for bridge mode. Download the note in PDF format.

Configuring the AM3440 Router B Card for Combined Bridge and Router Mode - How-To
This is a short example procedure showing how to configure the AM3440 Router B card for combined route and bridge mode. Download the note in PDF format.

Mapping - AM-3440 to AM-3440 Sample maping and Loopback Test using FOM Cards
This is an example procedure mapping with information that helps you get started mapping the AM-3440. This exmaple illustrates mapping and a loop back test to verify correct operation. These DACS have lots of flexibility and these hints will save you time getting them configured. Download the note in PDF format.

AM3440 Firmware Updating for Dual Controller Installations
The procedure for updating firmware in an AM-3440 having dual controller cards may be daunting. This paper details a straight forward method for that procedure. Download the note in PDF format.

Configuring the AM3440 T1 Loopbacks
A "cheat sheet" illustrates how to set up the T1 ports to allow the local and remote loopback commands to function. Download the note in PDF format.

Configuring the AM3440 Terminal server Card
A "cheat sheet" illustrating how to configure the Terminal Server card for access via a remote AM3440 router card. Download the note in PDF format.

Configuring the AM3440 for In Band management using Point to Point and Multiple Locations
A "cheat sheet" illustrating how to configure the in-band management for the AM3440. Download the note in PDF format.

Configuring the 8DBRA card for the AM3440 and V4200.
A "cheat sheet" illustrating how to configure the 8DBRA card. These cards are often used for utility customer SCADA networking by oversampling 9600bps asynchronous data. Download the note in PDF format.

Configuring the 8DBRA card to present RS232 data on a single incoming DS0 duplicated on 3 of the RS232 ports on a local 8DBRA card.
This application is typically used for SCADA where multiple devices are polled from the same host port and the data arrives for all three devices over a single DS0. Download the note in PDF format.

Applications








How to Order

Please phone a DCB product specialist at 800-432-2638 for pricing and configuration options.


Data Comm for Business Inc.
2949 County Road 1000 E
Dewey, Il 61840
Voice: 217-897-6600
Toll Free: 800-4-DCB-NET
Toll Free: 800-432-2638
Email: Contact Page
Web: www.dcbnet.com
Fax: 217-897-8023
All DCB web pages copyright ©1995--2017 Data Comm for Business, All rights reserved.
EtherPath®, EtherSeries®, EtherPoll®, EtherBridge® and EtherModem® are Registered Trademarks of Data Comm for Business, Inc.
