IP6600 - Network Router - Asynchronous Router
IP6690 - High Performance Async Router w/V.92 Modem


(The IP6600 is compatible with most GPRS/GSM/CDMA/EDGE/EVDO and other wireless devices)


Features
Description
Specifications How To Order

General
Indicators (front panel)
Controls
Physical/Electrical

Download the IP-6600, IP-9600 Manual

Download the IP-6690 Manual

Application Notes


FEATURES
  • Industrial rated  -40 to +70 C
  • Two ethernet ports: 10BaseT, 10/100BaseT
  • Two asynchronous serial RS-232 ports (other options)
  • Each port is independent, route between any ports
  • Easy to setup and maintain
    Ideal mobile router, or modem and router combination
  • Web browser configuration and management
  • Ideal for GPRS, GSM, CDMA, SOHO, CDPD and other wireless connections
  • Extensive statistics logging and diagnostic tools
  • NAT, port forwarding, port/address filtering
  • Extensive firewall and security features in an IP router
  • Ideal as a drop-in Firewall Appliance
  • Authentication with PAP, CHAP, MSCHAP(1&2)
  • Dedicated link, dial-out, dial-in, or dial-on-demand combinations, PPP, PPPoE.
  • Integrates well with Airlink, Qualcomm, and other modems
  • Link LAN to LAN or remote computer dial-in
  • UDP terminal server EtherPoll functionality on one port
  • Mobile Backup-Link Configuration Option
  • DHCP server or client
  • Compact size, Stand-alone or Rack Mounting
  • Popular Options:
    • 12, 24, -48, 125 VDC, or 240VAC power supply
    • Internal V.92 Modem
    • APS-01 remote equipment reboot option
    • Rack Mounting kits
Asynchronous Router Picture - Two WAN Ports

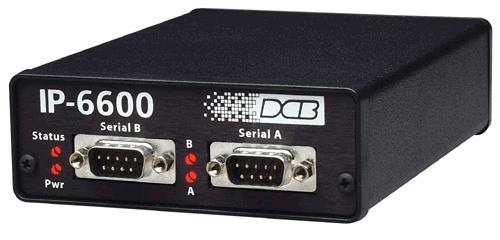

IP-6600 Front View

Asynchronous Router Picture - WAN Port & Modem
IP-6690 Front View

Asynchronous Router Picture - WAN Port & Modem
IP-6690 Rear View


DESCRIPTION

The IP-6600 is an industrial rated asynchronous router featuring two serial ports and two ethernet LAN ports.

Since each ethernet and asynchronous router serial port is independent, the router has many uses in addition to the commonly used dial-in, dial-out and asynchronous LAN connection modes. It is commonly used as an easily configured stand-alone firewall router using NAT, port filtering, and address filtering.

The two RS232 serial ports operate at asynchronous speeds as low as 300 bps and as high as 230 Kbps.   They may be used to link two separate remote sites with leased or dial connections, one port used for an ISP connection and the second for dial-in, each used for combined dial-in and dial-on-demand dial-out, or other convenient combinations.

The two ethernet LAN connections (one operating at 10BaseT and the other auto-switching at 10 or 100BaseT) may be configured on different LAN segments for DMZ routing, firewalling and port/address filtering, or used as a DSL or Cable modem adjunct for Network Address Translation (NAT) or PPPoE.

The IP-6600 works well with DSL, cable or dial modems, leased line modems, CDPD or GSM modems, wireless links, satellite modems, the DCB DA-56 DSU, or even simple line drivers. The IP-6600 is easily configured as a back-up router or fail-over router by adding a second link while configuring interfaces.

Flexibility is the key.  Routing may be configured between any combination of interfaces with full-featured port or address filtering, port forwarding, and NAT.   The same port may even be configured for dial-out using dial-on-demand while accepting dial-in calls from portable computer users.   It’s easily configured for “stay-online” dial connections.

Firewall Router founctions are easily implemented with the port-filter firewall configuration, port redirect, and NAT router configuration. These make it an ideal small firewall hardware device or NAT router.
Configuration is quick and easy using a web browser.  The router uses three different configurations: a stored configuration, a working (running) configuration, and a pending configuration.  This method allows temporary configuration changes, testing, and remote configuration changes even via a PPP link on the router.  Configurations may be saved on a PC for later use, and the config file is editable on a PC.

On-board tools make network monitoring and troubleshooting convenient. Tools include a packet header sniffer, traceroute, ping, and dial tools (force a dial, force a disconnect). Logging may be configured as standard or with extreme details showing negotiations, modem responses, etc. .

One serial port may be used as a UDP terminal server. This functionality is compatible with DCB's EtherPoll products and is ideal for remote industrial installations.

The APS-01 remote AC power control easily integrates with the IP-6600. Remotely power up, down, and reboot remote equipment using the IP-6600 management web interface by plugging the APS-01 into the second serial port.

The IP-6600 is straight-forward, easy to configure and maintain.  The IP-6600 has the features you want without  the complexity.




SPECIFICATIONS

General

Two asynchronous RS-232 serial ports:


Two ethernet ports :


Protocol Features


Approvals:


Indicators


Controls   (DIP switch:)

Physical/Electrical

Environmental


Application Notes

Automated Dial-up Router and Bridge Connections Using Windows workstations
An application note that details one common method of automating the use of IP-6600 routers and ET-6600 bridges to dial multiple remote locations on a scheduled or automated basis.
IP-6600 Router Configuration Quickstart-- Configuring a Dial-Up Backup Link for a Broadband Connection
An application note that details the steps of configuring a pair of IP-6600 routers to perform automatic dial-up to back up a remote connection using dial modems. Includes a sample configuration for bench testing.

Standard Features
  • Dial-in Router
  • Dial-on-Demand
  • Dial-out Router
  • GSM/GPRS/CDPD Router
  • Firewall Router
  • NAT Routing
  • DHCP Server
  • Persistant connections

Common Applications
  • Remote Industrial Control  Communications
  • SCADA WAN Interface
  • Remote Management via ethernet Access
  • Wireless Modem Router
  • DGPS Information Routing
  • DOD for Remote SNMP Reporting and Management
  • Automated Remote Power Meter Reading
  • Remote Location VOIP Connections
