9502200 HD44 to Triple RJ45 Adapter for Loop 8RS232DB



Features

  • Apapts HD44 connector to 3 - RJ45 serial ports
  • Easier cable connections
  • No cable pigtails requried
  • Synchronous operation on ports 1, 2, 4 and 5
  • Asynchronous operation on all ports
  • Compact Size

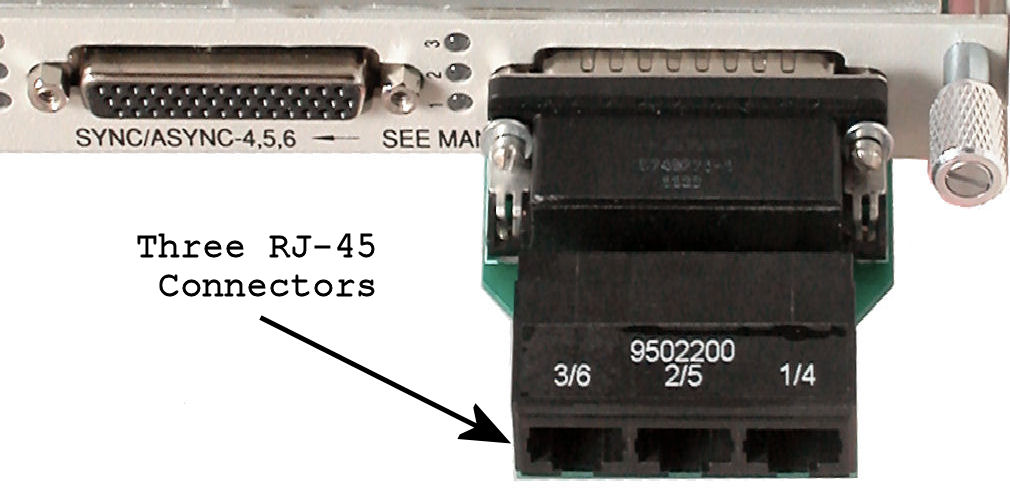

8RS232DB card with 9502200

Description
Specifications
How To Order
General
Pin Out Wiring
Application Notes and Manual Download



DESCRIPTION

It is much easier to connect either asynchronous or synchronous devices to the Loop Telecom 8RS232DB card using the DCB 9502200.

With the 9502200, use line cords and RJ45 to DE-9 and DB-25 adapters instead of expensive and bulky HD44 cables.

Two of the 3 ports on each 9502200 card, port 1 and 2 (or 4 and 5, depending on which DB44 is being used) can be synchronous or asynchronous. Port 3 and 6 are asynchronous only.


SPECIFICATIONS

General

Connectors: One HD44 male connector to three RJ45 connectors on a circuit board with screws to fasten to the Loop AM3440 8RS232DB card.


RJ45 Connector Pin Outs

Pin # Description Direction/Source Port 1, 2, 4 & 5
Synchronous or
Asynchronous
Ports 3 & 6
Async only
1 Signal Ground IN / OUT YES YES
2 Request To Send IN - DTE YES YES
3 Receive Data OUT - DCE YES YES
4 Carrier Detect OUT - DCE YES YES
5 Transmit Data IN - DTE YES YES
6 Transmit Clock OUT - DCE YES NO
7 Receive Clock OUT - DCE YES NO
8 Clear to Send OUT - DCE YES YES




APPLICATIONS

How it works

Simply plug one adapter to each HD-44 connector on the interface card and secure with locking screws. RJ-45 cables plug into the adapters.

This data sheet is the manual for this product. Click here to download a PDF copy of this data sheet.


Questions? Phone us toll free at 800-432-2638

Due to the nature of this product,
we prefer that you phone us and discuss your application prior to ordering this product.

Item Number Description Price Buy Now!
9502200 HD44 to RJ45 Adapter for Loop 8RS232DB Interface (Sold individually, you may need two per card) $ 41 Qty:
